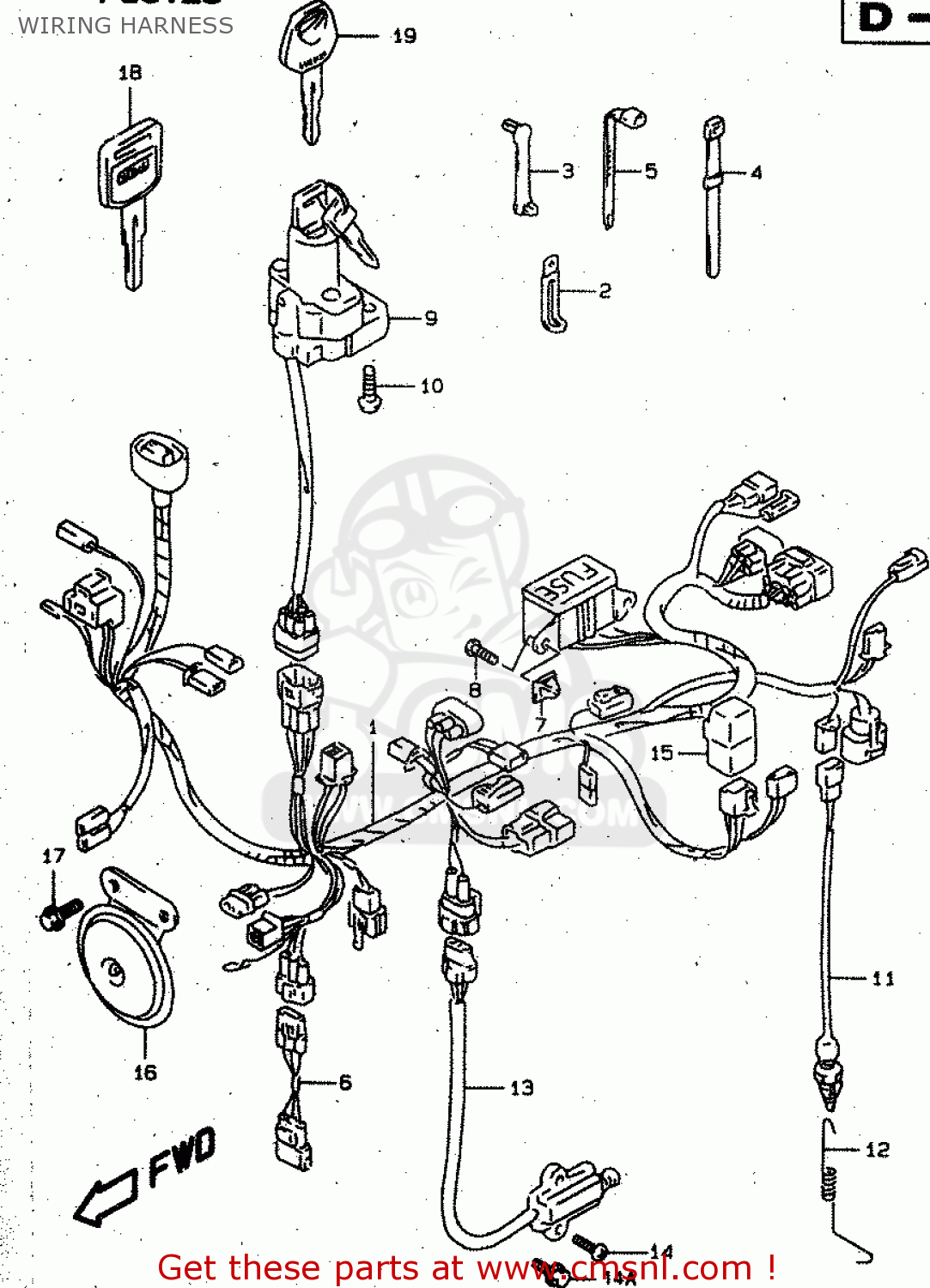

WIRING HARNESS

ref

part #

description

quantity

1

3661004F00
ref: 1

HARNESS,WIRING

€ 453.50

2

0940406432
ref: 2
<-09404-06429

CLAMP(L:65)

€ 2.50

3

0940703401
ref: 3

CLAMP(L:33)

€ 3.50

4

0940712402
ref: 4

CLAMP(L:120)

€ 3.00

5

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

5

0940718402
ref: 5
<-09407-18403

CLAMP(L:165)

€ 2.50

5

0940725401
ref: 5

CLAMP(L:235)

€ 4.00

6

3685132E00
ref: 6
MODEL V E18

WIRE,THROTTLE SENSOR

€ 6.50

7

0914806006
ref: 7

NUT

€ 1.50

8

0354206203
ref: 8

SCREW

€ 2.00

9

3710004F00
ref: 9

LOCK ASSY,STEERING

€ 143.00

9

3710004F10
ref: 9
E24

LOCK ASSY,STEERING

€ 143.50

10

0913908016
ref: 10

BOLT(8X20)

€ 3.50

11

3774032E00
ref: 11

SWITCH ASSY,STOP LAMP

€ 21.50

12

0944306058
ref: 12

SPRING

€ 18.00

13

3784044X50
ref: 13

SWITCH ASSY,SIDE STAND

€ 75.50

14

0211206163
ref: 14
MODEL V

SCREW 6X16

€ 2.00

14A

0155006163
ref: 14A
MODEL W

BOLT

€ 2.50

15

3874024X50
ref: 15

RELAY ASSY

€ 37.50

16

3850012D01
ref: 16

HORN ASSY

€ 48.00

17

0155006163
ref: 17

BOLT

€ 2.50

18

3714646E00
ref: 18
OPT

KEY,BLANK

€ 13.00

19

3714633E00
ref: 19
OPT

KEY,BLANK

€ 13.00
