CLUTCH
DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

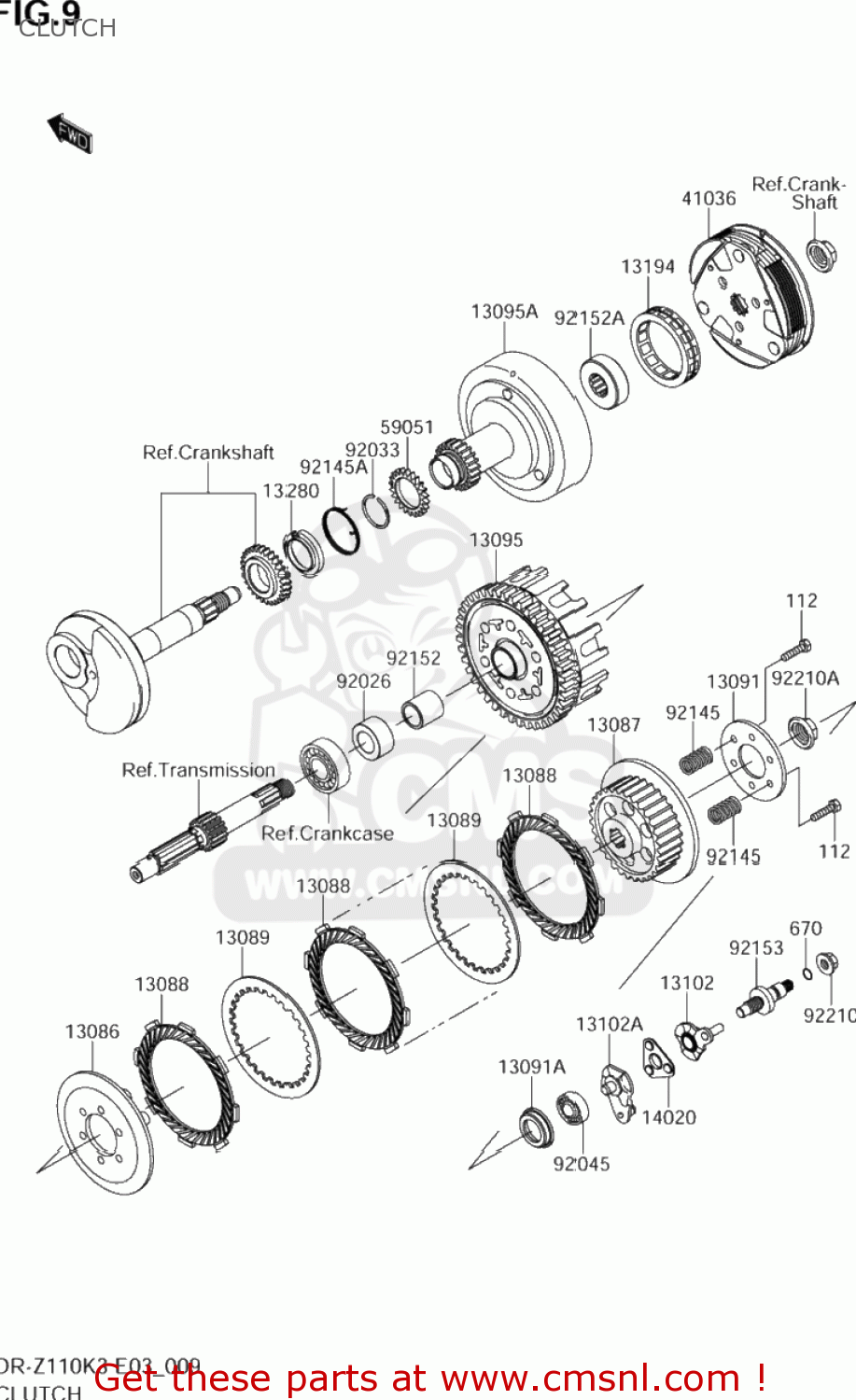

Clutch diagram DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110
CLUTCH DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110
×
prices are in EUR
ref
part #
description
quantity
112
KK112G0520
ref: 112
K112B-A0520
BOLT-UPSET
€ 1.50
670
KK670B1508
ref: 670
O RING,8MM
€ 4.00
13086
K130861065
ref: 13086
WHEEL-CLUTCH
€ 21.50
13087
K130871151
ref: 13087
HUB-CLUTCH
€ 20.50
13088
K130881142
ref: 13088
PLATE-FRICTION
€ 18.50
13089
K130891087
ref: 13089
PLATE-CLUTCH
€ 8.00
13091
K130911782
ref: 13091
HOLDER,CLUTCH
€ 3.50
13091A
K130911787
ref: 13091A
HOLDER
€ 8.00
13095
K130951403
ref: 13095
HOUSING-COMP-CLUTCH
€ 0.00
13095A
K130951422
ref: 13095A
HOUSING-COMP-CLUTCH
€ 63.00
13102
K131021135
ref: 13102
RELEASE-COMP-CLUTCH
€ 35.00
13102A
K131021136
ref: 13102A
RELEASE-COMP-CLUTCH
€ 38.50
13194
K131941103
ref: 13194
CLUTCH-ONEWAY
€ 66.00
13280
K132801250
ref: 13280
HOLDER,CLUTCH
€ 0.00
14020
K140201100
ref: 14020
RETAINER
€ 12.00
41036
K410361364
ref: 41036
HUB-ASSY,CLUTCH
€ 0.00
59051
K590511403
ref: 59051
GEAR-SPUR,CLUTCH,22T
€ 0.00
92026
K920261605
ref: 92026
SPACER
€ 0.00
92033
K920331065
ref: 92033
RING-SNAP,23.5MM
€ 0.00
92045
K920451123
ref: 92045
BEARING-BALL,#628
€ 24.00
92145
K921451456
ref: 92145
SPRING,CLUTCH HUB
€ 2.00
92145A
K921451457
ref: 92145A
SPRING,CLUTCH HOLDER
€ 2.00
92152
K921520113
ref: 92152
K9215-20393
COLLAR,17X22X22.7
€ 11.50
92152A
K921521370
ref: 92152A
COLLAR,19X39.9X13
€ 0.00
92153
K921530525
ref: 92153
BOLT,CLUTCH RELEASE
€ 0.00
92210
K922100004
ref: 92210
NUT,FLANGED,8MM
€ 5.00
92210A
K922101163
ref: 92210A
NUT
€ 6.50
