GEAR CHANGE MECHANISM

DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

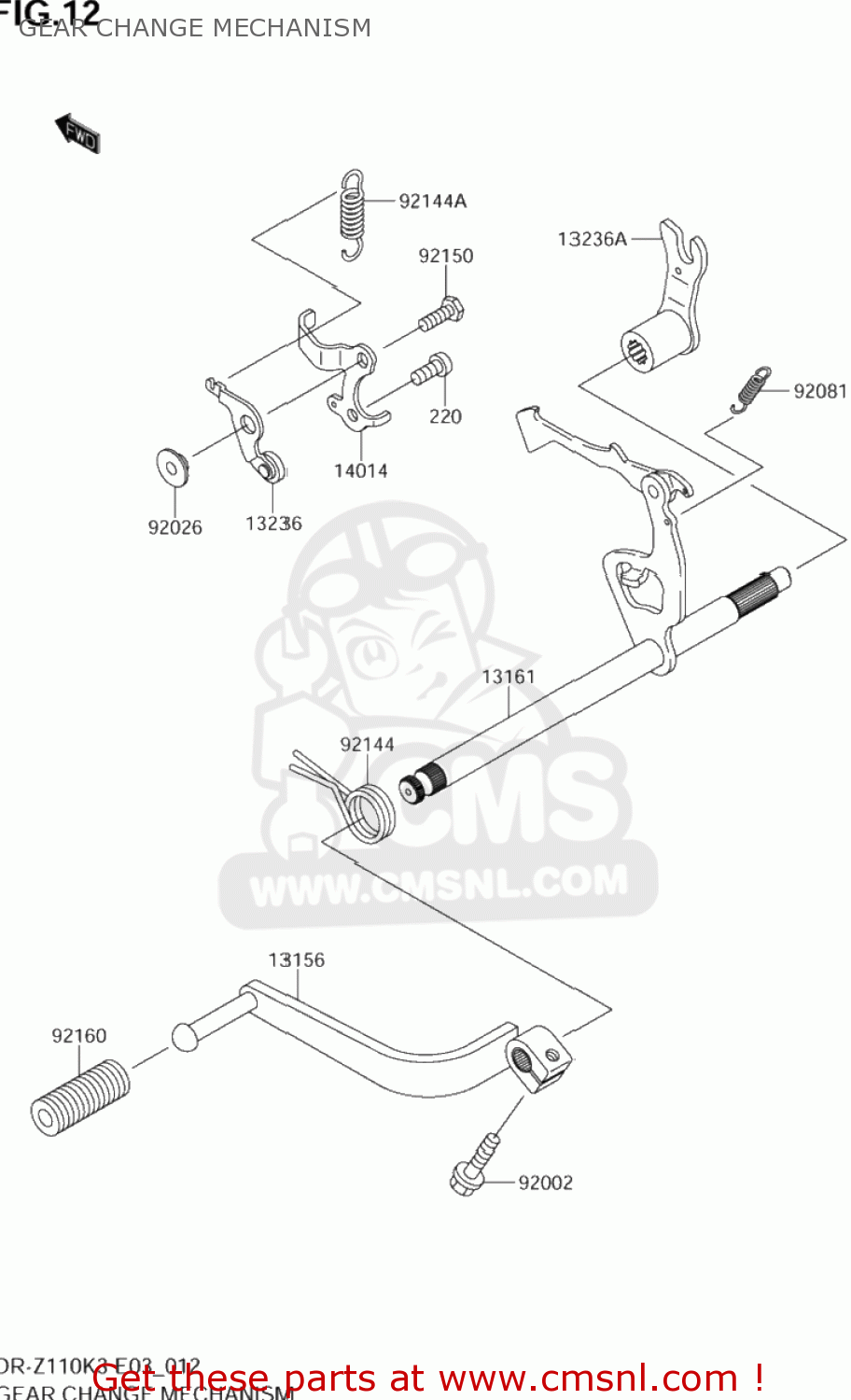

Gear change mechanism diagram DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

prices are in EUR

ref

part #

description

quantity

220

KK220B0614
ref: 220
K220A-A0614

SCREW-PAN-CROS,6X14

€ 1.50

13156

K131561489
ref: 13156

LEVER-CHANGE,PEDAL

€ 54.00

13156

K131560039
ref: 13156

LEVER-CHANGE,PEDAL

€ 44.50

13161

K131610003
ref: 13161
K1316-10079

LEVER-COMP-CHANGE SHAFT

€ 49.50

13161

K131610019
ref: 13161

LEVER-COMP-CHANGE SHAFT

€ 58.50

13236

K132361256
ref: 13236

LEVER-COMP,POSITION

€ 8.00

13236A

K132361288
ref: 13236A

LEVER-COMP

€ 9.00

14014

K140140010
ref: 14014

PLATE-POSITION

€ 7.50

92002

K920021237
ref: 92002

BOLT,6X20

€ 2.50

92026

K920261217
ref: 92026

SPACER

€ 3.00

92081

KK92081076
ref: 92081

SPRING,CHANGE LEVER

€ 5.00

92144

K921441107
ref: 92144

SPRING,CHANGE SHAFT RETURN

€ 5.50

92144A

K921441590
ref: 92144A

SPRING

€ 3.50

92150

K921501626
ref: 92150

BOLT,6X14

€ 4.50

92160

K921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 4.50
