MUFFLER

DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

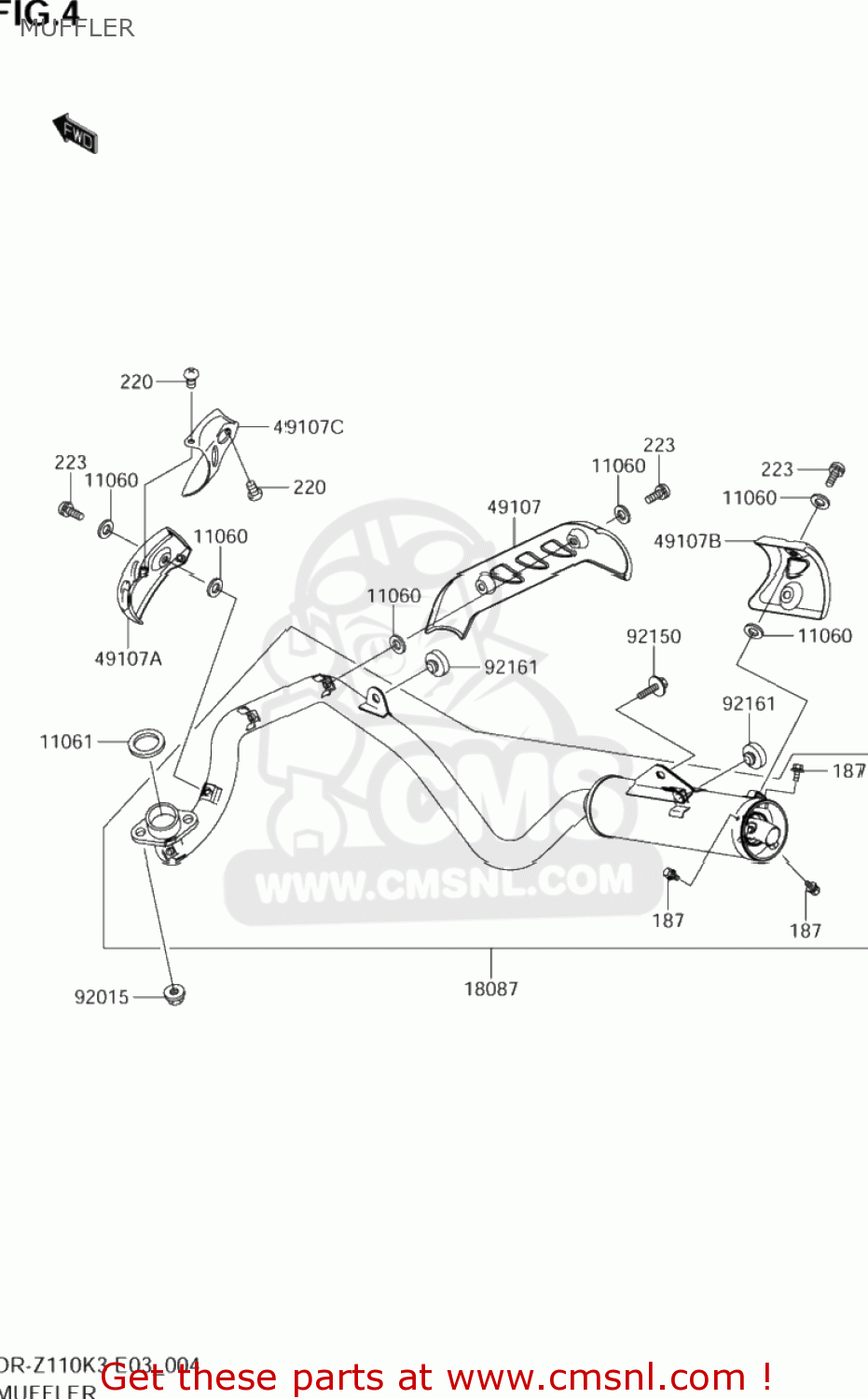

Muffler diagram DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

prices are in EUR

ref

part #

description

quantity

187

KK187B0612
ref: 187

BOLT-UPSET-WSP

€ 2.00

220

KK220F0508
ref: 220
K220A-B0508

SCREW-PAN-CROSS

€ 1.50

223

KK223C0610
ref: 223
K223A-B0610

SCREW-PAN-WS-CROS

€ 2.00

11060

K110601109
ref: 11060

GASKET,6.2X11.5X1.5 (NAS)

€ 2.00

11061

K110611112
ref: 11061

GASKET,EXHAUST PIPE (NAS)

€ 3.50

18087

K180871168
ref: 18087

MUFFLER

€ 0.00

49107

K491071213
ref: 49107

COVER-EXHAUST PIPE

€ 0.00

49107A

K491071217
ref: 49107A

COVER-EXHAUST PIPE

€ 0.00

49107B

K491071218
ref: 49107B

COVER-EXHAUST PIPE

€ 0.00

49107C

K491071221
ref: 49107C

COVER-EXHAUST PIPE

€ 0.00

92015

K920151331
ref: 92015
K9201-51398

NUT

€ 3.00

92150

K921501507
ref: 92150

BOLT,FLANGED,6X25

€ 0.00

92161

K921611284
ref: 92161

DAMPER,MUFFLER

€ 0.00

MUFFLER

all assemblies
