REAR SUSPENSION

DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

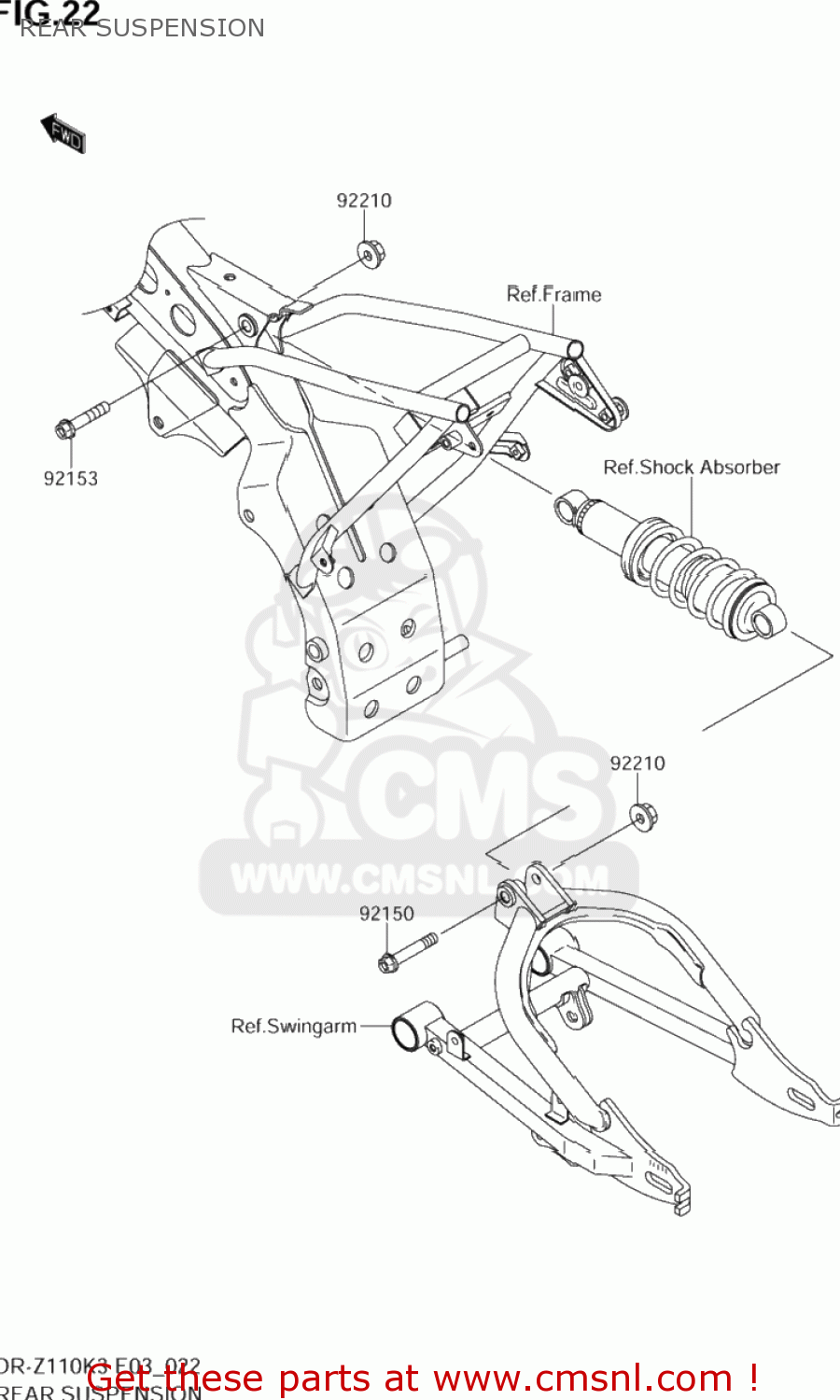

Rear suspension diagram DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

REAR SUSPENSION DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110
REAR SUSPENSION DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110
REAR SUSPENSION DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110
prices are in EUR
ref
part #
description
quantity
92150
K921501227
ref: 92150
BOLT,FLANGED,10X57
€ 6.50
92153
K921531139
ref: 92153
BOLT,FLANGED,10X50
€ 4.50
92210
K922101080
ref: 92210
NUT,LOCK,FLANGED,10MM
K922101080
€ 9.00
