OIL PUMP

DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

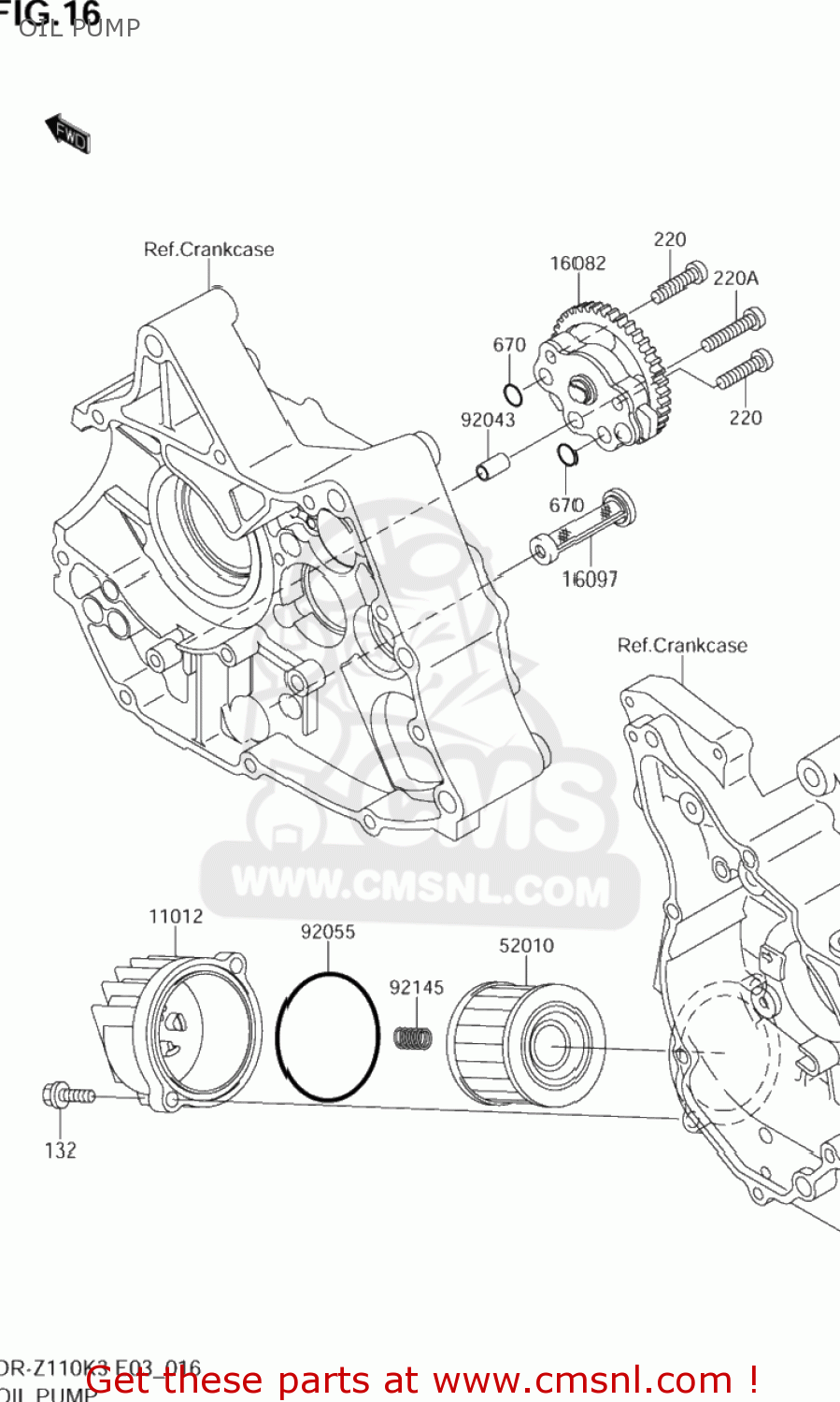

Oil pump diagram DR-Z110 2005 (K5) USA (E03) DRZ110 DR Z110

prices are in EUR

ref

part #

description

quantity

132

KK132Y0620
ref: 132
K132B-D0620

BOLT-FLANGED-SMALL

€ 1.50

220

KK220B0625
ref: 220

SCREW-PAN-CROS,6X25

€ 0.00

220A

KK220B0630
ref: 220A

SCREW-PAN-CROS,6X30

€ 0.00

670

KK670B1510
ref: 670

O RING,10MM

€ 4.00

11012

K110121980
ref: 11012

CAP

€ 0.00

16082

K160821052
ref: 16082

PUMP-ASSY-OIL

€ 58.00

16097

K160971071
ref: 16097

FILTER-ASSY-OI

€ 18.00

52010

K520101053
ref: 52010

ELEMENT-OIL FILTER

€ 19.50

92043

K920431263
ref: 92043

PIN,6.2X8X14

€ 2.50

92055

K920553018
ref: 92055

RING-O

€ 3.50

92145

K921451091
ref: 92145

SPRING

€ 0.00

OIL PUMP

all assemblies
