CAM SHAFT/VALVE

DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

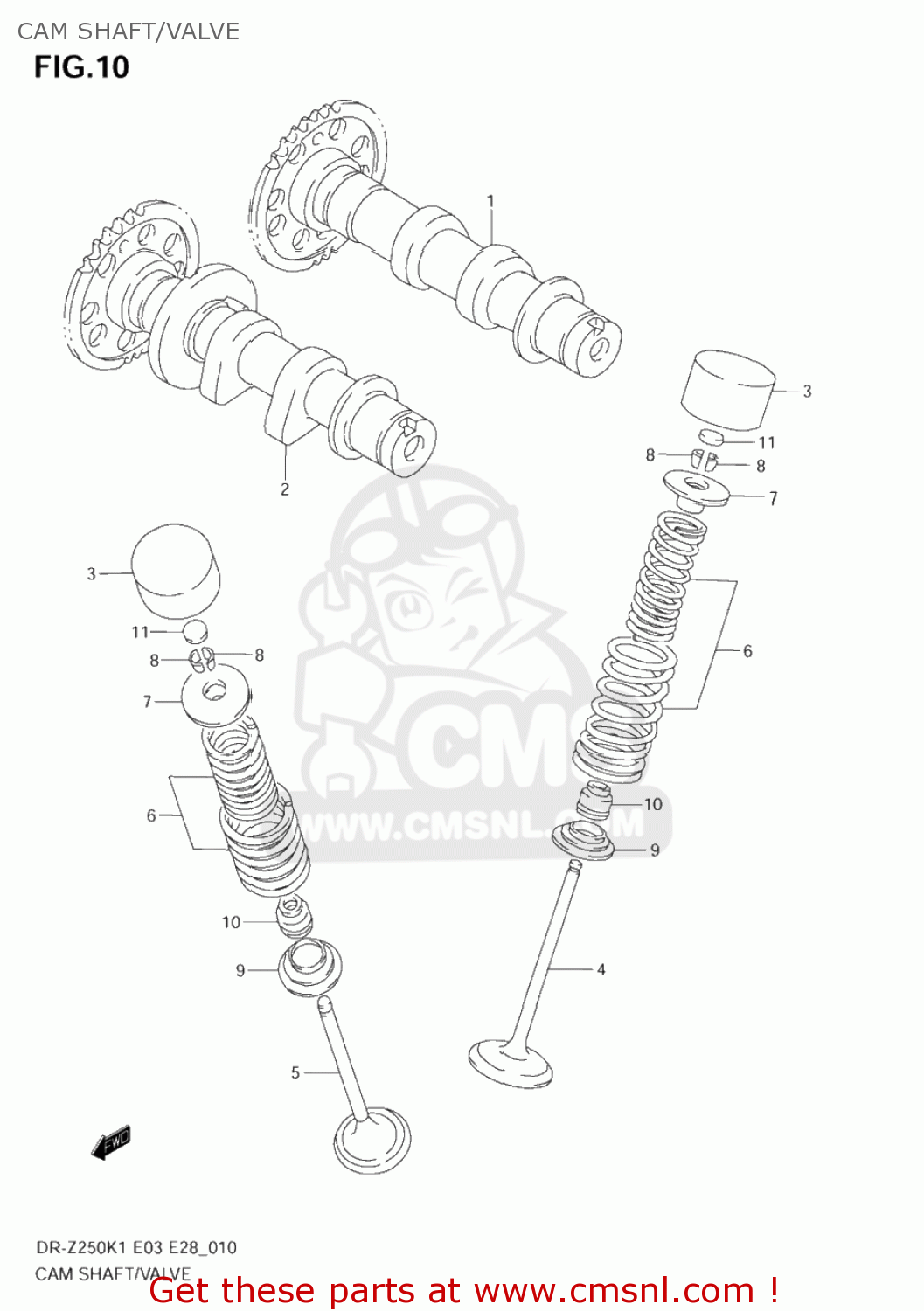

Cam shaft/valve diagram DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

CAM SHAFT/VALVE DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
CAM SHAFT/VALVE DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
CAM SHAFT/VALVE DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
1271013E10
ref: 1
CAMSHAFT,INTAKE
€ 563.50
2-1
1272013E00
ref: 2-1
12720-13E01
CAMSHAFT,EXHAUST
€ 755.00
2-2
1272013E01
ref: 2-2
CAMSHAFT,EXHAUST
€ 755.00
3
1289117E00
ref: 3
TAPPET
1289117E00
€ 55.00
4
1291113E00
ref: 4
VALVE,INTAKE
1291113E00
€ 26.00
5
1291213E00
ref: 5
VALVE,EXHAUST
1291213E00
€ 41.00
6
1292013E00
ref: 6
SPRING SET,VALVE
1292013E00
€ 14.50
7
1293113E00
ref: 7
RETAINER,VALVE SPRING
1293113E00
€ 10.00
8
1293232C00
ref: 8
COTTER VALVE
1293232C00
€ 2.00
9
1293339E00
ref: 9
SEAT,VALVE SPRING
€ 5.50
10
0928904002
ref: 10
SEAL,OIL(4.5X10X8)
0928904002
€ 7.50
11-1
1289205C00120
ref: 11-1
SHIM,TAPPET
€ 7.00
11-10
1289205C00165
ref: 11-10
SHIM,TAPPET
1289205C00165
€ 7.50
11-11
1289205C00170
ref: 11-11
SHIM,TAPPET
1289205C00170
€ 7.50
11-12
1289205C00175
ref: 11-12
SHIM,TAPPET
1289205C00175
€ 7.00
11-13
1289205C00180
ref: 11-13
SHIM,TAPPET
1289205C00180
€ 7.50
11-14
1289205C00185
ref: 11-14
SHIM,TAPPET
1289205C00185
€ 7.00
11-15
1289205C00190
ref: 11-15
SHIM,TAPPET
1289205C00190
€ 7.00
11-16
1289205C00195
ref: 11-16
SHIM,TAPPET
€ 7.00
11-17
1289205C00200
ref: 11-17
SHIM,TAPPET
1289205C00200
€ 7.00
11-18
1289205C00205
ref: 11-18
SHIM,TAPPET
€ 7.00
11-19
1289205C00210
ref: 11-19
SHIM,TAPPET
€ 7.00
11-2
1289205C00125
ref: 11-2
SHIM,TAPPET
€ 7.00
11-20
1289205C00215
ref: 11-20
SHIM,TAPPET
1289205C00215
€ 7.00
11-21
1289205C00220
ref: 11-21
SHIM,TAPPET
€ 7.00
11-3
1289205C00130
ref: 11-3
SHIM,TAPPET
€ 7.00
11-4
1289205C00135
ref: 11-4
SHIM,TAPPET
€ 7.50
11-5
1289205C00140
ref: 11-5
SHIM,TAPPET
1289205C00140
€ 7.50
11-6
1289205C00145
ref: 11-6
SHIM,TAPPET
1289205C00145
€ 7.50
11-7
1289205C00150
ref: 11-7
SHIM,TAPPET
1289205C00150
€ 7.50
11-8
1289205C00155
ref: 11-8
SHIM,TAPPET
1289205C00155
€ 7.50
11-9
1289205C00160
ref: 11-9
SHIM,TAPPET
1289205C00160
€ 7.50
12
1280005830
ref: 12
SHIM SET,TAPPET
1280005830
€ 846.50
13
9900069491
ref: 13
CASE,TAPPET SHIM
9900069491
€ 89.00
