REAR CUSHION LEVER

DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

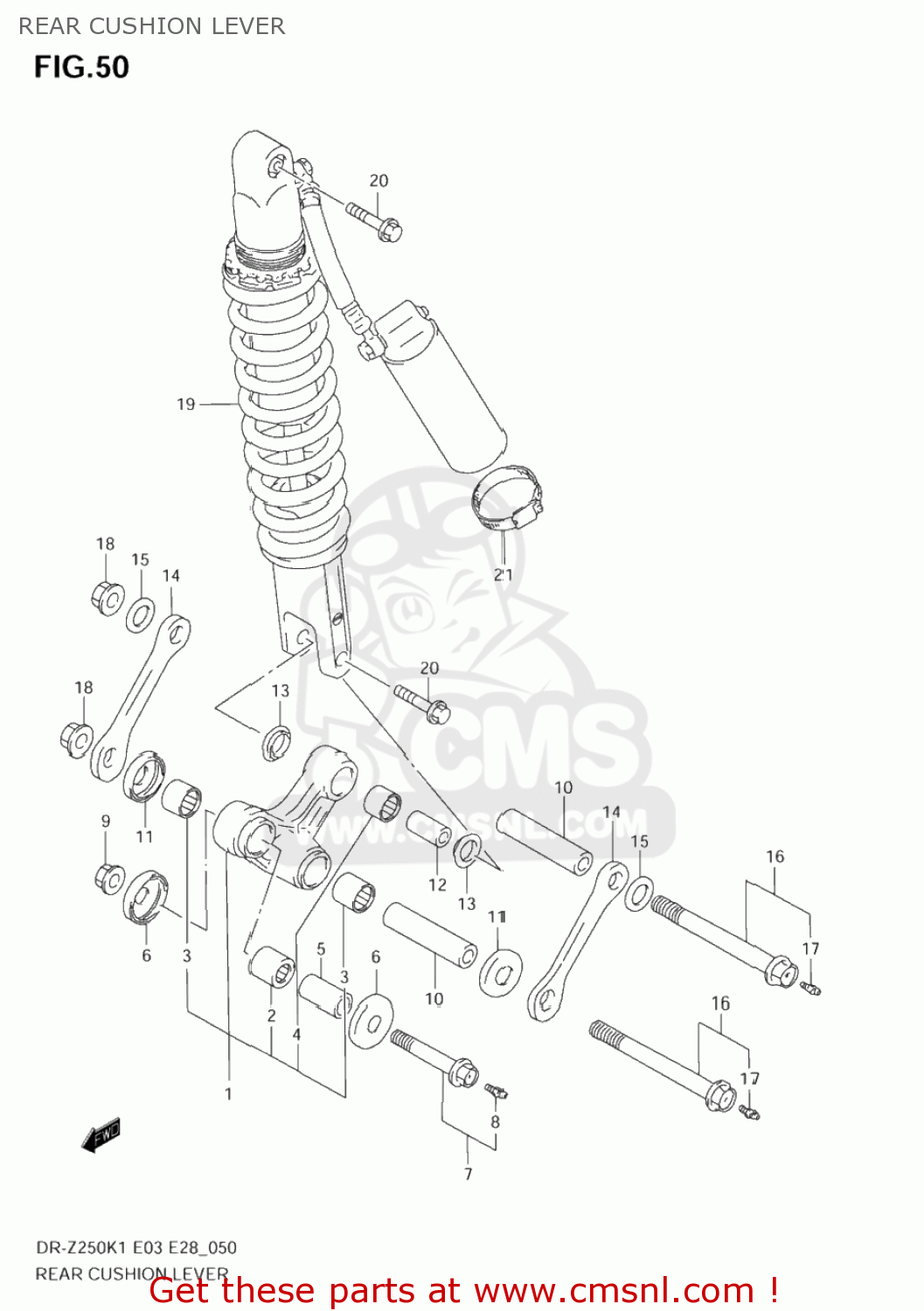

Rear cushion lever diagram DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

REAR CUSHION LEVER DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
REAR CUSHION LEVER DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
REAR CUSHION LEVER DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
6260113840
ref: 1
LEVER SET,RR CUSHION
€ 0.00
2
0926320073
ref: 2
BEARING(20X27X30)
0926320073
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
0926317027
ref: 4
BEARING(17X24X20)
0926317027
€ 13.50
5
6231705D00
ref: 5
SPACER,RR CUSHION LEVER FR
6231705D00
€ 18.50
6
6216228E00
ref: 6
SEAL,RR CUSHION LEVER FR DUST
6216228E00
€ 6.50
7
6265005D00
ref: 7
BOLT,RR
€ 10.50
8
0835121008
ref: 8
08351-2100A
GREASE NIPPLE
0835121008
€ 13.50
9
0831931128
ref: 9
08319-3112A
NUT 12MM
0831931128
€ 4.00
10
6262614D00
ref: 10
SPACER,RR CUSHION LEVER CTR
6262614D00
€ 20.00
11
6262408D10
ref: 11
SEAL,RR CUSHION LEVER CTR DUST
6262408D10
€ 19.50
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
13
6262413E00
ref: 13
SEAL,RR CUSHION LEVER RR DUST
6262413E00
€ 8.50
14
6264113E00
ref: 14
ROD,RR CUSHION LEVER
€ 0.00
15
0821114321
ref: 15
WASHER
0821114321
€ 4.00
16
6262014D00
ref: 16
BOLT,RR CUSHION LEVER CTR
6262014D00
€ 26.50
17
0835121008
ref: 17
08351-2100A
GREASE NIPPLE
0835121008
€ 13.50
18
0831931148
ref: 18
08319-3114A
NUT
0831931148
€ 9.00
19-1
6210013E7037W
ref: 19-1
ABSORBER ASSY,RR SHOCK
€ 1,164.50
19-1
6210013E7037W
ref: 19-1
ABSORBER ASSY,RR SHOCK
€ 1,164.50
19-2
6210013E8037W
ref: 19-2
E28
€ 0.00
19-2
6210013E8037W
ref: 19-2
E28
€ 0.00
19-3
6210013E70163
ref: 19-3
ABSORBER ASSY,RR SHOCK(YELLOW)
€ 0.00
19-3
6210013E70163
ref: 19-3
ABSORBER ASSY,RR SHOCK(YELLOW)
€ 0.00
19-4
6210013E80163
ref: 19-4
(YELLOW) E28
€ 0.00
19-4
6210013E80163
ref: 19-4
(YELLOW) E28
€ 0.00
20
6264814500
ref: 20
BOLT,RR CUSHION ROD UPR
6264814500
€ 3.00
21
0940250511
ref: 21
CLAMP
0940250511
€ 8.50
