CRANKCASE

DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

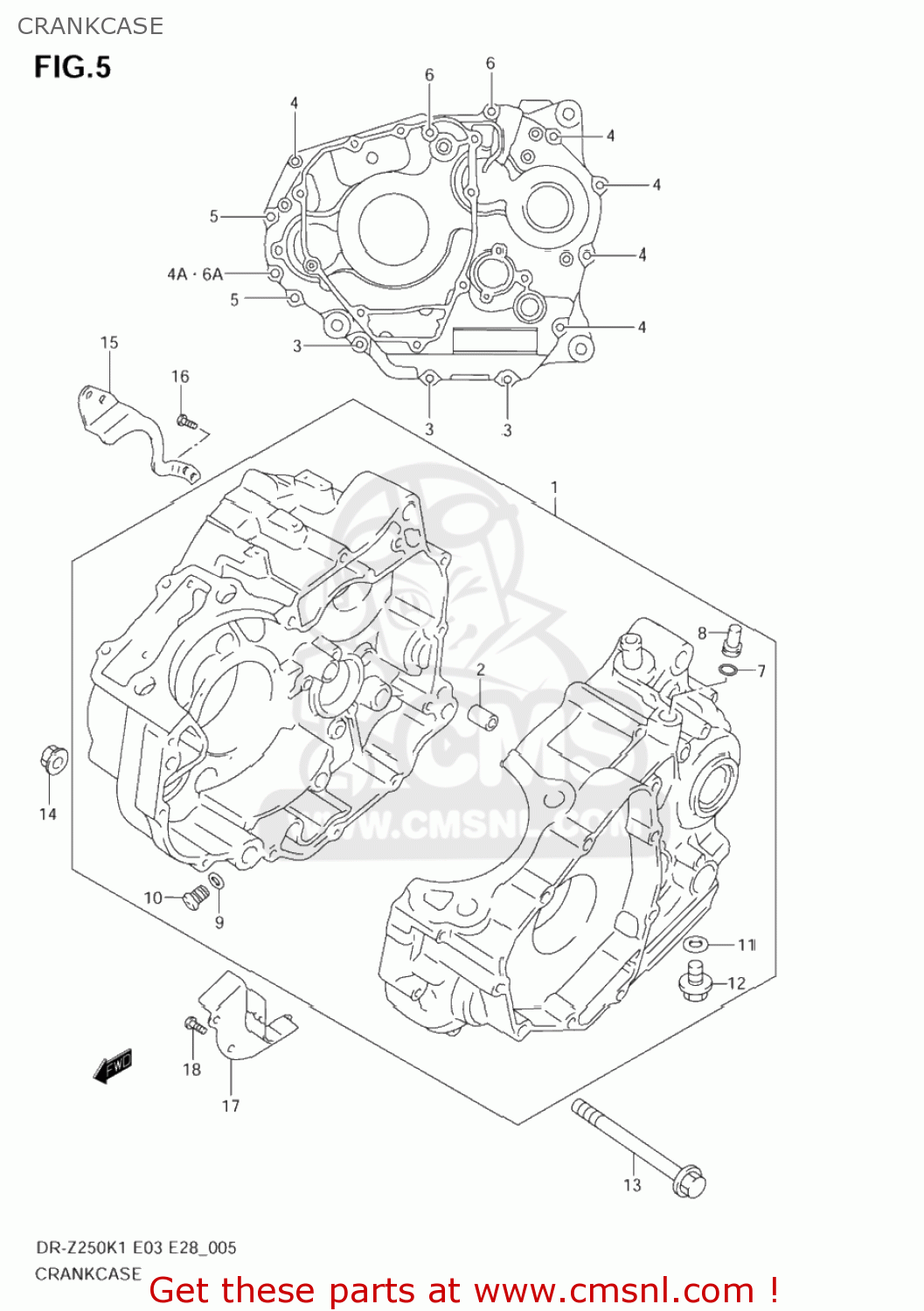

Crankcase diagram DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

CRANKCASE DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
CRANKCASE DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
CRANKCASE DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1-1
1130113833
ref: 1-1
11301-13835
CRANKCASE SET
€ 723.00
1-2
1130113834
ref: 1-2
11301-13835
CRANKCASE SET
€ 723.00
1-3
1130113840
ref: 1-3
11301-13841
CRANKCASE SET
€ 0.00
2
0920210006
ref: 2
PIN
0920210006
€ 6.50
3
0154706403
ref: 3
01547-0640B
BOLT
0154706403
€ 3.00
4
0154706503
ref: 4
01547-0650B
BOLT
0154706503
€ 3.50
4A
0154706503
ref: 4A
01547-0650B
BOLT
0154706503
€ 3.50
5-1
0712006503
ref: 5-1
07120-0650B
BOLT,CYL.OIL P
€ 2.50
5-2
0154706503
ref: 5-2
01547-0650B
BOLT
0154706503
€ 3.50
6
0154706653
ref: 6
01547-0665B
BOLT
€ 2.00
6A
0916806023
ref: 6A
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
7
0928004004
ref: 7
O RING(D:1.2,ID:4)
0928004004
€ 2.00
8
0949324012
ref: 8
JET(12)
0949324012
€ 10.50
9
0916810002
ref: 9
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
10
0924810010
ref: 10
PLUG(10X10)
0924810010
€ 4.00
11
0916812002
ref: 11
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
12
0924712106
ref: 12
PLUG,12X20
0924712106
€ 2.50
13
0910310242
ref: 13
BOLT(10X101.5)
0910310242
€ 6.50
14
0915910058
ref: 14
09159-10115
NUT
0915910058
€ 4.00
15
1131713E10
ref: 15
PLATE,BREATHER OIL RETURN
€ 0.00
16
0211206123
ref: 16
02112-0612A
SCREW
0211206123
€ 1.50
17-1
1132313E00
ref: 17-1
11323-13E01
SEPARATOR,CRANKCASE
€ 6.50
17-2
1132313E01
ref: 17-2
SEPARATOR,CRANKCASE
€ 6.50
18
0912506086
ref: 18
SCREW(6X12)
0912506086
€ 2.00
