KICK STARTER

DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

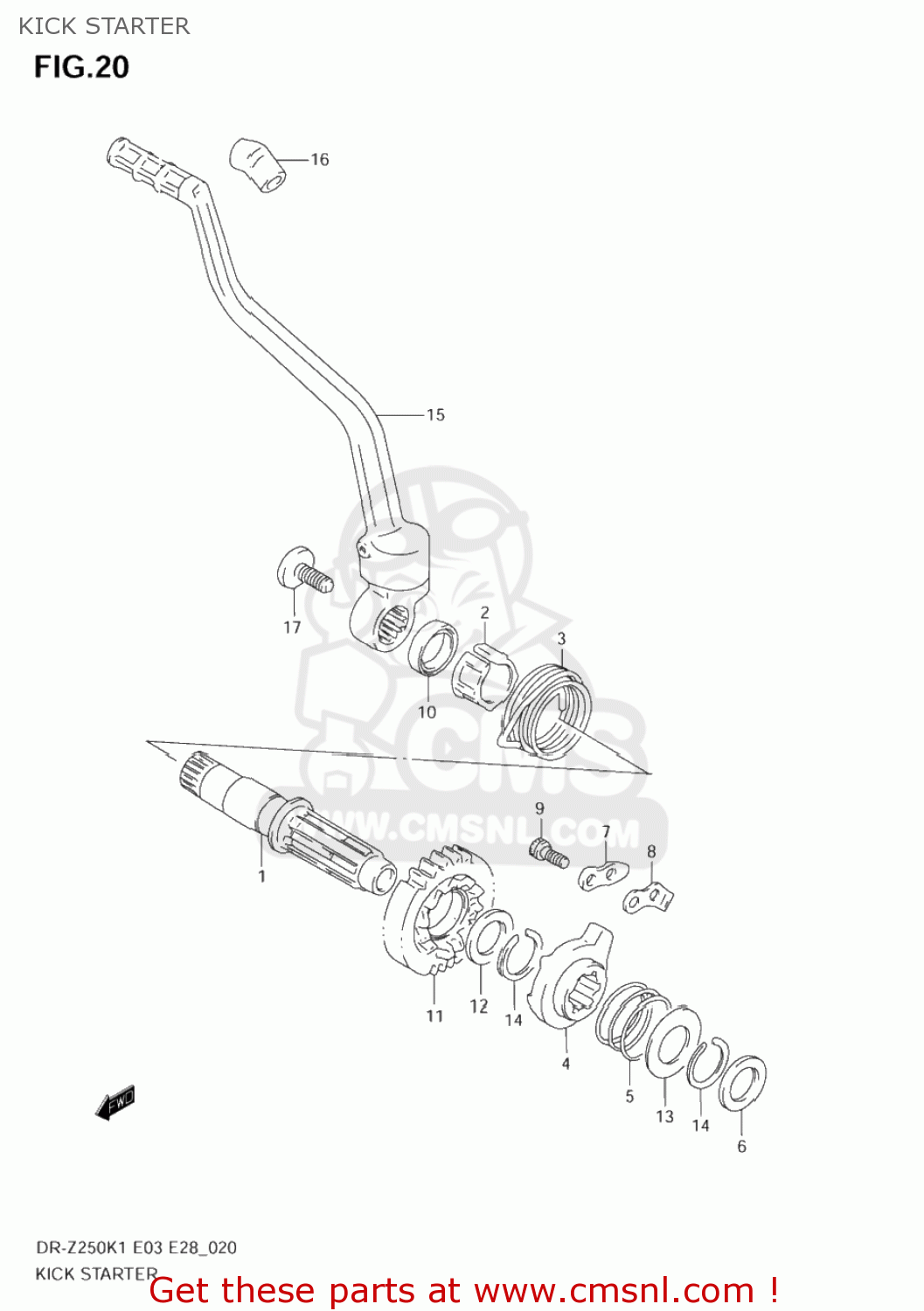

Kick starter diagram DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

2621114D03
ref: 1

SHAFT,KICK STARTER

€ 85.50

2622122A00
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 7.00

0944850001
ref: 3

SPRING

€ 10.00

2623114D21
ref: 4

STARTER,KICK

€ 41.50

0944032002
ref: 5

SPRING

€ 2.00

0918117167
ref: 6

SHIM(17X26X1)

€ 3.00

2623214500
ref: 7

GUIDE,KICK STARTER

€ 6.00

2623314500
ref: 8

STOPPER,KICK STARTER

€ 3.50

0910606073
ref: 9

BOLT(6X16)

€ 2.50

0928320044
ref: 10

SEAL,OIL(20X27X6)

€ 8.00

2624014D20
ref: 11

GEAR,KICK STARTER(NT:23)

€ 90.00

0918122139
ref: 12

SHIM(22X28X1)

€ 4.00

0918122251
ref: 13

SHIM(22X36X1)

€ 3.50

0938022006
ref: 14

CIRCLIP

€ 3.00

2630013E01
ref: 15

LEVER ASSY,KICK STARTER

€ 127.00

2631214D00
ref: 16

COVER,KICK STARTER LEVER

€ 8.00

0910608102
ref: 17

BOLT(8X14)

€ 7.00

KICK STARTER

all assemblies
