FUEL TANK (MODEL K5)

DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

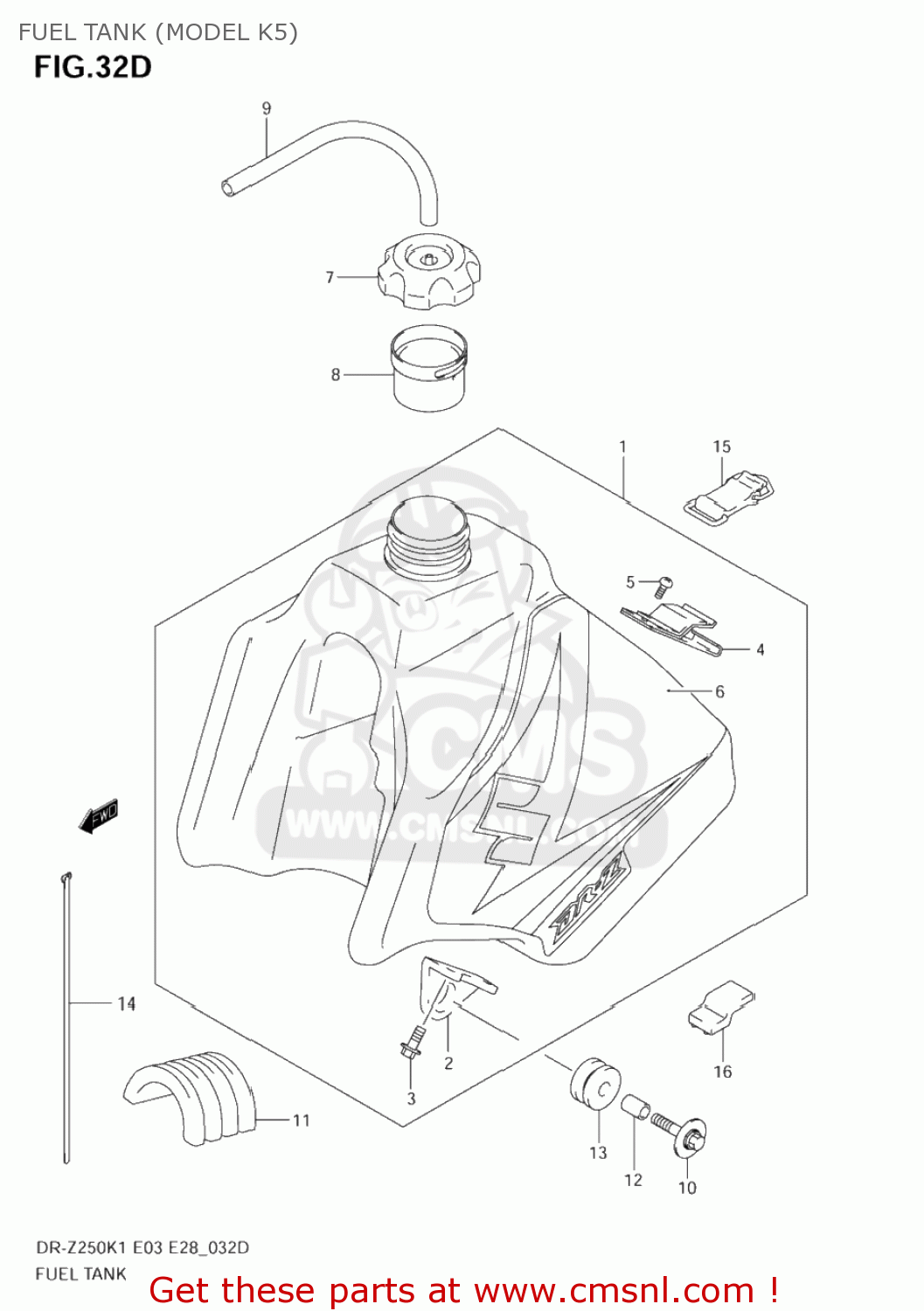

Fuel tank (model k5) diagram DR-Z250 2003 (K3) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

4410013EJ0YU1
ref: 1

TANK ASSY,FUEL(YELLOW)

€ 0.00

4413127C01
ref: 2

BRACKET,FUEL TANK FR

€ 6.50

0154706123
ref: 3
01547-0612B

BOLT

€ 2.00

4415013E30
ref: 4

BRACKET,FUEL TANK RR

€ 0.00

0214206123
ref: 5
02142-0612A

SCREW 6X12

€ 2.00

6811013EJ0YJG
ref: 6

TAPE SET,FUEL TANK(YELLOW)

€ 0.00

4420029F00
ref: 7

CAP ASSY,FUEL TANK FILLER

€ 42.50

4419919A00
ref: 8

TUBE,FILLER INLET

€ 4.00

0935250823600
ref: 9
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

0911806112
ref: 10

BOLT(6X30)

€ 3.00

4454113E10
ref: 11

CUSHION,FUEL TANK

€ 13.00

0918006268
ref: 12

SPACER(6.5X9X13.5)

€ 2.00

1476201B01
ref: 13

CUSHION,MUFFLER

€ 3.00

0940730402
ref: 14

CLAMP(L:300)

€ 3.50

4456044E00
ref: 15

BAND,FUEL TANK RR

€ 8.50

4454213E30
ref: 16

CUSHION,FUEL TANK

€ 0.00

FUEL TANK (MODEL K5)
