AIR CLEANER

DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

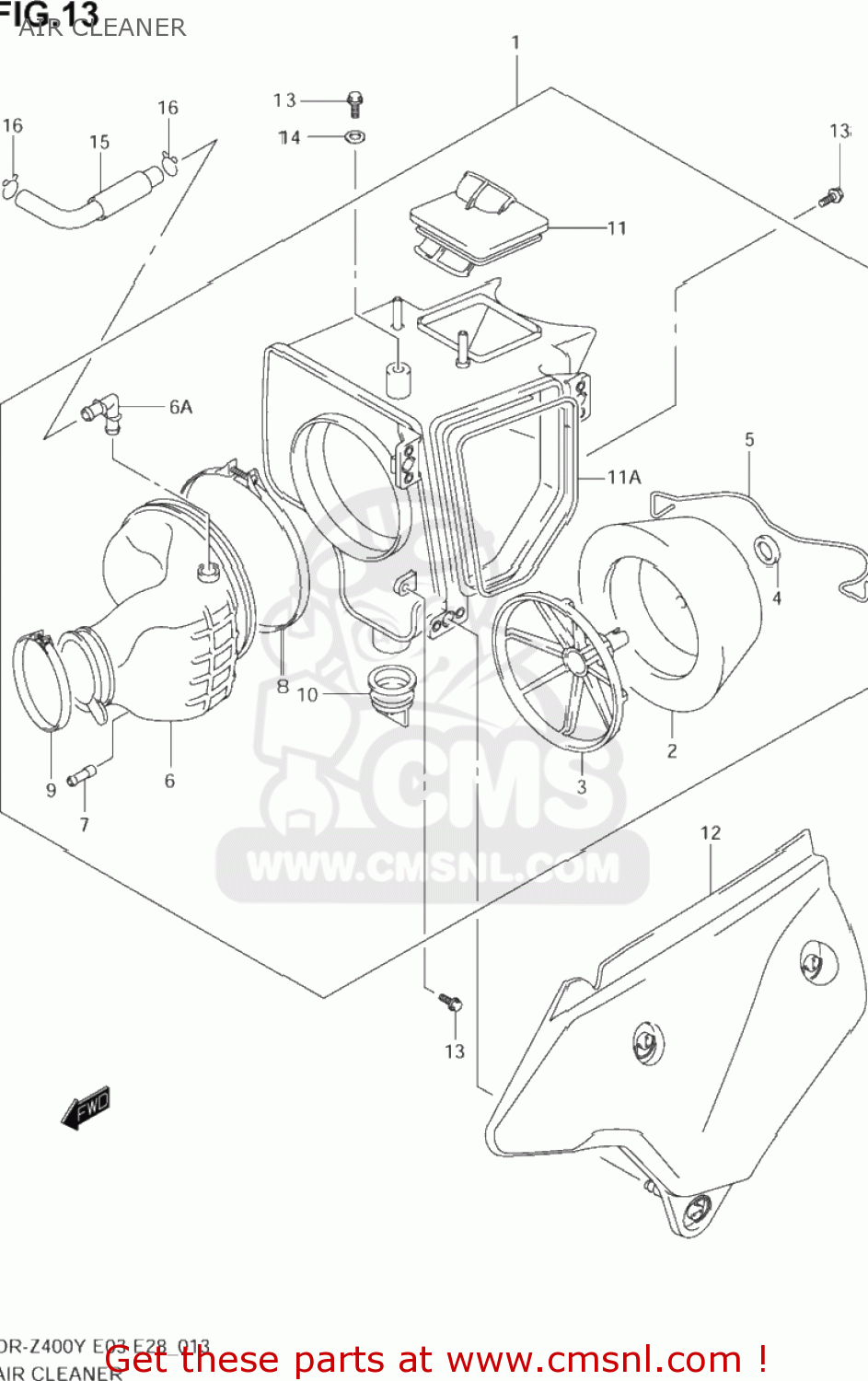

Air cleaner diagram DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

AIR CLEANER DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400
AIR CLEANER DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400
AIR CLEANER DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1-1
1370129F30
ref: 1-1
13701-29F31
CLEANER COMP,AIR
€ 0.00
1-2
1370129F31
ref: 1-2
CLEANER,AIR
€ 0.00
1-3
1370129F40
ref: 1-3
13701-29F41
CLEANER COMP,AIR
€ 0.00
1-4
1370129F41
ref: 1-4
CLEANER,AIR
€ 0.00
1-5
1370129F10
ref: 1-5
CLEANER,AIR
€ 0.00
2
1378044E00
ref: 2
FILTER ASSY
1378044E00
€ 50.00
3
1379144E00
ref: 3
HOLDER,FILTER
1379144E00
€ 12.00
4
1379644E00
ref: 4
SPACER
1379644E00
€ 3.00
5
1394129F00
ref: 5
SPRING
1394129F00
€ 26.00
6A
1385814D10
ref: 6A
13858-14D20
JOINT
€ 6.00
6-1
1388129F20
ref: 6-1
TUBE,OUTLET
€ 80.50
6-2
1388129F00
ref: 6-2
TUBE,OUTLET
€ 62.50
6-3
1388129FB0
ref: 6-3
TUBE,OUTLET
€ 56.50
7
0936406005
ref: 7
UNION
0936406005
€ 4.00
8
1382629F00
ref: 8
CLAMP
1382629F00
€ 6.50
9-1
0940260208
ref: 9-1
CLAMP
0940260208
€ 4.50
9-2
0940264203
ref: 9-2
CLAMP
0940264203
€ 6.00
10
1387229F00
ref: 10
VALVE
1387229F00
€ 8.00
11
1389129F30
ref: 11
TUBE,INLET
€ 43.50
11A
1374629F00
ref: 11A
GASKET,AIR CLEANER (NAS)
1374629F00
€ 4.50
12-1
1374029F0130H
ref: 12-1
CAP,AIR CLEANER
€ 104.50
12-2
1374029F01YR1
ref: 12-2
13740-29F01-YU1
CAP, AIR CLEANER (YELLOW)
1374029F01YR1
€ 136.50
12-3
1374029F00YU1
ref: 12-3
13740-29F01-YU1
AIR CLEANER CAP
€ 136.50
12-4
1374029F0130H
ref: 12-4
CAP,AIR CLEANER
€ 104.50
13-1
0154706163
ref: 13-1
01547-0616B
BOLT
0154706163
€ 2.50
13-2
0154706163
ref: 13-2
01547-0616B
BOLT
0154706163
€ 2.50
13-3
0911106054
ref: 13-3
BOLT(6X14.6)
0911106054
€ 1.50
14
0916906060
ref: 14
WASHER
0916906060
€ 2.00
15
1385029FA0
ref: 15
13850-29FA1
TUBE COMP,BREATHER
€ 9.50
16
0940114101
ref: 16
CLIP
0940114101
€ 2.00
