LEFT HANDLE LEVER (DR-Z400EY/EK1/EK2/EK3/EK4)

DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

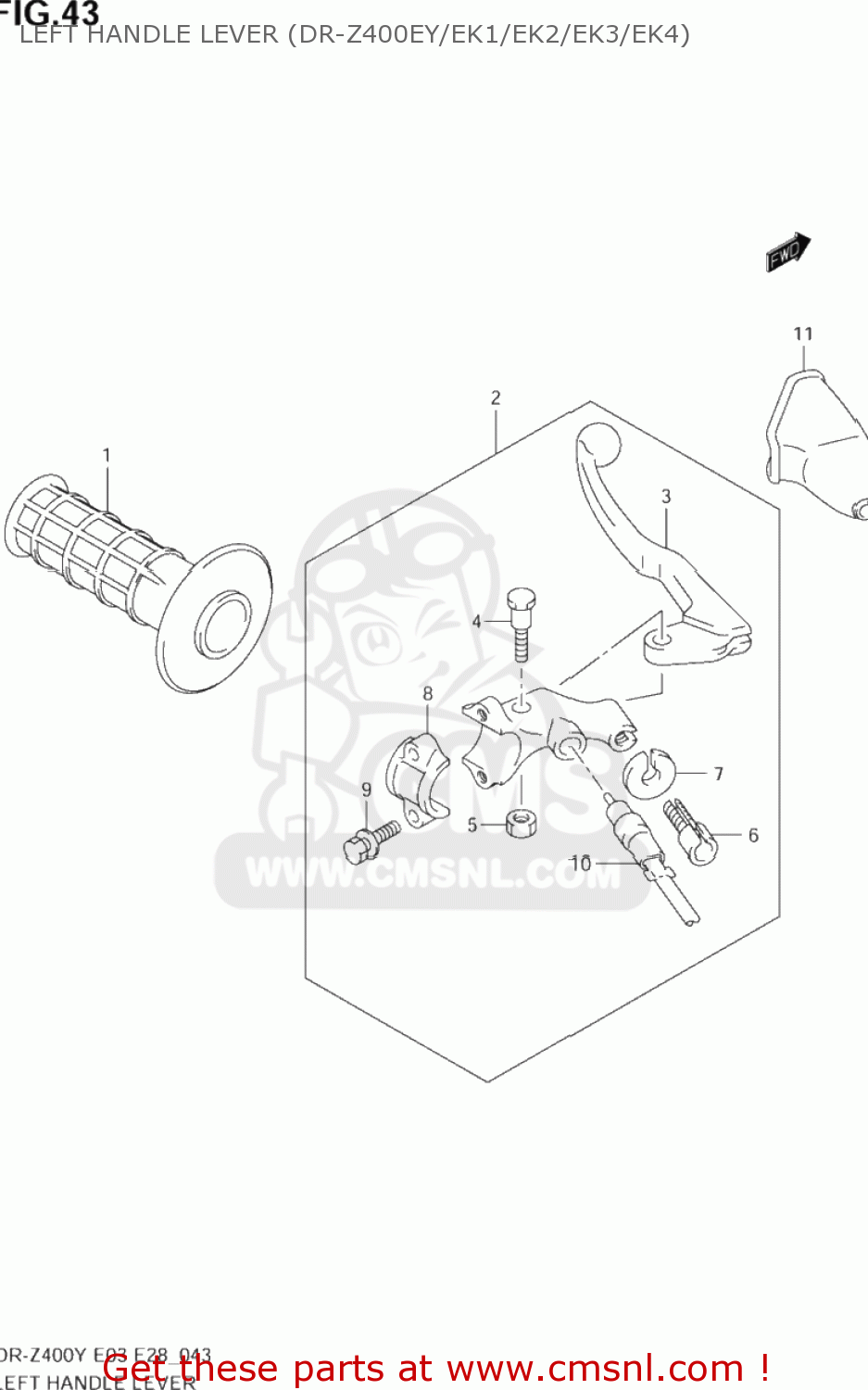

Left handle lever (dr-z400ey/ek1/ek2/ek3/ek4) diagram DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

LEFT HANDLE LEVER (DR-Z400EY/EK1/EK2/EK3/EK4) DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400
LEFT HANDLE LEVER (DR-Z400EY/EK1/EK2/EK3/EK4) DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400
LEFT HANDLE LEVER (DR-Z400EY/EK1/EK2/EK3/EK4) DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1
5721127C00
ref: 1
GRIP,L
5721127C00
€ 11.00
2
5750029F10
ref: 2
57500-29F12
LEVER ASSEMBLY,CLUTCH
5750029F10
€ 58.00
3
5762113E00
ref: 3
LEVER,CLUTCH
5762113E00
€ 17.00
4
5743121D11
ref: 4
BOLT,LEVER PIVOT
5743121D11
€ 10.50
5
0831921068
ref: 5
08319-2106A
NUT 6MM
0831921068
€ 2.00
6
5744129F00
ref: 6
ADJUSTER,WIRE
5744129F00
€ 8.50
7
5744245C00
ref: 7
NUT,LOCK
5744245C00
€ 7.50
8
5751213E00
ref: 8
BRACKET,HOLDER
5751213E00
€ 11.50
9
5751313E00
ref: 9
BOLT,BRACKET
5751313E00
€ 3.50
10
5756013E00
ref: 10
57560-13E02
SWITCH ASSEMBLY,CLUTCH
5756013E00
€ 15.00
11
5734129F01
ref: 11
COVER,CLUTCH CABLE DUST
5734129F01
€ 8.00
