WATER PUMP

DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

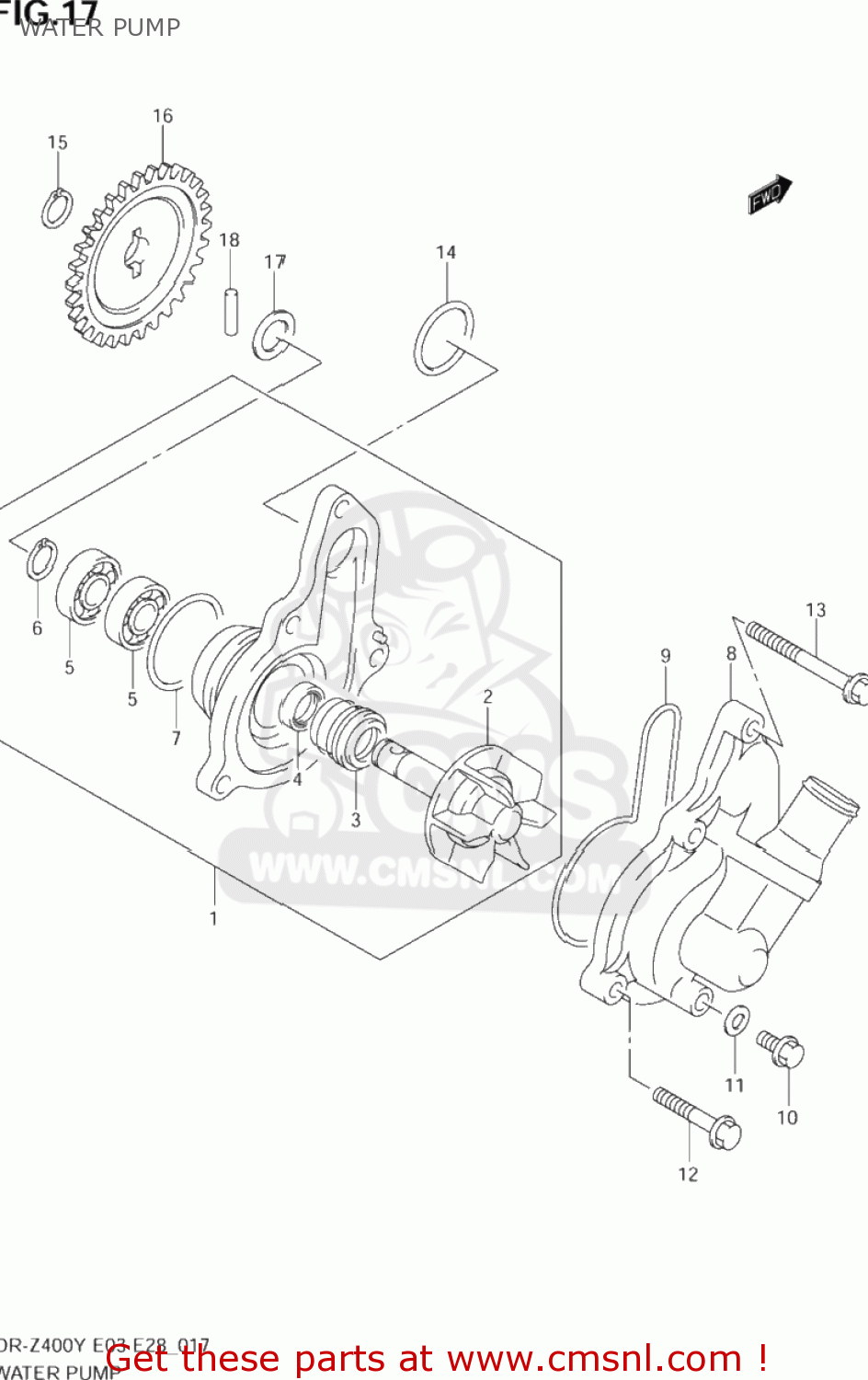

Water pump diagram DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

WATER PUMP DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

WATER PUMP DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

1740029F00
ref: 1

PUMP ASSY,WATER

€ 205.50

2

1749129F00
ref: 2

IMPELLER SHAFT

€ 36.50

3

1747002F10
ref: 3

SEAL,MECHANICAL

€ 21.50

4

1741929F00
ref: 4

SEAL,OIL

€ 11.50

5

0811069000
ref: 5

BEARING

€ 18.50

6

0833211086
ref: 6
08332-1108A

E RING

€ 2.00

7

1743533400
ref: 7

O RING,WATER PUMP HOLDER

€ 13.00

8-1

1741029F01
ref: 8-1

CASE,WATER PUMP

€ 71.00

8-2

1741029F20
ref: 8-2
17410-29F21

WATER PUMP CASE

€ 52.50

8-3

1741029F21
ref: 8-3

CASE,WATER PUMP

€ 52.50

9

1743529F00
ref: 9

O RING,WATER PUMP CASE

€ 8.00

10

0154706103
ref: 10
01547-0610B

BOLT

€ 3.00

11

0916806004
ref: 11

GASKET(6.2X11X1).2 (NAS)

€ 1.50

12

0910306204
ref: 12

BOLT(6X30)

€ 3.50

13

0910306209
ref: 13

BOLT(6X45)

€ 2.50

14

0928022001
ref: 14

O RING(D:2.4,ID:21.8)

€ 2.00

15

0833131106
ref: 15
08331-3110A

CIRCLIP,10MM

€ 2.00

16

1746129F00
ref: 16

GEAR,WATER PUMP DRIVEN

€ 30.00

17

0918110158
ref: 17

SHIM(10X18X0.5)

€ 2.50

18

0926104001
ref: 18

PIN(4X18.5)

€ 1.50
