TAIL LAMP

DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

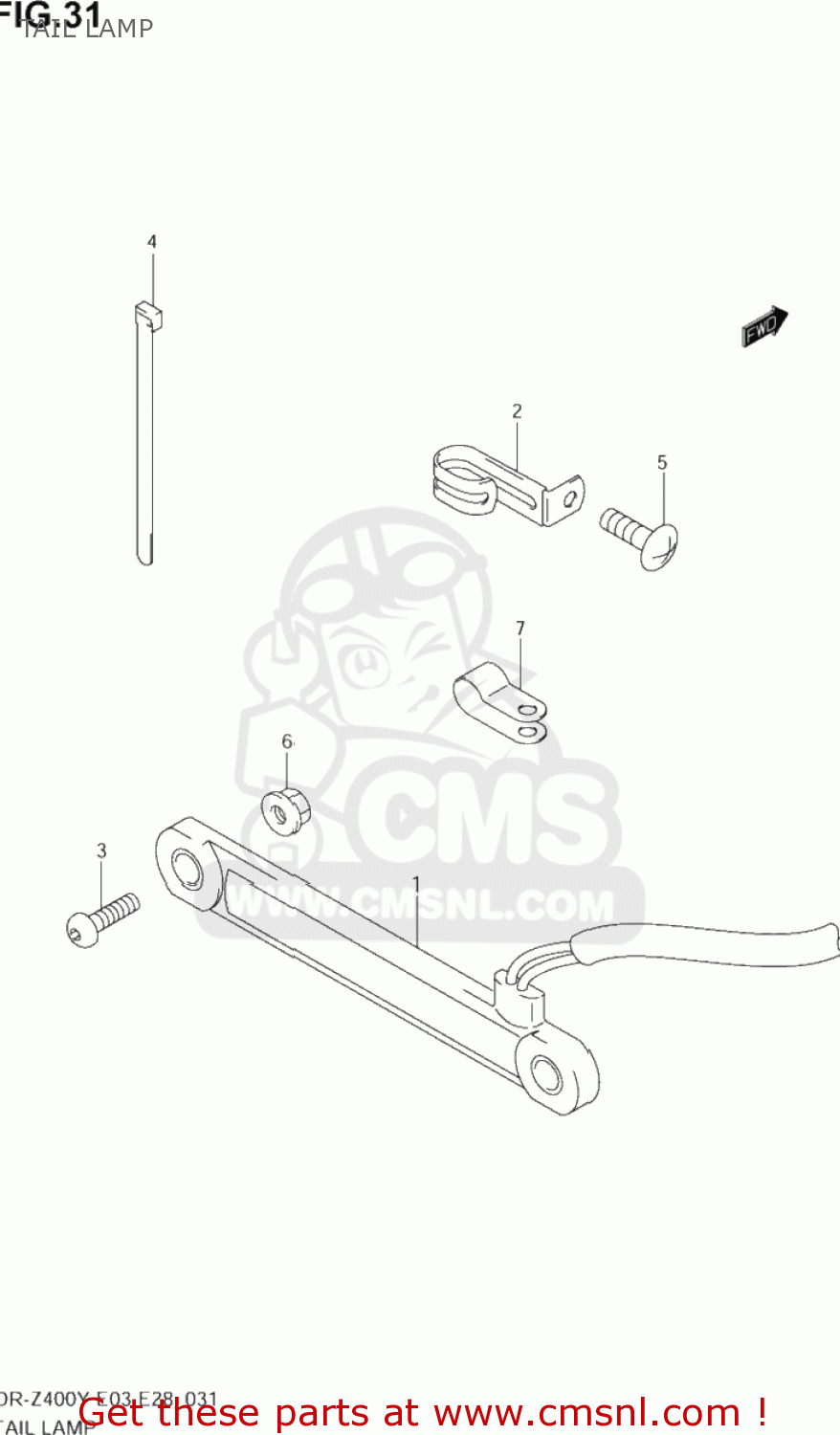

Tail lamp diagram DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

TAIL LAMP DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

TAIL LAMP DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

3571029F00
ref: 1

LAMP ASSY,TAIL

€ 159.50

2

3579329F00
ref: 2

CLAMP,TAIL LAMP LEAD

€ 3.50

3

0913905032
ref: 3

SCREW(5X18)

€ 2.50

4

0940714407
ref: 4

CLAMP(L:145)

€ 4.00

5

0354104163
ref: 5
03541-0416A

SCREW

€ 1.50

6

0831931053
ref: 6
08319-3105B

NUT

€ 3.00

7

0940306408
ref: 7

CLAMP

€ 2.50
