CAM CHAIN

DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

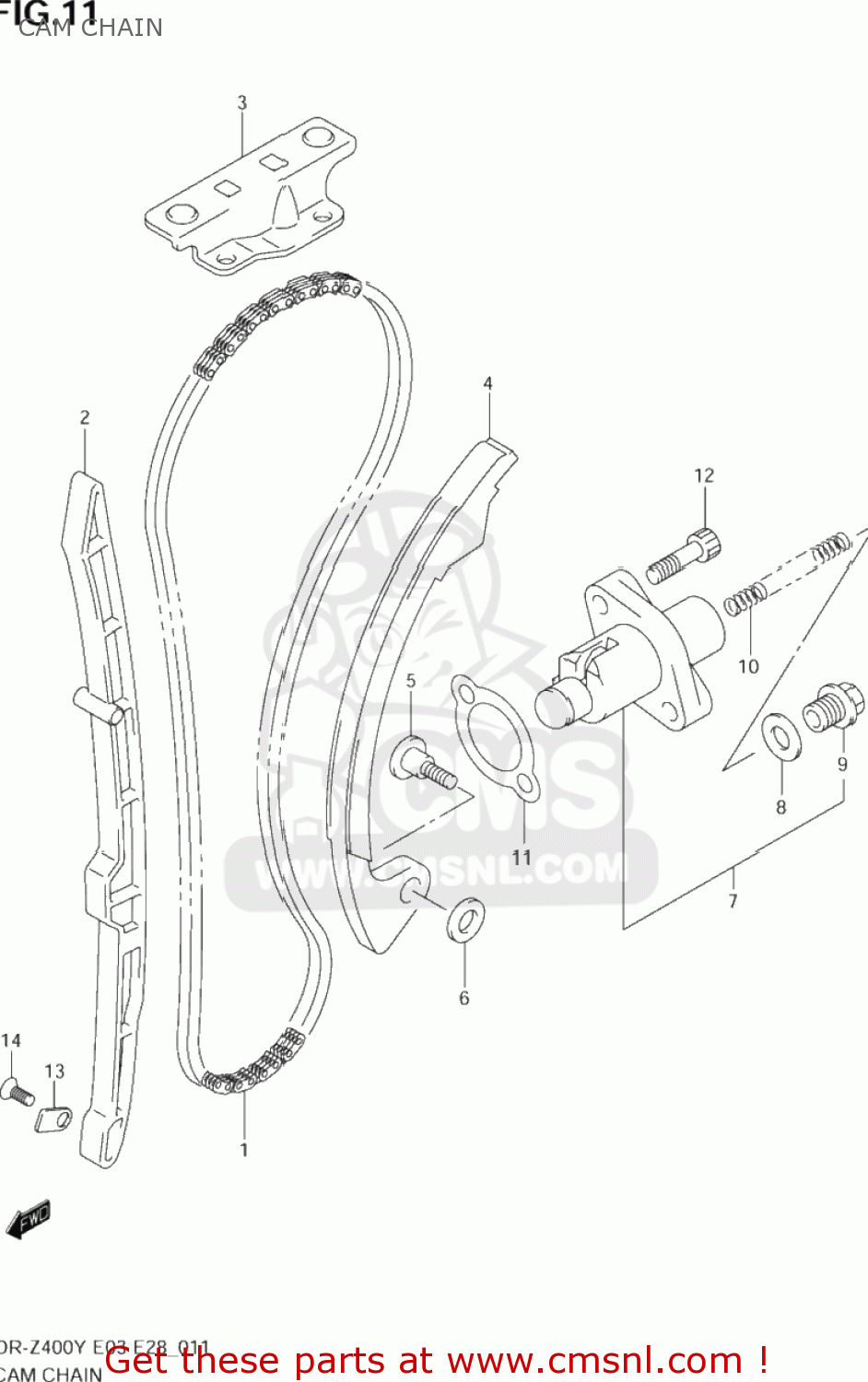

Cam chain diagram DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

CAM CHAIN DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

CAM CHAIN DR-Z400 2003 (K3) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

1276029F00
ref: 1
12760-29F01

CHAIN COMP,CAMSHAFT DRIVE

€ 71.50

2

1277129F00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 20.00

3

1278229F00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 17.00

4-1

1283029810
ref: 4-1

TENSIONER AND ADJUSTER SET

€ 82.00

4-1

1283029810
ref: 4-1

TENSIONER AND ADJUSTER SET

€ 82.00

4-2

1281129F10
ref: 4-2

TENSIONER,CAM CHAIN

€ 38.50

5

1281235C00
ref: 5

BOLT,CAM CHAIN TENSIONER

€ 7.00

6

0821106181
ref: 6

WASHER

€ 2.00

7-1

1283029F01
ref: 7-1

ADJUSTER ASSY,TENSIONER

€ 79.50

7-2

1283029F10
ref: 7-2

ADJUSTER ASSY,TENSIONER

€ 80.50

8-1

1283733E00
ref: 8-1

GASKET,TENSIONER ADJUSTER

€ 2.50

8-2

1283724F10
ref: 8-2

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

9-1

1283433E00
ref: 9-1

PLUG,TENSIONER ADJUSTER

€ 2.50

9-2

1283305A00
ref: 9-2

PLUG,FR TENSIONER ADJ

€ 9.00

10

1283139F00
ref: 10

SPRING

€ 3.50

11

1283724A10
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

12

0713006253
ref: 12
07130-0625B

BOLT,CL.COVER

€ 3.00

13

1277324F00
ref: 13

RETAINER,CAM CHAIN GUIDE NO.1

€ 2.00

14

0912606011
ref: 14

SCREW(6X12)

€ 2.00
