BATTERY

DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

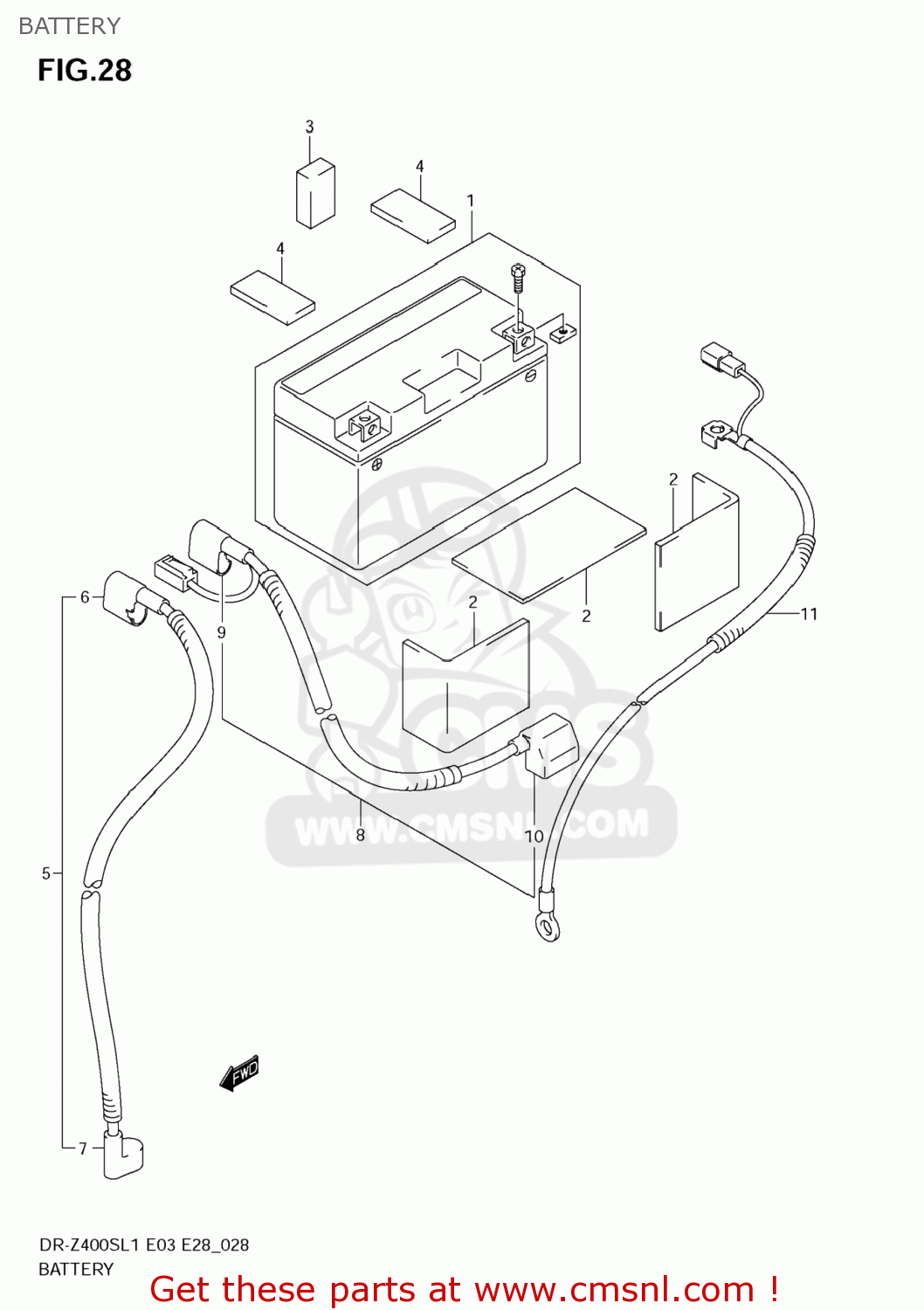

Battery diagram DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

BATTERY DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

BATTERY DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

3361029F20
ref: 1

BATTERY ASSY(YT7B-BS,12V6AH)

€ 95.50

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3

3365208420
ref: 3
33651-37000

PROTECTOR,BATTERY(70X100X6)

€ 6.00

3

3365208420
ref: 3
33651-37000

PROTECTOR,BATTERY(70X100X6)

€ 6.00

4

5155315D40
ref: 4

CUSHION(50X42X2.0)

€ 6.00

4

5155315D40
ref: 4

CUSHION(50X42X2.0)

€ 6.00

5

3381029F00
ref: 5

WIRE,STARTER MOTOR LEAD

€ 29.00

6

3186129F00
ref: 6

CAP,STARTER RELAY

€ 4.50

7

3186129F20
ref: 7

CAP,STARTER MOTOR

€ 4.50

8

3382029F00
ref: 8

WIRE,BATTERY PLUS LEAD

€ 31.50

9

3186129F10
ref: 9

CAP,STARTER RELAY

€ 4.50

10

3362429F00
ref: 10

CAP,BATTERY PLUS

€ 4.00

11

3386029F00
ref: 11

WIRE,BATTERY MINUS LEAD

€ 24.00
