CAM CHAIN

DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

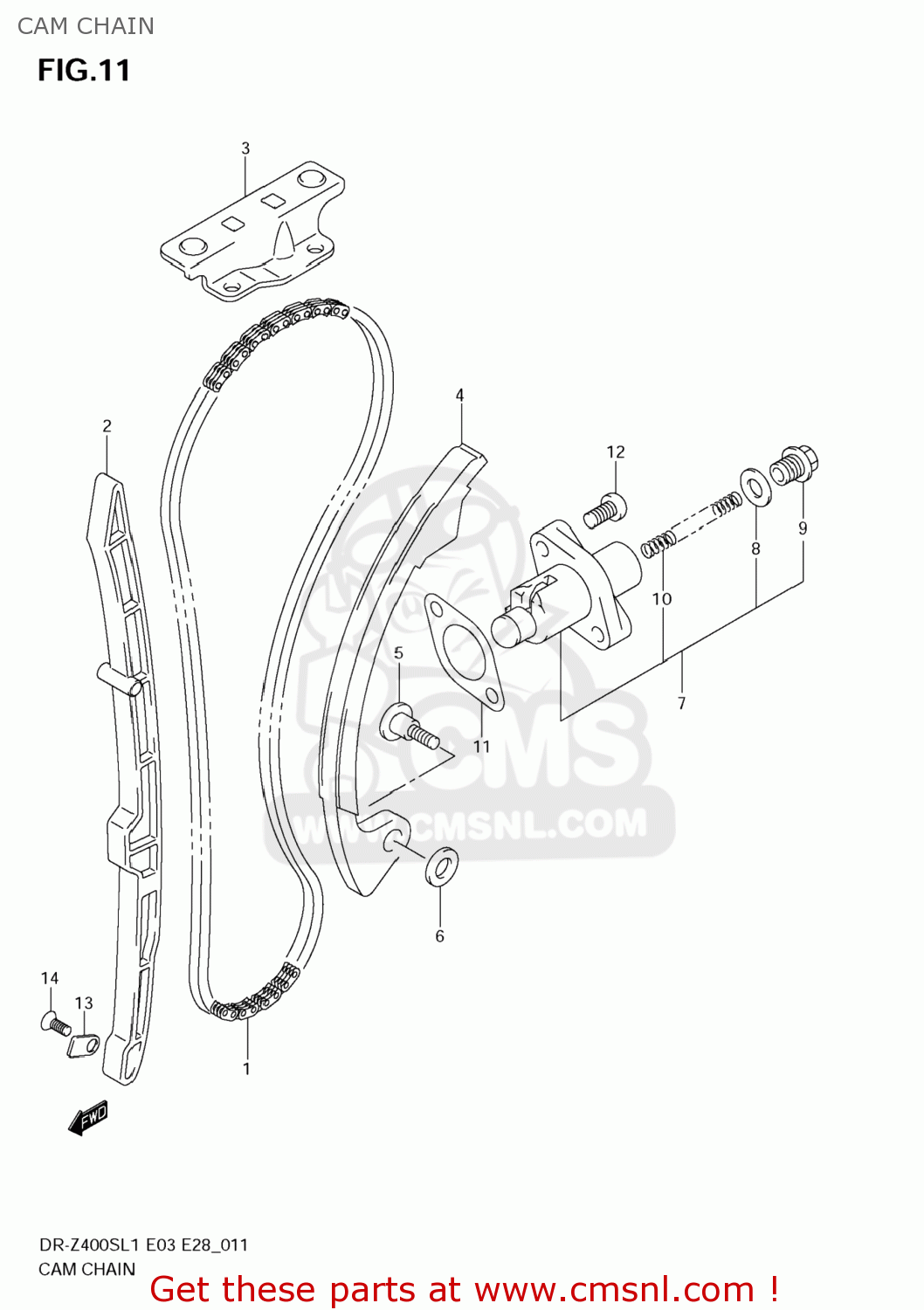

Cam chain diagram DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

CAM CHAIN DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

CAM CHAIN DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

1276029F01
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 71.50

2

1277129F00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 20.00

3

1278229F00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 17.00

4

1281129F10
ref: 4

TENSIONER,CAM CHAIN

€ 38.50

5

1281235C00
ref: 5

BOLT,CAM CHAIN TENSIONER

€ 7.00

6

0821106181
ref: 6

WASHER

€ 2.00

7

1283029F10
ref: 7

ADJUSTER ASSY,TENSIONER

€ 80.50

8

1283724F10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

9

1283305A00
ref: 9

PLUG,FR TENSIONER ADJ

€ 9.00

10

1283139F00
ref: 10

SPRING

€ 3.50

11

1283724A10
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

11

1283724A10
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

12

071300625A
ref: 12

BOLT

€ 2.50

13

1277324F00
ref: 13

RETAINER,CAM CHAIN GUIDE NO.1

€ 2.00

14

0912606011
ref: 14

SCREW(6X12)

€ 2.00
