REAR SHOCK ABSORBER (DR-Z400SL1 E28)

DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

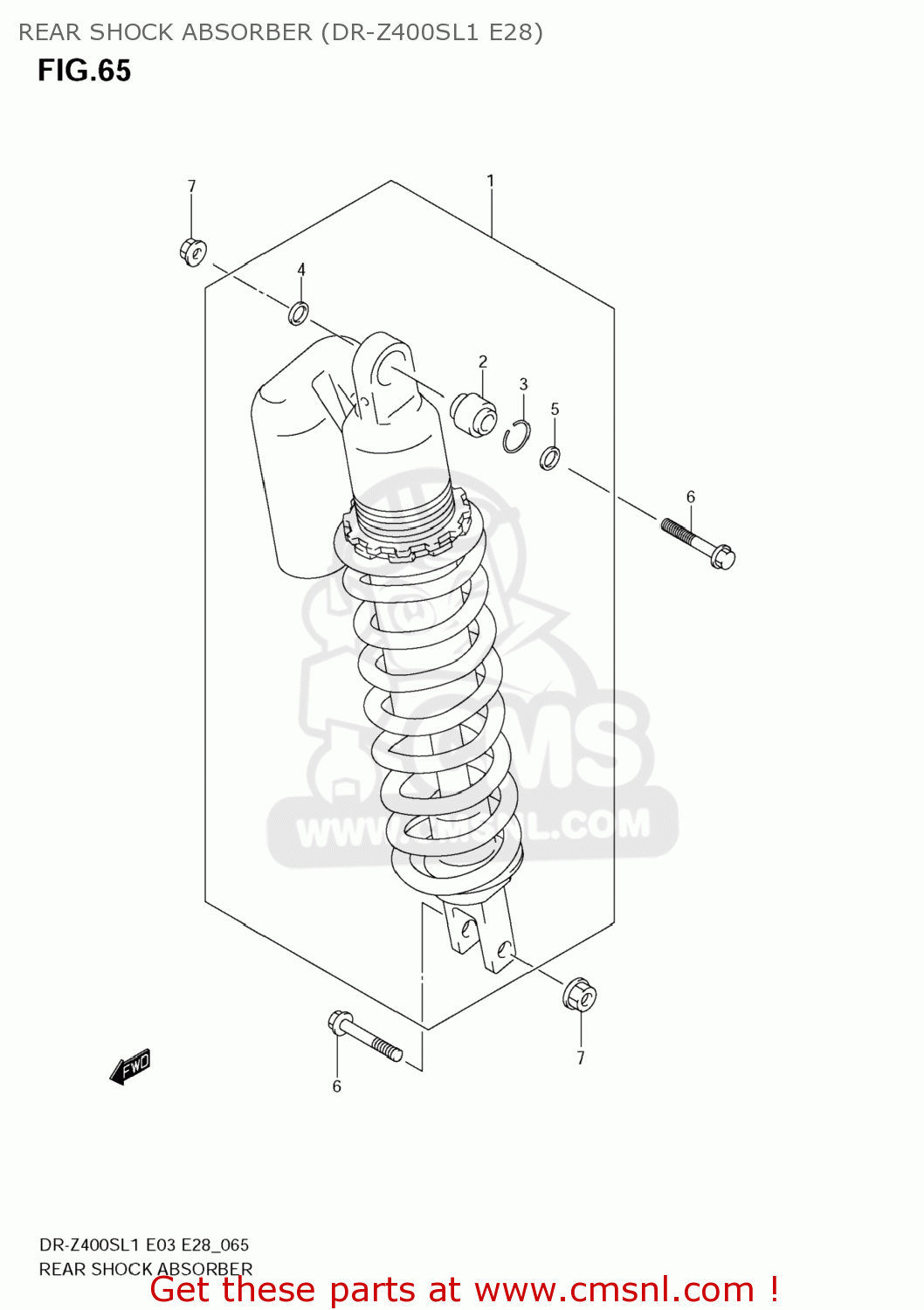

Rear shock absorber (dr-z400sl1 e28) diagram DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

6210029F8028W
ref: 1

ABSORBER ASSY,RR SHOCK(WHITE)

€ 1,731.00

6210029F8028W
ref: 1

ABSORBER ASSY,RR SHOCK(WHITE)

€ 1,731.00

6217536E00
ref: 2

BEARING,RR SHOCK ABSORBER

€ 55.50

6227727C40
ref: 3

RING,STOPPER

€ 2.00

6222636E00
ref: 4

SEAL,DUST UPR,R

€ 5.00

6222636E10
ref: 5

SEAL,DUST UPR,L

€ 5.00

0910310149
ref: 6

BOLT(10X47.5)

€ 3.50

0915910115
ref: 7

NUT

€ 4.00
