CRANKSHAFT

DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

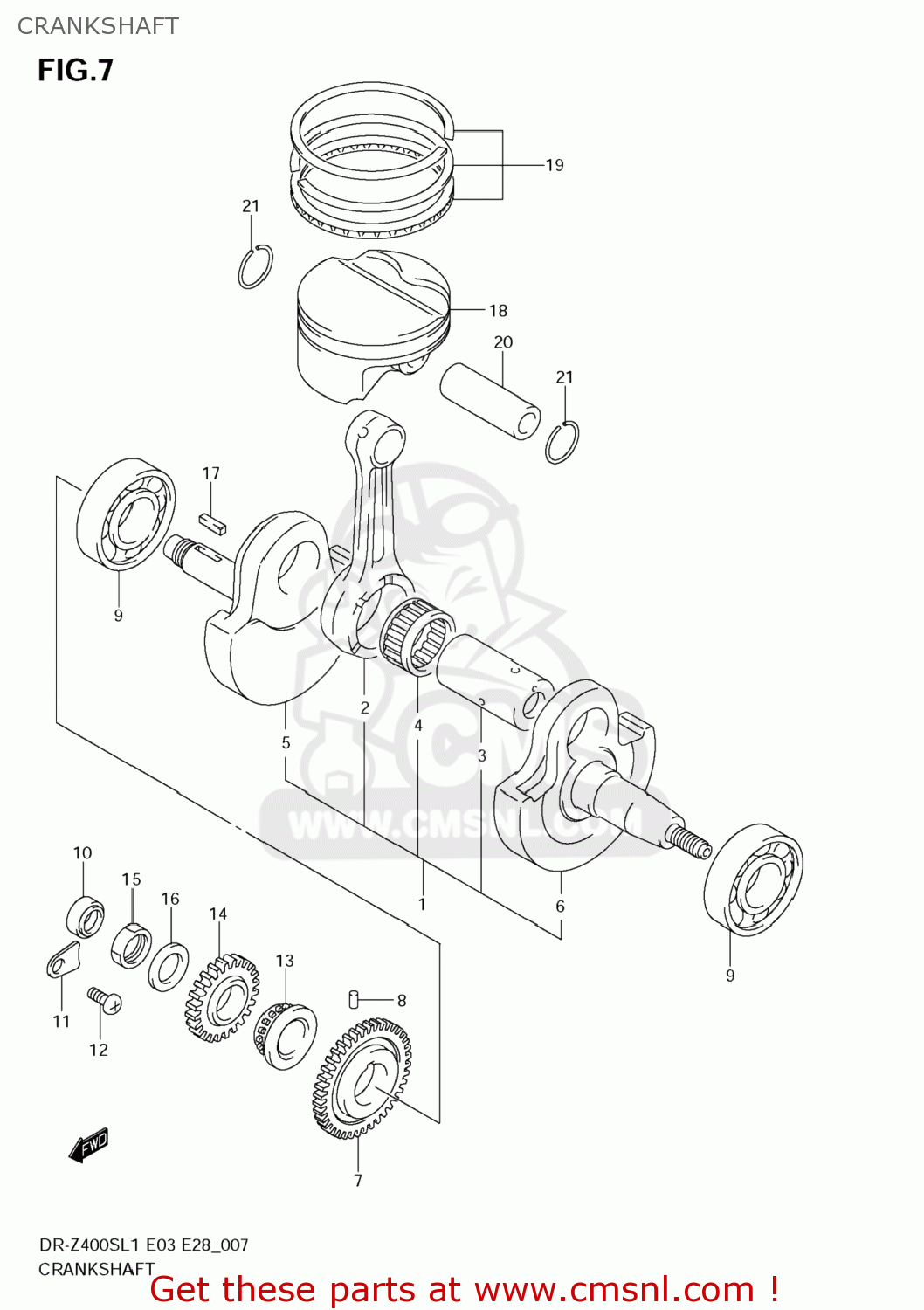

Crankshaft diagram DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S

CRANKSHAFT DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S
CRANKSHAFT DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S
CRANKSHAFT DR-Z400S 2011 (L1) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
1220007G02
ref: 1
CRANKSHAFT ASSY
€ 520.00
2
1216029F020B0
ref: 2
CONNECTING ROD ASSY
1216029F020B0
€ 112.50
3
1221029F11
ref: 3
PIN,CRANK
1221029F11
€ 52.00
4
09263350440B0
ref: 4
BEARING(35X43X22)
09263350440B0
€ 60.50
5
1222107G01
ref: 5
CRANKSHAFT,R
€ 255.50
6
1226107G00
ref: 6
CRANKSHAFT,L
€ 213.00
7
1266129F00
ref: 7
GEAR,CRANK BALANCER DRIVE
1266129F00
€ 93.00
8
0926105005
ref: 8
PIN(5X8)
0926105005
€ 2.00
9
0926230100
ref: 9
BEARING(30X72X18)
0926230100
€ 61.50
10
0928214003
ref: 10
SEAL,OIL(14X24X6)
0928214003
€ 8.50
11
2474218A00
ref: 11
RETAINER,BEARING
2474218A00
€ 2.00
11
2474218A00
ref: 11
RETAINER,BEARING
2474218A00
€ 2.00
12
021120612A
ref: 12
SCREW
021120612A
€ 1.50
13
1273129F10
ref: 13
SPROCKET,CAM CHAIN DRIVE
1273129F10
€ 40.50
14
2111129F10
ref: 14
GEAR,PRIMARY DRIVE
2111129F10
€ 53.50
15
0914018012
ref: 15
NUT
0914018012
€ 8.50
16
0916418008
ref: 16
WASHER
€ 6.00
17
0942105002
ref: 17
KEY
0942105002
€ 5.50
18
1211129F000F0
ref: 18
PISTON
1211129F000F0
€ 104.50
19
1214029F00
ref: 19
RING SET,PISTON
1214029F00
€ 62.50
20
1215124F10
ref: 20
PIN,PISTON
1215124F10
€ 17.50
21
0938120004
ref: 21
CIRCLIP,PISTON PIN
0938120004
€ 2.00
