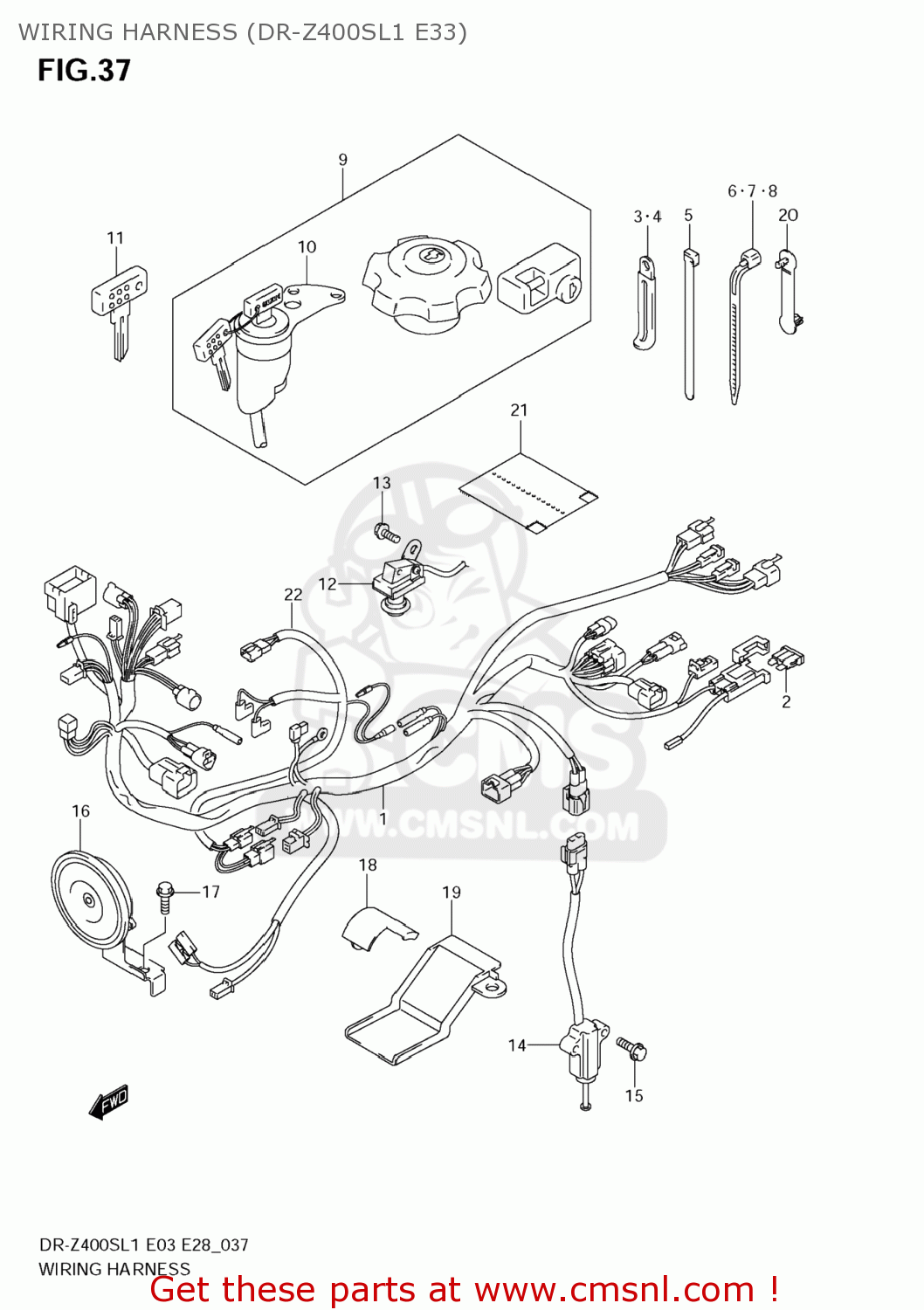

WIRING HARNESS (DR-Z400SL1 E33)

ref

part #

description

quantity

1

3661029FF0
ref: 1

HARNESS,WIRING

€ 254.00

2

0948120101
ref: 2

FUSE(20A)

€ 2.00

3

0940406429
ref: 3

CLAMP(L:45)

€ 2.50

4

0940406433
ref: 4

CLAMP(L:80)

€ 3.00

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

0940714403
ref: 6

CLAMP(L:125)

€ 2.50

7

0940718402
ref: 7

CLAMP(L:165)

€ 2.50

8

0940725401
ref: 8

CLAMP(L:235)

€ 4.00

9

3700029831
ref: 9

LOCK SET

€ 152.50

10

3711029F00
ref: 10

SWITCH ASSY,IGNITION

€ 85.50

11-1

3714601F00
ref: 11-1

KEY,BLANK(TYPE:C)

€ 5.50

11-2

3714601F10
ref: 11-2

KEY,BLANK(TYPE:D)

€ 5.50

11-3

3714601F20
ref: 11-3

KEY,BLANK(TYPE:E)

€ 5.50

11-4

3714601F30
ref: 11-4

KEY,BLANK(TYPE:F)

€ 5.50

12

3774029F00
ref: 12

SWITCH ASSY

€ 92.50

13

021620608B
ref: 13

SCREW

€ 1.50

14

3784011X50
ref: 14

SWITCH ASSY,SIDE STAND

€ 76.00

15

015500616B
ref: 15

BOLT

€ 2.50

16

3850029F01
ref: 16

HORN ASSY

€ 53.00

17

015500612B
ref: 17

BOLT

€ 2.50

18

3661129F10
ref: 18

PROTECTOR,WIRING HARNESS

€ 4.50

19

3661129F00
ref: 19

PROTECTOR,WIRING HARNESS

€ 6.00

20

3665148E00
ref: 20

CLAMP(L:63)

€ 2.50

21

3661815D20
ref: 21

COVER,WIRING HARNESS

€ 12.00

22

3685629F00
ref: 22

WIRE,CARB HEATER

€ 30.50
