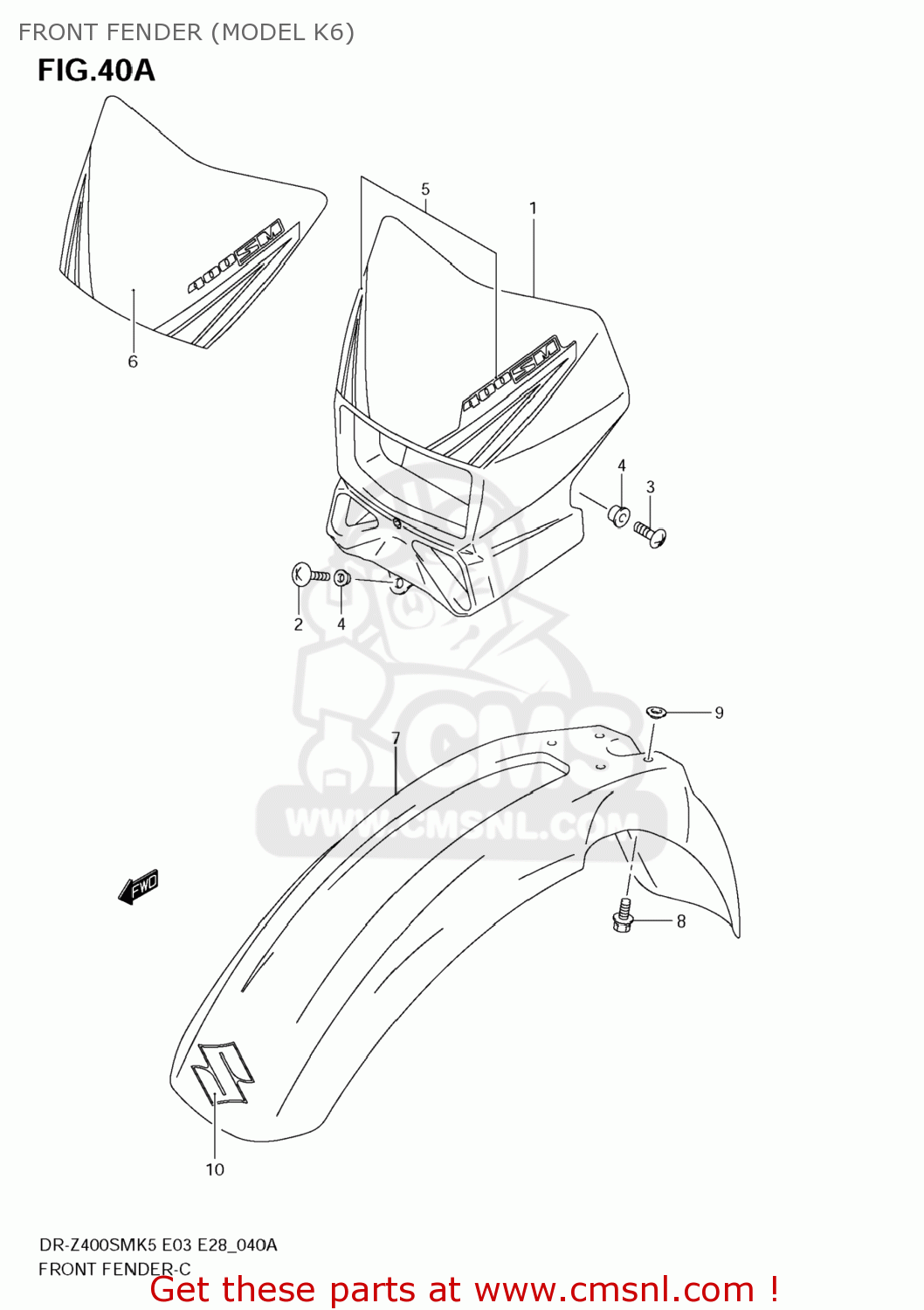

FRONT FENDER (MODEL K6)

DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

Front fender (model k6) diagram DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

FRONT FENDER (MODEL K6) DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

FRONT FENDER (MODEL K6) DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1-1

5181129F10019
ref: 1-1
51811-29F50-019

COVER,HEADLAMP

€ 54.50

1-2

5181129F10YU1
ref: 1-2
51811-29F50-YU1

COVER,HEADLAMP

€ 54.50

2

021420512B
ref: 2

SCREW

€ 1.50

3

021420612B
ref: 3

SCREW

€ 2.00

4

0916906033
ref: 4

WASHER

€ 1.50

5

6872029F30CNS
ref: 5

TAPE SET,HEADLAMP HOUSING

€ 21.50

6

6872529F50CNP
ref: 6

TAPE,HEADLAMP HOUSING

€ 48.50

7-1

5311129F00019
ref: 7-1

FENDER,FR

€ 105.50

7-2

5311129F00YU1
ref: 7-2

FENDER,FR

€ 79.00

8

0911606170
ref: 8

BOLT(6X16)

€ 3.00

9

0916906073
ref: 9

WASHER

€ 4.00

10-1

6815107G10YD8
ref: 10-1

EMBLEM,S

€ 10.50

10-2

6815107G10YCF
ref: 10-2

EMBLEM,S

€ 10.50
