REAR MASTER CYLINDER

DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

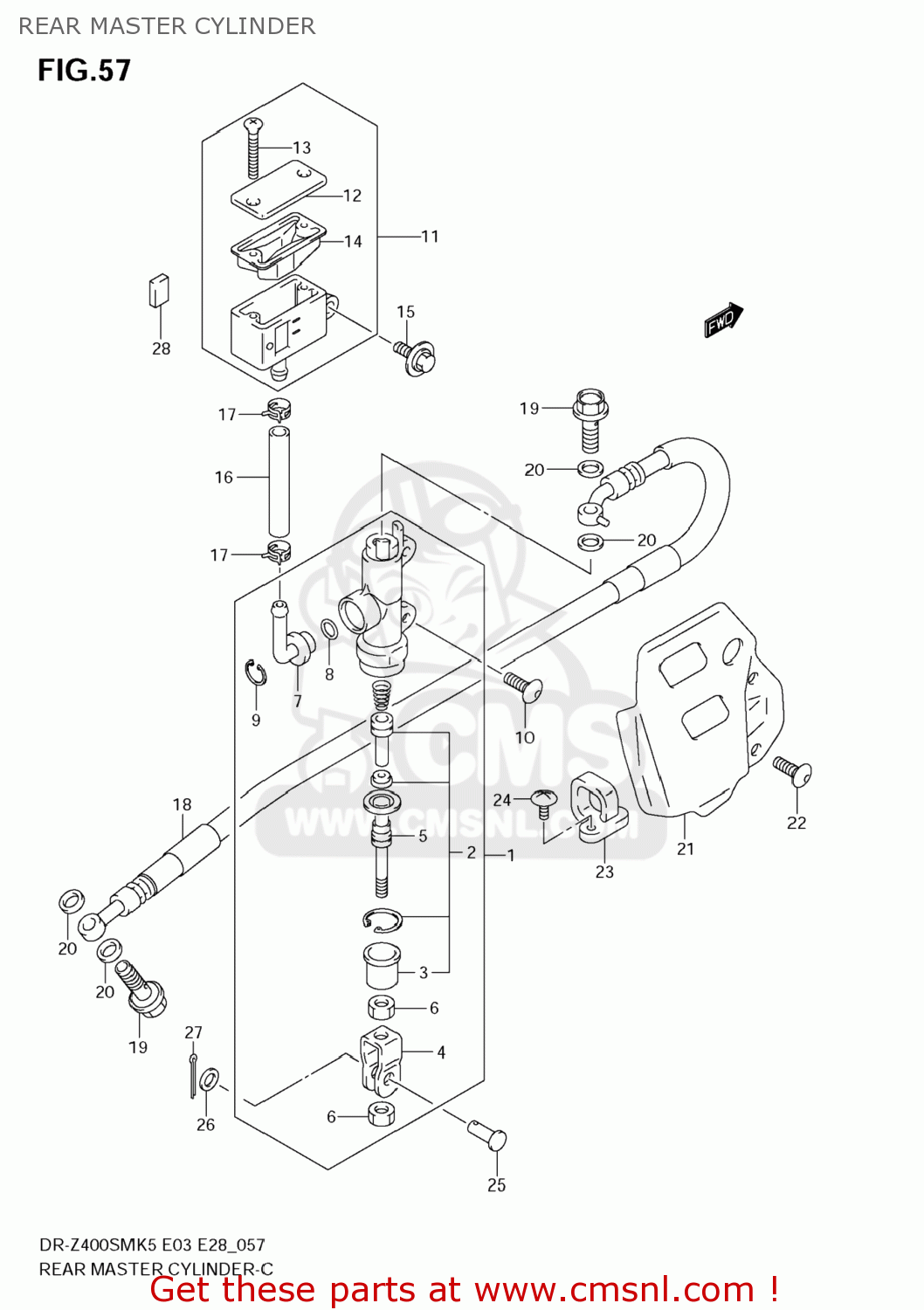

Rear master cylinder diagram DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

REAR MASTER CYLINDER DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM
REAR MASTER CYLINDER DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM
REAR MASTER CYLINDER DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
6960029F00
ref: 1
CYLINDER ASSY,RR MASTER
6960029F00
€ 131.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969229F00
ref: 4
YOKE
6969229F00
€ 13.50
5
6967036E00
ref: 5
ROD,PUSH
6967036E00
€ 15.00
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
6967200B20
€ 5.00
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
6967400B20
€ 3.00
10
0913906067
ref: 10
SCREW(6X16)
0913906067
€ 3.00
11
6974044E00
ref: 11
TANK ASSY,RESERVOIR
6974044E00
€ 37.00
12
6966944E00
ref: 12
CAP
6966944E00
€ 14.50
13
6968936E00
ref: 13
SCREW
6968936E00
€ 2.00
14
5966714500
ref: 14
DIAPHRAGM
5966714500
€ 6.50
15
0911606170
ref: 15
BOLT(6X16)
0911606170
€ 3.00
16
5973142E00
ref: 16
HOSE,FR RESERVOIR TANK
5973142E00
€ 8.50
17
6973500B20
ref: 17
CLAMP,RESERVOIR HOSE
6973500B20
€ 3.00
18
6948029F11
ref: 18
HOSE,RR BRAKE
€ 66.00
19
0936010062
ref: 19
BOLT UNION
0936010062
€ 5.00
20
0916110009
ref: 20
WASHER(10X15X1.5)
0916110009
€ 2.00
21
4357136E20
ref: 21
GUARD,RR MASTER CYLINDER
4357136E20
€ 24.50
22
0913906067
ref: 22
SCREW(6X16)
0913906067
€ 3.00
23
6119627C30
ref: 23
GUIDE,RR BRAKE
6119627C30
€ 5.50
24
021420510B
ref: 24
SCREW
021420510B
€ 2.50
25
0920008048
ref: 25
PIN(8X20)
0920008048
€ 3.00
26
0916008090
ref: 26
WASHER(8.5X14X1.6)
0916008090
€ 2.50
27
041112015A
ref: 27
PIN
041112015A
€ 1.50
28
6974929F00
ref: 28
CUSHION,RR RESERVOIR TANK
6974929F00
€ 3.50
