FUEL COCK

DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

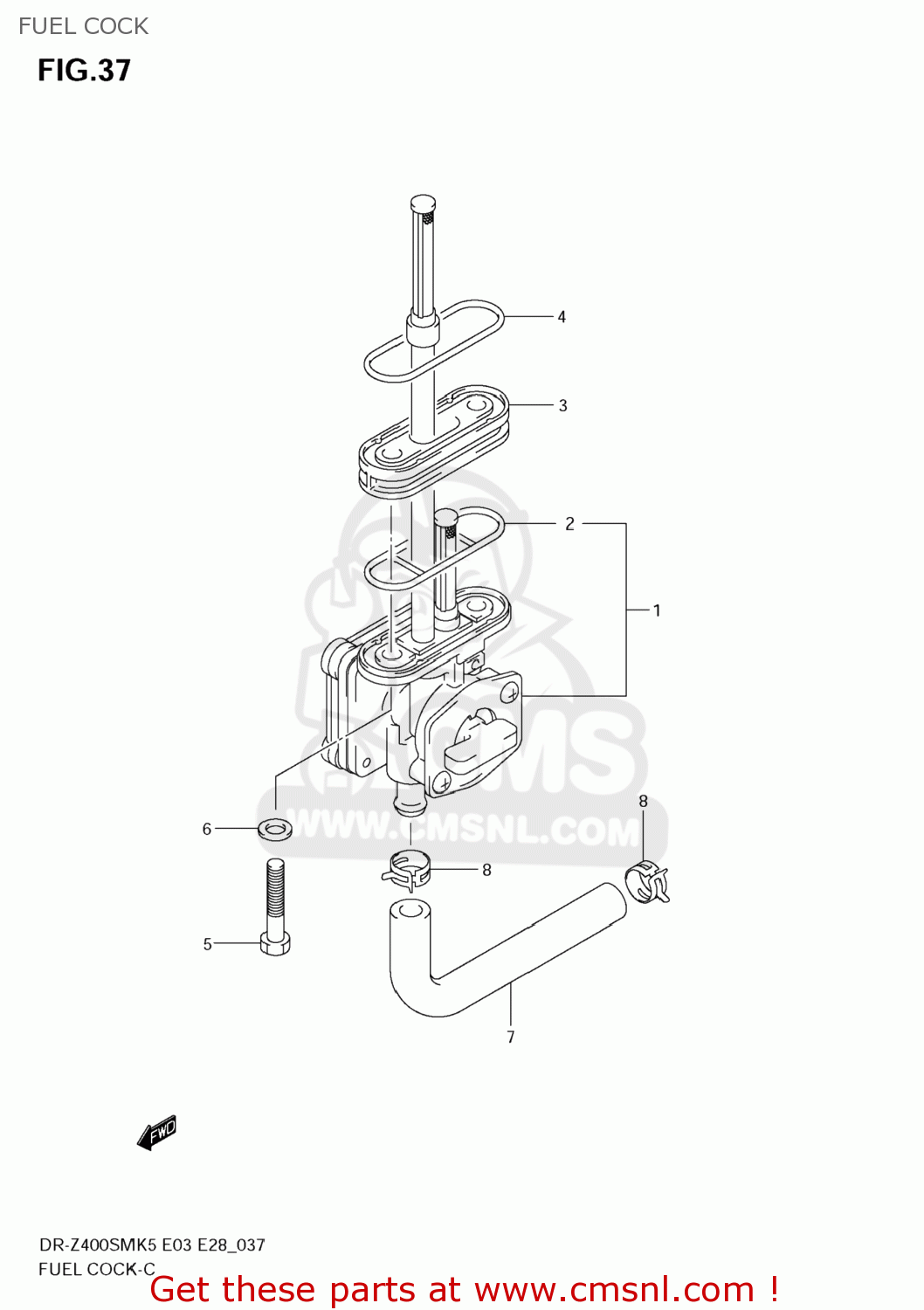

Fuel cock diagram DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

4430029F20
ref: 1

COCK ASSY,FUEL

€ 103.00

4434887420
ref: 2

GASKET,JOINT (NAS)

€ 5.00

4436529F00
ref: 3

SPACER,FUEL COCK

€ 24.00

4436614A00
ref: 4

GASKET,FUEL COCK (NAS)

€ 2.50

0912806010
ref: 5

SCREW(6X30)

€ 1.50

0916806026
ref: 6

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

7-1

4442129F30
ref: 7-1
44421-29FT0

HOSE,FUEL

€ 7.50

7-2

4442129F50
ref: 7-2

HOSE,FUEL

€ 12.50

8-1

0940111413
ref: 8-1

CLIP

€ 2.50

8-2

0940111415
ref: 8-2

CLIP

€ 2.50
