REAR SWINGING ARM

DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

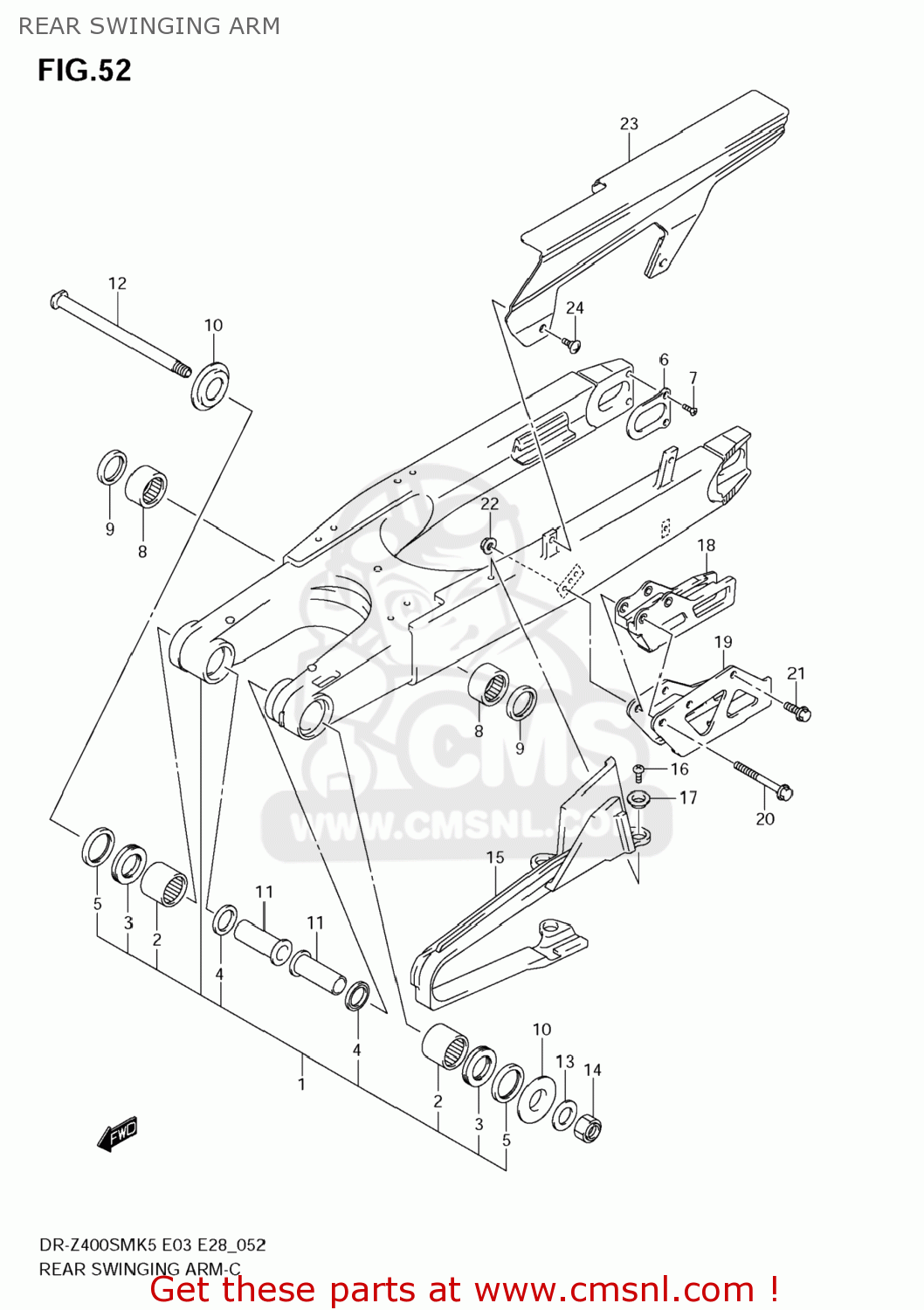

Rear swinging arm diagram DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM

REAR SWINGING ARM DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM
REAR SWINGING ARM DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM
REAR SWINGING ARM DR-Z400SM 2006 (K6) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
6100029F30
ref: 1
SWINGINGARM ASSY,RR
6100029F30
€ 1,133.50
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
0926322064
ref: 3
BEARING(22X35X2)
0926322064
€ 19.00
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
0928522001
€ 5.00
5
6126236E00
ref: 5
SEAL,RR SWGARM PIVOT OUTER
6126236E00
€ 3.50
6
6112837E00
ref: 6
PLATE,SWING ARM RR
€ 14.00
7
021220410B
ref: 7
SCREW
021220410B
€ 2.50
8
0926320086
ref: 8
BEARING(20X27X15)
0926320086
€ 12.50
9
6262414500
ref: 9
SEAL,CUSHION LEVER DUST
6262414500
€ 3.50
10
6125044E00
ref: 10
SPACER,SWINGINGARM PIVOT OUTER
6125044E00
€ 8.00
11
6125236E00
ref: 11
SPACER,SWGARM PIVOT INNER
6125236E00
€ 20.00
12
6121129F00
ref: 12
SHAFT,RR SWINGINGARM PIVOT
6121129F00
€ 34.50
13
083220116B
ref: 13
WASHER
083220116B
€ 2.00
14
0915916007
ref: 14
NUT
0915916007
€ 10.50
15
6127329F20
ref: 15
BUFFER,CHAIN TOUCH DEFENSE
6127329F20
€ 43.50
16
021120508B
ref: 16
SCREW
021120508B
€ 2.00
17
0916905022
ref: 17
WASHER
0916905022
€ 3.50
18
6134135G00
ref: 18
GUIDE,CHAIN
6134135G00
€ 43.00
19
6134237F00
ref: 19
PLATE,CHAIN GUIDE
6134237F00
€ 31.00
20
0910306244
ref: 20
BOLT(6X50)
0910306244
€ 2.50
21
0910306233
ref: 21
BOLT(6X12)
0910306233
€ 2.00
22
083193106B
ref: 22
NUT
083193106B
€ 2.50
23
6131034E00
ref: 23
CASE,CHAIN
6131034E00
€ 44.00
24
0913906083
ref: 24
SCREW(6X16)
0913906083
€ 2.50
