FRAME

DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

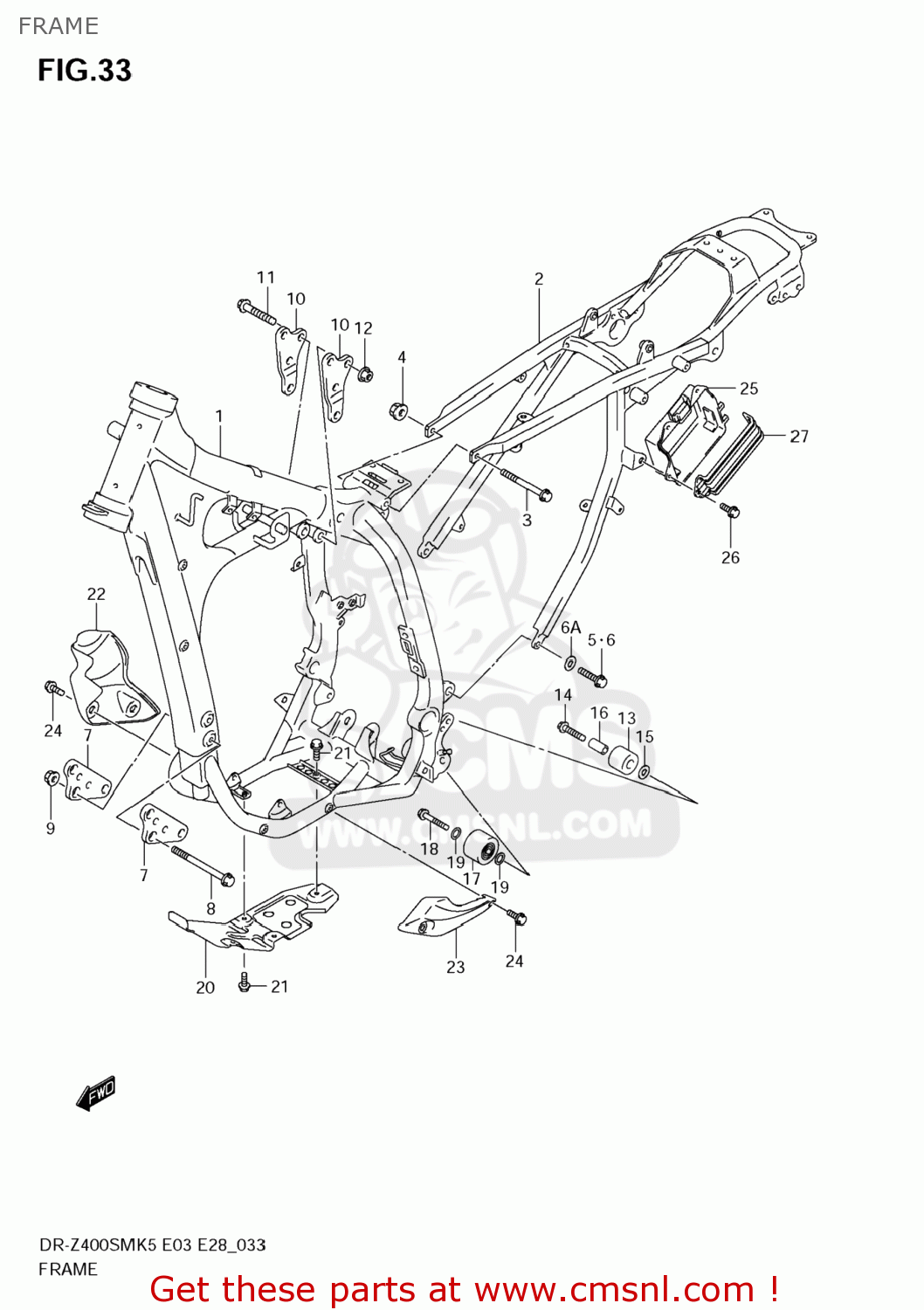

Frame diagram DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

FRAME DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
FRAME DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
FRAME DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1-1
4110029F30YU8
ref: 1-1
41100-29F32-YU8
FRAME (GRAY)
€ 1,391.50
1-2
4110029F32019
ref: 1-2
FRAME(BLACK)
€ 1,245.50
2
4120029F60
ref: 2
41200-29F70
RAIL, SEAT
4120029F60
€ 750.50
3
0910308098
ref: 3
BOLT(8X115)
0910308098
€ 3.00
4
083193108A
ref: 4
NUT
083193108A
€ 2.50
5-1
0910408040
ref: 5-1
BOLT(8X16)
€ 3.50
5-2
0910408035
ref: 5-2
BOLT(8X18)
0910408035
€ 2.00
6A
0916008120
ref: 6A
WASHER(8.5X18X2)
0916008120
€ 2.50
6-1
0910408039
ref: 6-1
BOLT(8X19.5)
€ 4.00
6-2
0910308431
ref: 6-2
BOLT(8X20)
0910308431
€ 3.00
7
4191129F00
ref: 7
PLATE,ENG MTG FR
4191129F00
€ 25.00
8
0910308363
ref: 8
BOLT(8X90)
0910308363
€ 7.50
9
083193108A
ref: 9
NUT
083193108A
€ 2.50
10
4199329F10
ref: 10
PLATE,HEAD MTG RR
4199329F10
€ 19.00
11
0910308081
ref: 11
BOLT(8X50)
0910308081
€ 3.50
12
083193108A
ref: 12
NUT
083193108A
€ 2.50
13
4391113E00
ref: 13
ROLLER,CHAIN CONTROL UPR
4391113E00
€ 10.00
14
0910308083
ref: 14
BOLT(8X41)
0910308083
€ 3.50
15
0821108201
ref: 15
WASHER
0821108201
€ 2.00
16
0918008215
ref: 16
SPACER(8.6X12.2X26.5)
0918008215
€ 4.00
17
4391027C11
ref: 17
ROLLER,CHAIN
4391027C11
€ 36.50
18
0910308083
ref: 18
BOLT(8X41)
0910308083
€ 3.50
19
0918108111
ref: 19
SHIM(8X12X1)
0918108111
€ 2.00
20
4251029F00
ref: 20
PROTECTOR,ENGINE
4251029F00
€ 81.50
21
015500612B
ref: 21
BOLT
015500612B
€ 2.50
22
4252129F00
ref: 22
42520-29810
GUARD,WATER PUMP
4252129F00
€ 13.50
23
4253129F00
ref: 23
42530-29810
GUARD,MAG COVER
4253129F00
€ 13.50
24-1
0911108087
ref: 24-1
BOLT(8X16.5)
0911108087
€ 3.00
24-2
0911108096
ref: 24-2
BOLT(8X16.5)
0911108096
€ 3.00
25
4154129F00
ref: 25
HOLDER,BATTERY
4154129F00
€ 28.50
26
0911106072
ref: 26
BOLT(6X17.8)
0911106072
€ 2.00
27
4156129F00
ref: 27
BAND,BATTERY HOLDER
4156129F00
€ 11.00
