RADIATOR FAN

DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

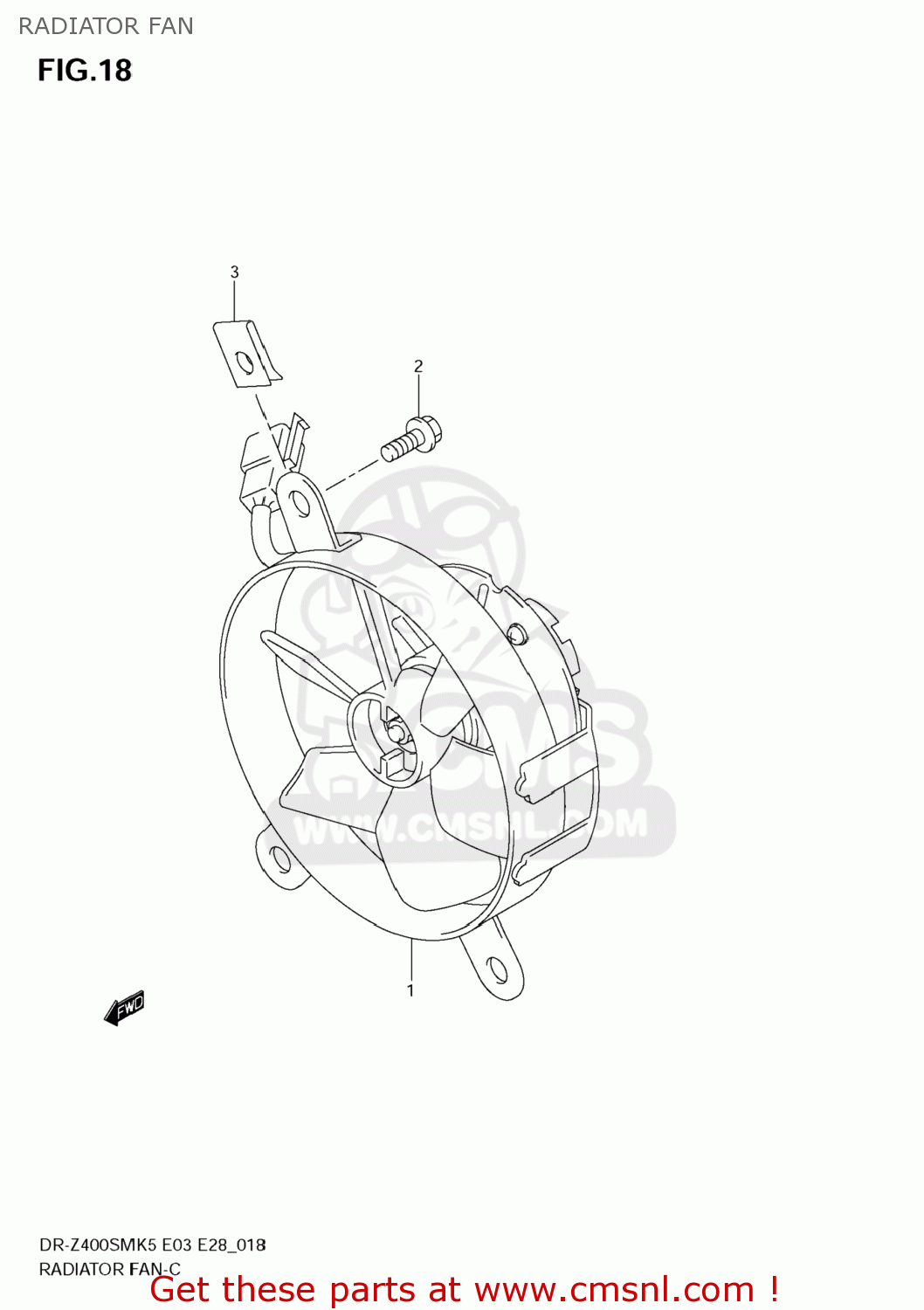

Radiator fan diagram DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

RADIATOR FAN DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

RADIATOR FAN DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

1780029F01
ref: 1

FAN ASSY,RADIATOR

€ 352.00

2

015500610B
ref: 2

BOLT

€ 2.50

3

0914806015
ref: 3

NUT

€ 3.50
