HANDLEBAR (MODEL K7/K8/K9)

DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

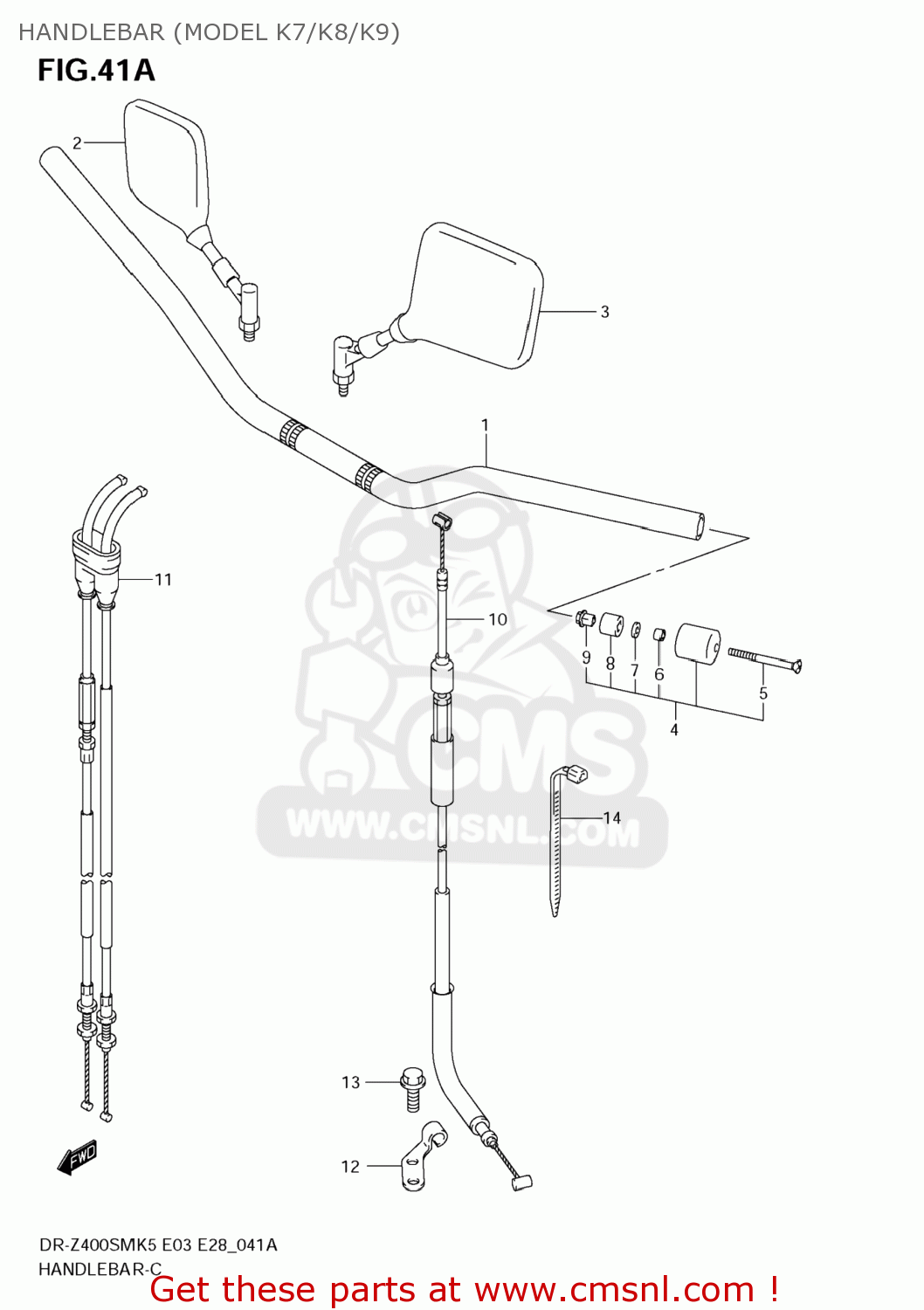

Handlebar (model k7/k8/k9) diagram DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

HANDLEBAR (MODEL K7/K8/K9) DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

HANDLEBAR (MODEL K7/K8/K9) DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

5611129F40
ref: 1

HANDLEBAR

€ 175.50

2

5650006G30
ref: 2

MIRROR ASSY,RR VIEW,R

€ 101.50

3

5660006G30
ref: 3

MIRROR ASSY,RR VIEW,L

€ 102.50

4

5620029841
ref: 4
56200-29842

BALANCER SET,H

€ 26.50

5

021220645B
ref: 5

SCREW

€ 2.00

6

0918006246
ref: 6

SPACER(6.1X8X5.2)

€ 2.50

7

083220106B
ref: 7

WASHER

€ 2.00

8

5627229F00
ref: 8

EXPANDER,HANDLE BALANCER

€ 5.50

9

5627329F01
ref: 9

NUT,BALANCER

€ 10.50

10

5820029F10
ref: 10

CABLE ASSY,CLUTCH

€ 32.50

11

5830129F10
ref: 11
58301-29F11

CABLE SET,THROTTLE

€ 65.00

12

5863429F00
ref: 12

STOPPER,CLUTCH CABLE

€ 8.00

13

015500612B
ref: 13

BOLT

€ 2.50

14-1

0940710404
ref: 14-1

CLAMP(L:100)

€ 4.00

14-2

0940725401
ref: 14-2

CLAMP(L:235)

€ 4.00
