HEADLAMP

DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

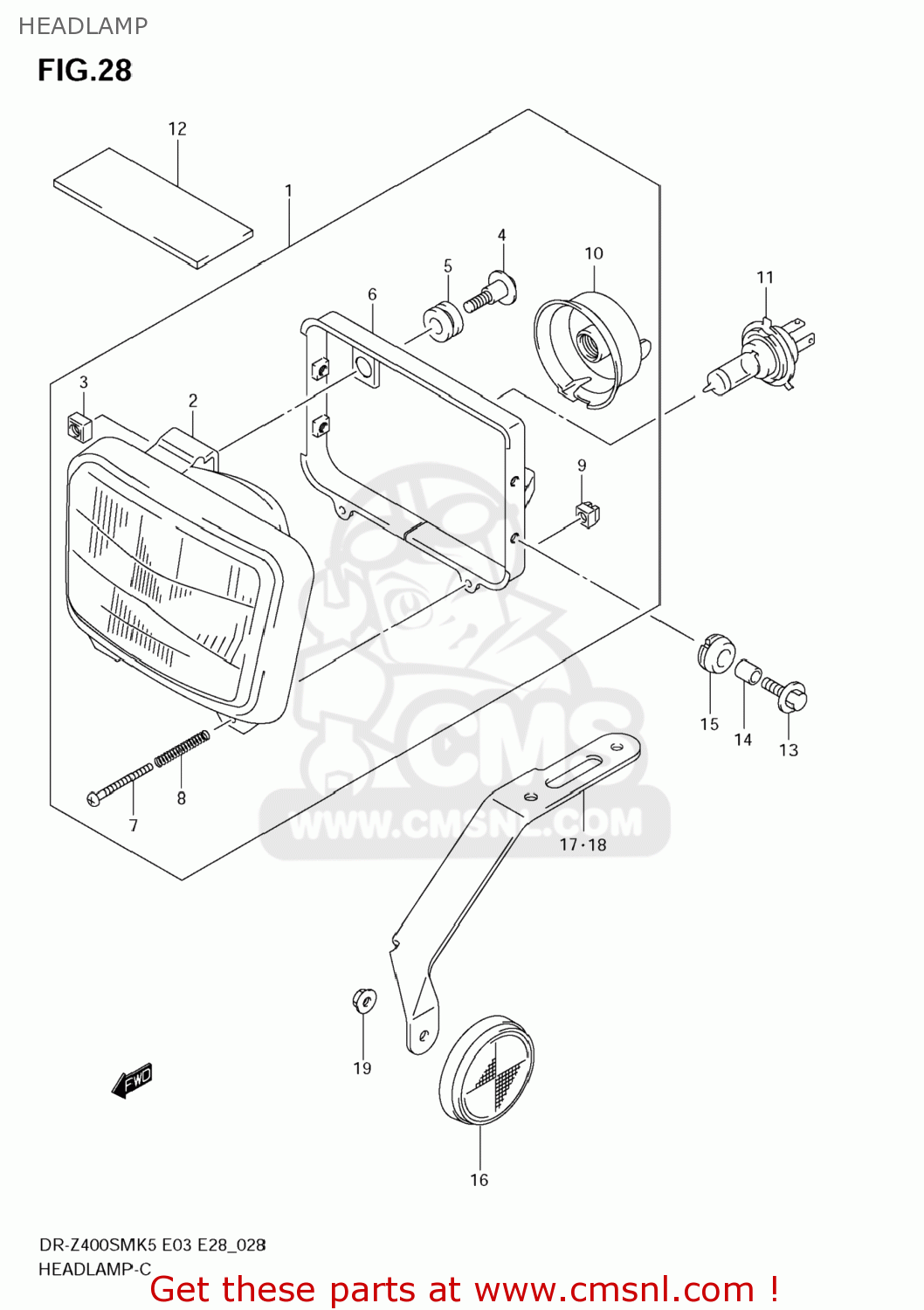

Headlamp diagram DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

HEADLAMP DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
HEADLAMP DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
HEADLAMP DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
3510012EA0999
ref: 1
HEADLAMP ASSY
3510012EA0999
€ 251.50
2
3512112EA0
ref: 2
UNIT ASSY
3512112EA0
€ 142.50
3
3513545900
ref: 3
NUT
3513545900
€ 2.50
4
3513638A00
ref: 4
SCREW,MOUNTING
3513638A00
€ 2.50
5
3513945230
ref: 5
CUSHION
3513945230
€ 1.50
6
3514112EA0
ref: 6
HOUSING
€ 65.00
7
3515112EA0
ref: 7
SCREW,ADJUSTING
3515112EA0
€ 4.00
8
3515412EA0
ref: 8
SPRING,ADJUSTING
€ 3.00
9
3513512E20
ref: 9
NUT,ADJUSTING
3513512E20
€ 2.50
10
3517301440
ref: 10
COVER,SOCKET
3517301440
€ 10.00
11
0947112185
ref: 11
09471-12060
BULB(12V60/55W,H4)
0947112185
€ 8.00
12
3692014D00
ref: 12
PROTECTOR,WIRING HARNESS
3692014D00
€ 5.50
13
0911606167
ref: 13
BOLT(6X20)
0911606167
€ 2.00
14
0918006310
ref: 14
SPACER(6.5X10X10)
0918006310
€ 2.00
15
0932009018
ref: 15
CUSHION
0932009018
€ 2.00
16
3595014A10
ref: 16
35950-14A11
REFLECTOR,REFLEX
3595014A10
€ 11.00
17
3595629F10
ref: 17
BRACKET,FR SIDE RR,R
3595629F10
€ 9.00
18
3595729F10
ref: 18
BRACKET,FR SIDE RR,L
3595729F10
€ 9.00
19
083161005B
ref: 19
NUT
083161005B
€ 2.50
