FUEL TANK (MODEL K5/K6)

DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

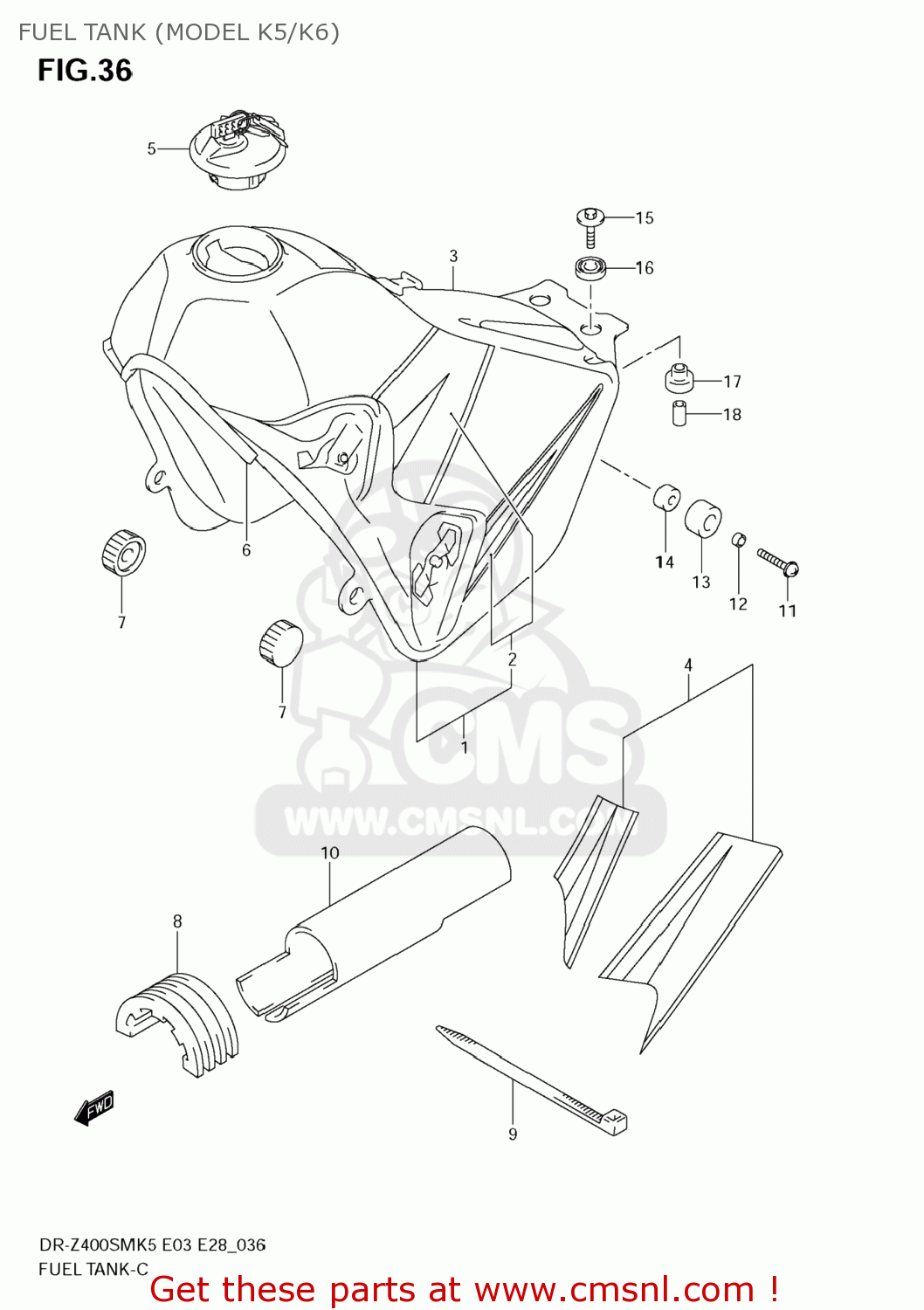

Fuel tank (model k5/k6) diagram DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM

FUEL TANK (MODEL K5/K6) DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
FUEL TANK (MODEL K5/K6) DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
FUEL TANK (MODEL K5/K6) DR-Z400SM 2009 (K9) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1-1
4910029F10019
ref: 1-1
TANK ASSY,FUEL(BLACK)
€ 0.00
1-2
4910029F10YU1
ref: 1-2
TANK ASSY,FUEL(YELLOW)
€ 0.00
1-3
4910029F20019
ref: 1-3
TANK ASSY,FUEL(BLACK)
€ 0.00
1-4
4910029F20YU1
ref: 1-4
TANK ASSY,FUEL(YELLOW)
€ 0.00
2-1
6811029FC0BYK
ref: 2-1
TAPE SET,FUEL TANK
6811029FC0BYK
€ 96.50
2-2
6811029FC0AZR
ref: 2-2
TAPE SET,FUEL TANK
6811029FC0AZR
€ 81.00
3-1
4910029F80019
ref: 3-1
TANK ASSY,FUEL(BLACK)
€ 0.00
3-2
4910029F80YU1
ref: 3-2
TANK ASSY,FUEL(YELLOW)
4910029F80YU1
€ 409.00
3-3
4910029F90019
ref: 3-3
TANK ASSY,FUEL(BLACK)
€ 0.00
3-4
4910029F90YU1
ref: 3-4
TANK ASSY,FUEL(YELLOW)
€ 0.00
4-1
6811029FF0CNM
ref: 4-1
TAPE SET,FUEL TANK
6811029FF0CNM
€ 109.00
4-2
6811029FF0CFK
ref: 4-2
TAPE SET,FUEL TANK
6811029FF0CFK
€ 109.00
5-1
4420029820
ref: 5-1
CAP SET,FUEL TANK
€ 112.50
5-2
4420005820
ref: 5-2
CAP SET,FUEL TANK
4420005820
€ 103.50
6
6824104X5000B
ref: 6
MOLDING
6824104X5000B
€ 23.00
7
0932910016
ref: 7
CUSHION
0932910016
€ 3.00
8
4454129F00
ref: 8
CUSHION,FUEL TANK
€ 21.50
9
0940730402
ref: 9
CLAMP(L:300)
0940730402
€ 3.50
10
4419429F00
ref: 10
SHIELD,FUEL TANK
4419429F00
€ 38.50
11
021121630B
ref: 11
SCREW
€ 2.00
12
0918006215
ref: 12
SPACER(6.5X20X9)
0918006215
€ 5.00
13
4514914D00
ref: 13
CUSHION
4514914D00
€ 3.00
14
0918006306
ref: 14
SPACER(6.5X9X5)
0918006306
€ 2.00
15
0911606172
ref: 15
BOLT(6X30)
0911606172
€ 2.50
16
0932014022
ref: 16
CUSHION
0932014022
€ 4.00
17
0932010020
ref: 17
CUSHION
0932010020
€ 4.00
18
0918006271
ref: 18
SPACER(6.5X9X18)
0918006271
€ 2.00
