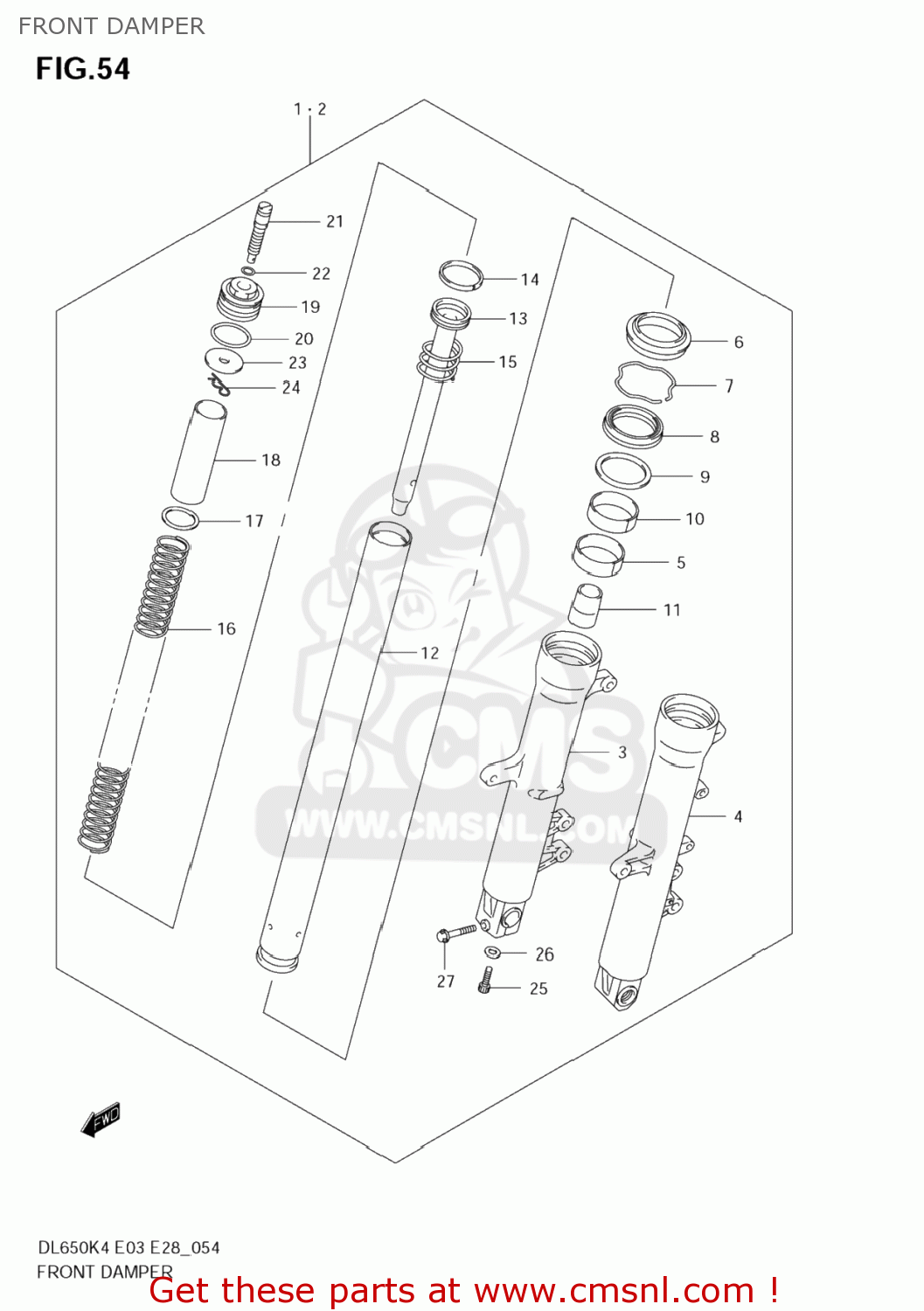

FRONT DAMPER

ref

part #

description

quantity

1

5110327G00
ref: 1

DAMPER ASSY,FR FORK,R

€ 839.00

2

5110427G00
ref: 2

DAMPER ASSY,FR FORK,L

€ 839.00

3

5113127G00
ref: 3

TUBE,OUTER,R

€ 442.50

4

5114127G00
ref: 4

TUBE,OUTER,L

€ 373.00

5

5112103F00
ref: 5

BUSH,SLIDE

€ 14.00

6

5117327G00
ref: 6

SEAL,DUST

€ 22.00

7

5155638B00
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5155327G00
ref: 8

SEAL,OIL

€ 15.00

9

5116817C00
ref: 9

SPACER,SEAL

€ 5.00

10

5115213E00
ref: 10

BUSH,GUIDE

€ 23.50

11

5119527G00
ref: 11

PIECE,OIL LOCK

€ 15.00

12

5111027G00
ref: 12

TUBE,INNER

€ 387.00

13

5114627G00
ref: 13

CYLINDER

€ 53.50

14

5119627G00
ref: 14

RING,PISTON

€ 6.00

15

5117714D00
ref: 15

SPRING,REBOUND

€ 8.00

16

5117127G00
ref: 16

SPRING,FR

€ 96.00

17

5118617C00
ref: 17

SEAT,SPRING LWR

€ 4.50

18

5117627G00
ref: 18

COLLAR,SPRING

€ 14.50

19

5118927G00
ref: 19

BOLT,FORK

€ 72.00

20

5111717C00
ref: 20

O RING

€ 3.50

21

5118527G00
ref: 21

ADJUSTER BOLT,SPRING

€ 44.50

22

5118714D00
ref: 22
09280-14011

O RING

€ 3.50

23

5118612C00
ref: 23

SEAT,SPRING

€ 3.50

24

5118832B00
ref: 24

PIN,SEAT SPRING

€ 3.50

25

5114748130
ref: 25

BOLT(8X27)

€ 3.50

26

5114836011
ref: 26

GASKET (NAS)

€ 4.00

27

5132803FK0
ref: 27

BOLT(8X40)

€ 4.50
