THROTTLE BODY FITTING
DL650 VSTROM 2006 (K6) USA (E03)

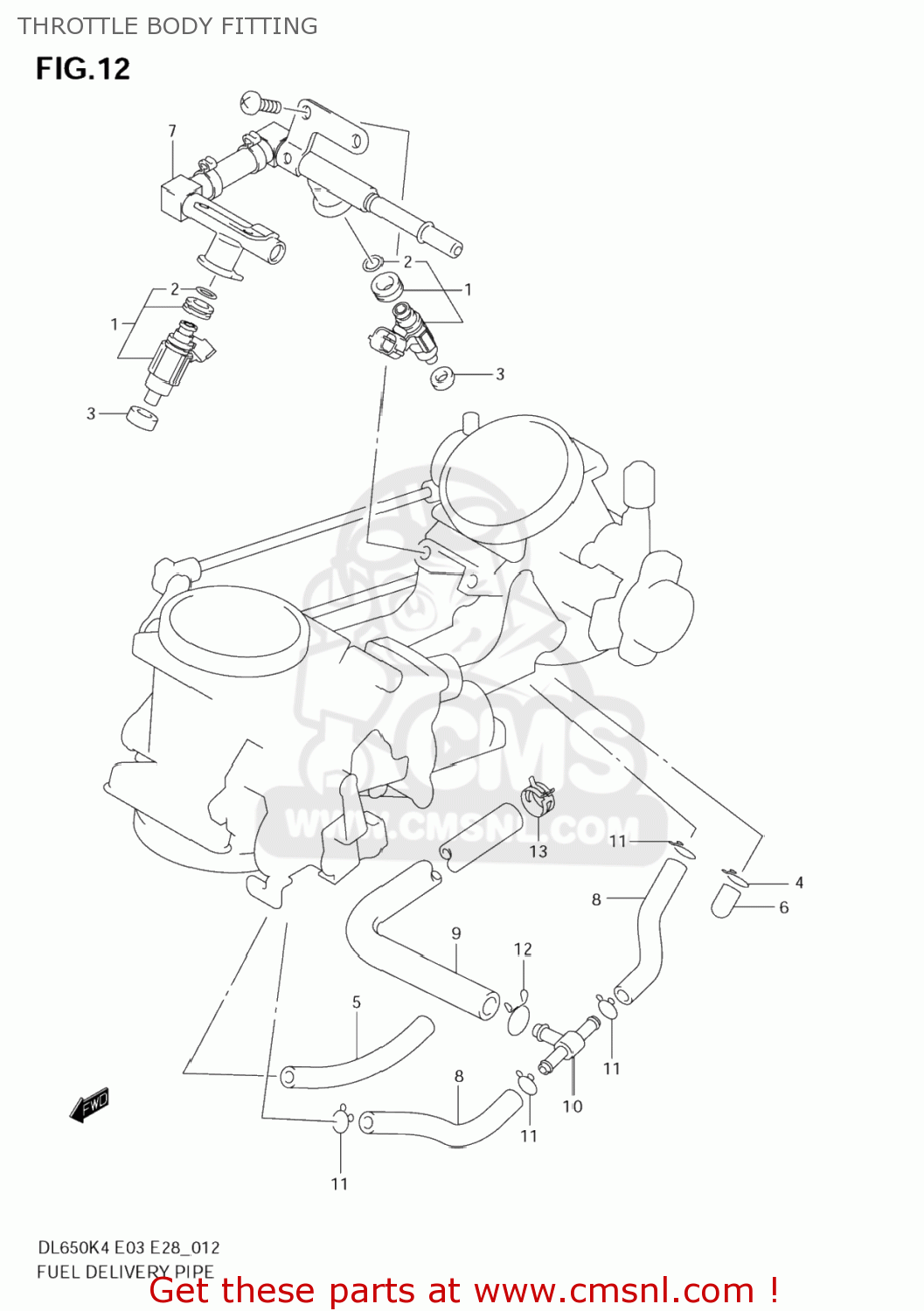

Throttle body fitting diagram DL650 VSTROM 2006 (K6) USA (E03)
THROTTLE BODY FITTING DL650 VSTROM 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1571017G00
ref: 1
INJECTOR ASSY
€ 311.00
2
1571716G00
ref: 2
O RING
€ 9.50
3
1367233E00
ref: 3
CUSHION,FUEL INJECTOR
€ 12.50
4
0940106101
ref: 4
CLIP
€ 2.50
5
1368310F60
ref: 5
HOSE(L:425)
€ 11.00
6-1
1327484000
ref: 6-1
CAP
€ 5.50
6-2
1327484000
ref: 6-2
CAP
€ 5.50
7
1573017G00
ref: 7
15730-17G01
DELIVERRY PIPE
€ 301.50
8
1368139F00225
ref: 8
HOSE(3.2X7.4X225)
€ 11.50
8
1368139F00225
ref: 8
HOSE(3.2X7.4X225)
€ 11.50
9
1368306G10
ref: 9
13683-06G11
HOSE
€ 50.00
10
1368504F10
ref: 10
NIPPLE
€ 6.50
11
0940106101
ref: 11
CLIP
€ 2.50
12
0940110410
ref: 12
09401-10401
CLIP
€ 1.50
13
0940109403
ref: 13
CLIP
€ 2.50
