SEAT

DL650 VSTROM 2006 (K6) USA (E03)

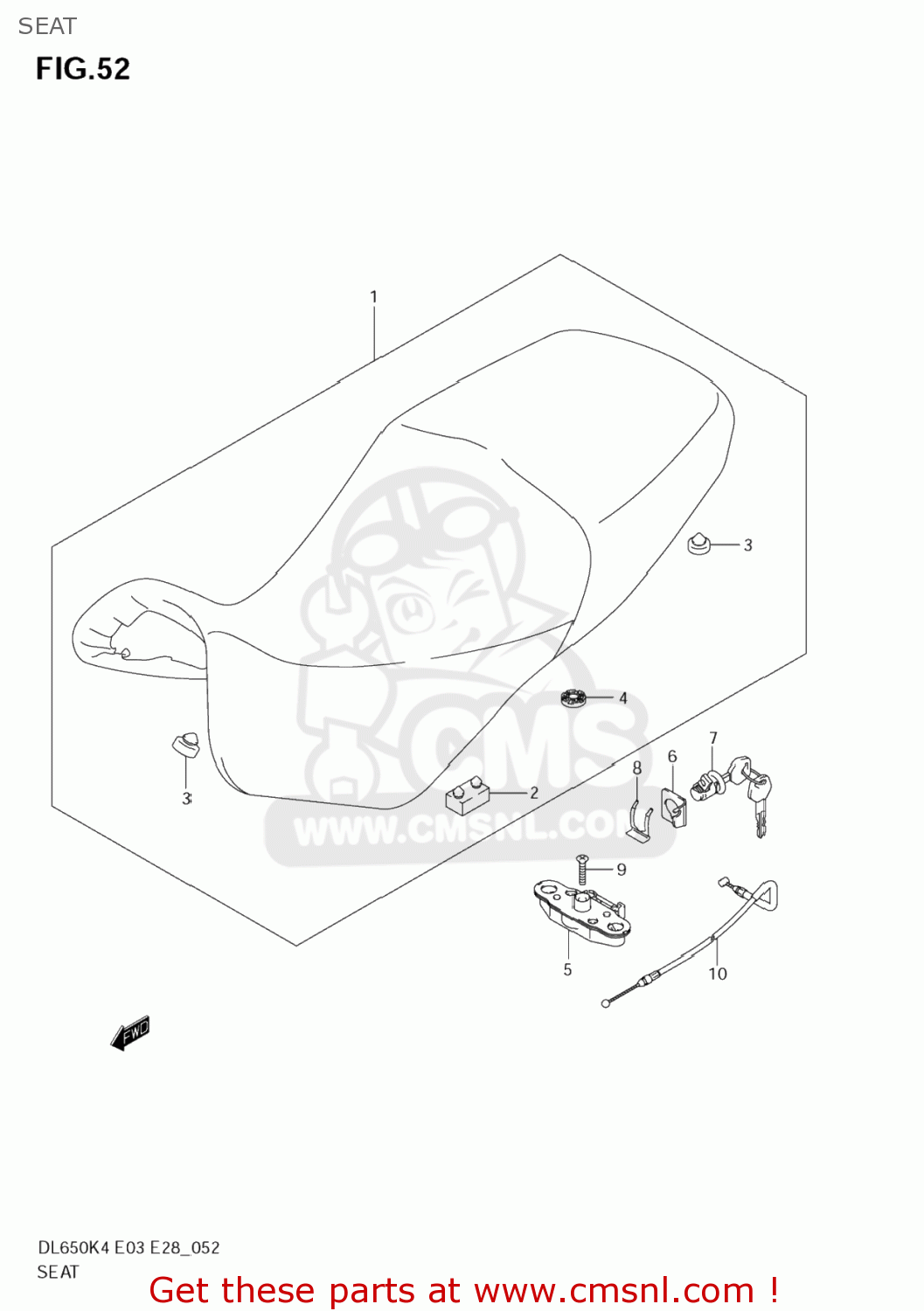

Seat diagram DL650 VSTROM 2006 (K6) USA (E03)

SEAT DL650 VSTROM 2006 (K6) USA (E03)

SEAT DL650 VSTROM 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510027G00H1N
ref: 1

SEAT ASSY

€ 401.50

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

0932110012
ref: 3

CUSHION

€ 3.00

4

4521313601
ref: 4

CUSHION,SEAT LOCK(10X22X6)

€ 1.50

5

4522020A01
ref: 5
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

6

4528814F00
ref: 6

GUIDE,SEAT LOCK CABLE

€ 3.00

7

9570014810
ref: 7

LOCK SET,SEAT

€ 75.50

8

4528911F00
ref: 8

PLATE,SEAT LOCK ASSY

€ 3.00

9

0212206303
ref: 9
02122-0630B

SCREW

€ 2.00

10

4528027G00
ref: 10

CABLE,SEAT LOCK

€ 28.00
