REAR CUSHION LEVER
DL650 VSTROM 2006 (K6) USA (E03)

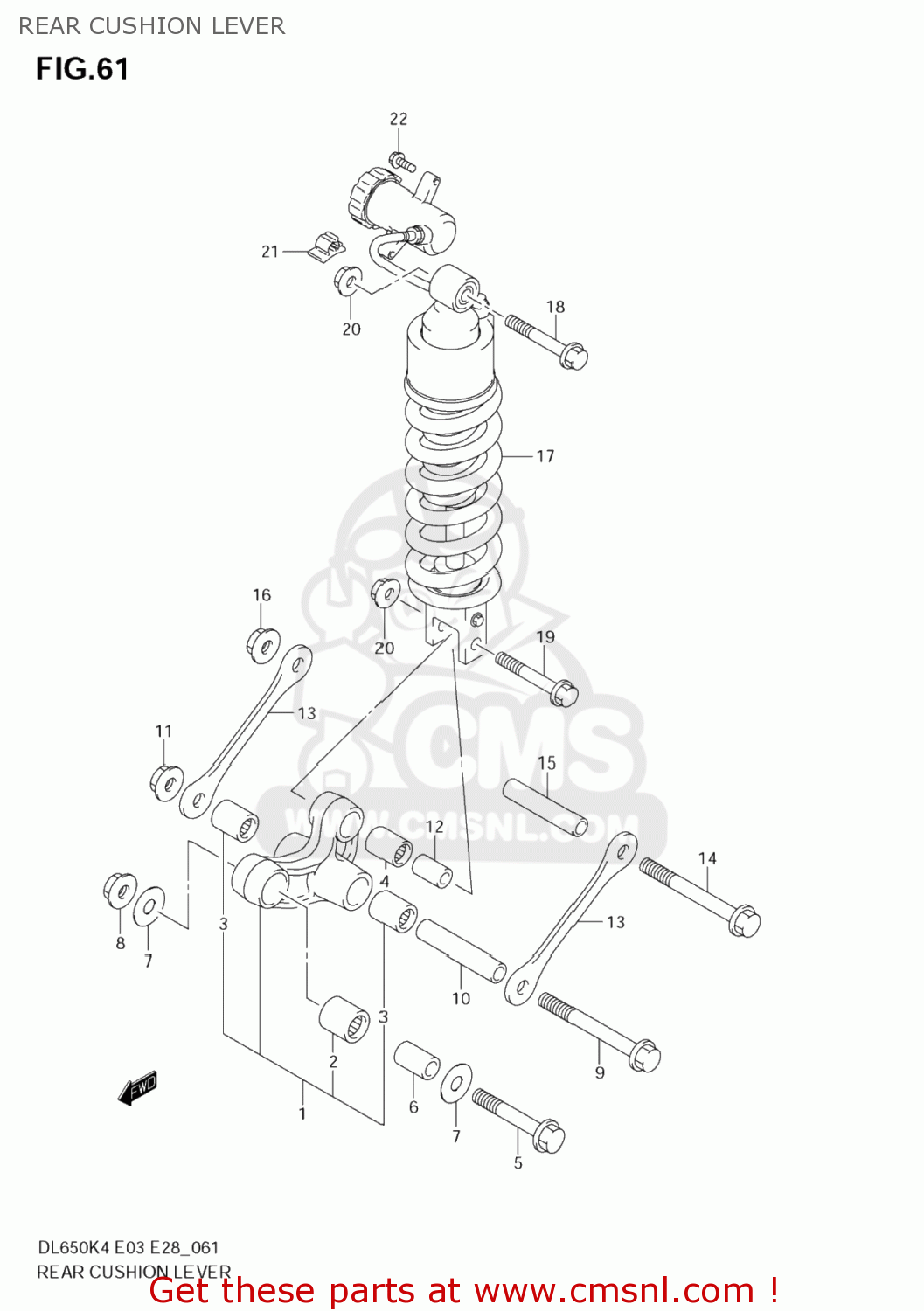

Rear cushion lever diagram DL650 VSTROM 2006 (K6) USA (E03)
REAR CUSHION LEVER DL650 VSTROM 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260006860
ref: 1
62600-06870
LEVER SET,REAR
€ 238.50
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6265819F00
ref: 5
BOLT,RR CUSHION LEVER FR
€ 8.00
6
6268412C00
ref: 6
SPACER,RR CUSHION LEVER FR
€ 12.50
7
0916012037
ref: 7
WASHER(12X34X1)
€ 4.00
8
0915912056
ref: 8
NUT
€ 7.00
9
6262119D00
ref: 9
BOLT,RR CUSHION ROD
€ 6.00
10
0918012122
ref: 10
SPACER(12X17X85)
€ 15.00
11
0915912056
ref: 11
NUT
€ 7.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
€ 11.50
13
6264106G00
ref: 13
ROD,RR CUSHION LEVER
€ 22.00
14
6262119D00
ref: 14
BOLT,RR CUSHION ROD
€ 6.00
15
0918012122
ref: 15
SPACER(12X17X85)
€ 15.00
16
0915912056
ref: 16
NUT
€ 7.00
17-1
6210006G5013L
ref: 17-1
ABSORBER ASSY,RR SHOCK
€ 0.00
17-1
6210006G5013L
ref: 17-1
ABSORBER ASSY,RR SHOCK
€ 0.00
17-2
6210006G4013L
ref: 17-2
ABSORBER ASSY,RR SHOCK
€ 0.00
17-2
6210006G4013L
ref: 17-2
ABSORBER ASSY,RR SHOCK
€ 0.00
18
0910310033
ref: 18
BOLT(10X70)
€ 5.00
19
0910310143
ref: 19
BOLT(10X55)
€ 3.50
20
0915910058
ref: 20
09159-10115
NUT
€ 4.00
21
0940310313
ref: 21
CLAMP
€ 7.50
22
0155006163
ref: 22
01550-0616A
BOLT
€ 2.50
