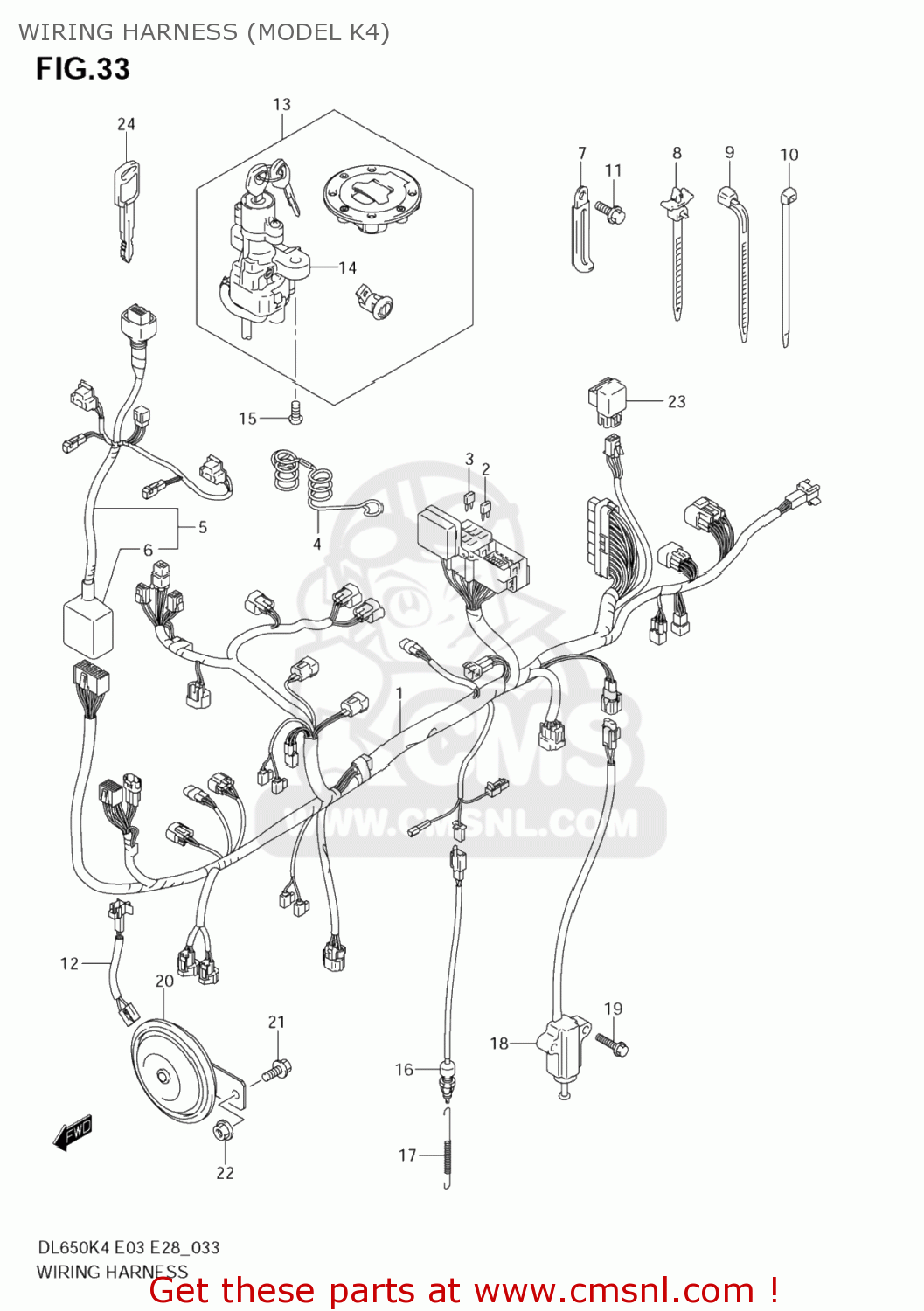

WIRING HARNESS (MODEL K4)

ref

part #

description

quantity

1

3661027G30
ref: 1

HARNESS,WIRING NO.1

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661906G01
ref: 4

GUIDE,WIRING HARNESS

€ 17.50

5

3662027G30
ref: 5

HARNESS,WIRING NO.2

€ 135.50

6

3661818G10
ref: 6

COVER,CONNECTOR

€ 8.00

7-1

0940406429
ref: 7-1

CLAMP(L:45)

€ 2.50

7-2

0940406431
ref: 7-2
09404-06432

CLAMP(L:65)

€ 2.50

8

0940711402
ref: 8

CLAMP(L:90)

€ 2.50

9

0940714403
ref: 9

CLAMP(L:125)

€ 2.50

10

0940714407
ref: 10

CLAMP(L:145)

€ 4.00

11

0154706103
ref: 11
01547-0610B

BOLT

€ 3.00

12

3685206G00
ref: 12

WIRE,HORN LEAD

€ 16.00

13-1

3700027860
ref: 13-1

LOCK SET

€ 523.00

13-2

3700027870
ref: 13-2

LOCK SET

€ 0.00

14

3710027G00
ref: 14

LOCK ASSY,STEERING

€ 211.00

15

0913908016
ref: 15

BOLT(8X20)

€ 3.50

16

3774031D00
ref: 16

SWITCH ASSY,STOP LAMP

€ 20.50

17

0944306012
ref: 17

SPRING

€ 3.00

18

3784006G00
ref: 18

SWITCH ASSY,SIDE STAND

€ 67.00

19

0155006163
ref: 19
01550-0616A

BOLT

€ 2.50

20

3850027G00
ref: 20

HORN ASSY

€ 80.00

21

0155008123
ref: 21
01550-0812A

BOLT

€ 3.50

22

0831610083
ref: 22
08316-1008B

NUT

€ 3.00

23

3874024X50
ref: 23

RELAY ASSY

€ 37.50

24

3714633E00
ref: 24

KEY,BLANK

€ 13.00
