MUFFLER
DL650 VSTROM 2006 (K6) USA (E03)

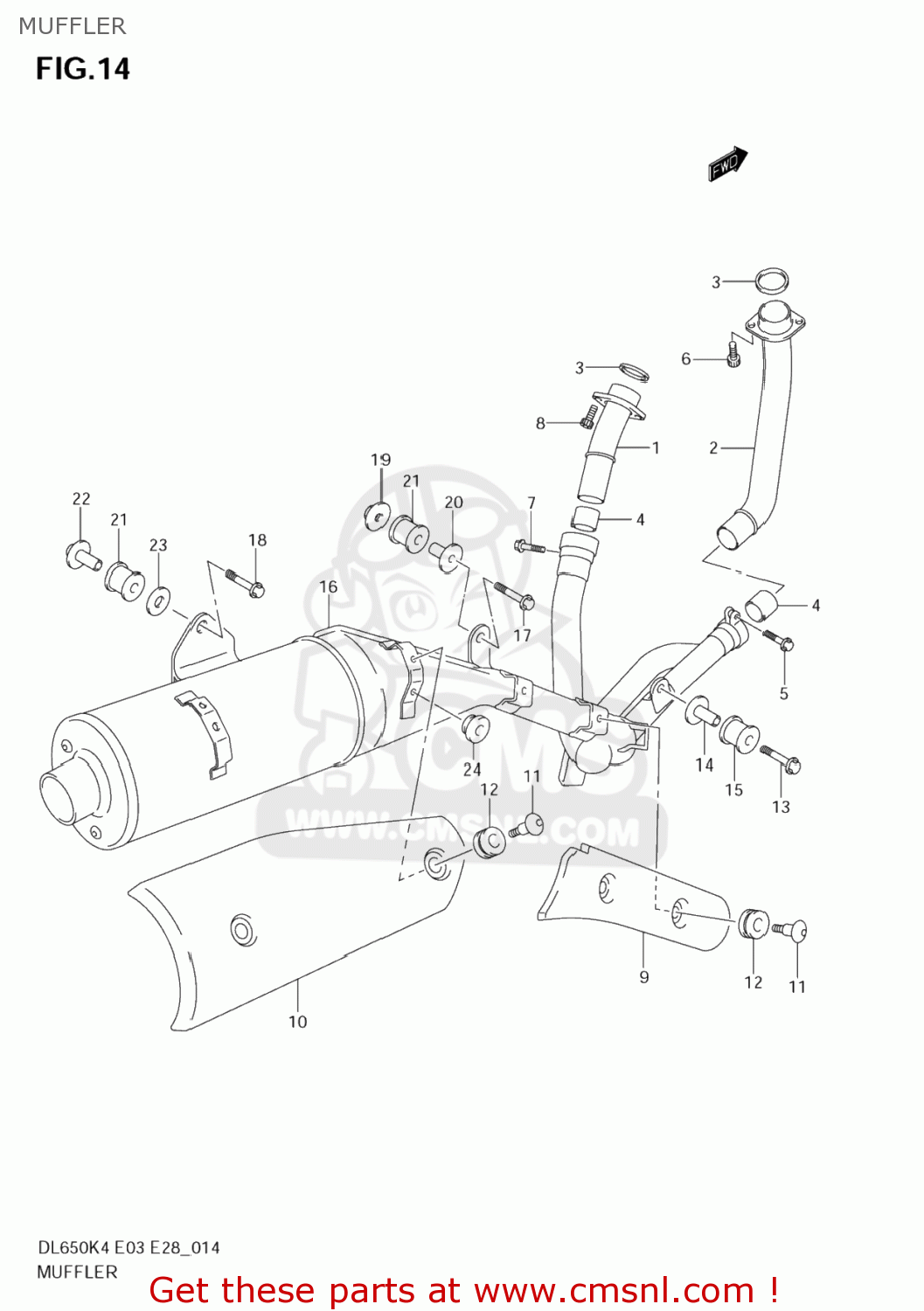

Muffler diagram DL650 VSTROM 2006 (K6) USA (E03)
MUFFLER DL650 VSTROM 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415027G00
ref: 1
PIPE,EXHAUST RR
€ 54.50
2
1416017G00
ref: 2
PIPE,EXHAUST FR
€ 140.50
3
1418122D01
ref: 3
GASKET,EXHAUST PIPE (NAS)
€ 9.00
4
1477132E00
ref: 4
CONNECTOR,MUFFLER
€ 12.50
5
0910308365
ref: 5
BOLT(8X35)
€ 3.50
6
0910608165
ref: 6
BOLT(8X25)
€ 5.00
7
0712008353
ref: 7
07120-0835B
BOLT
€ 4.00
8
0713008253
ref: 8
07130-0825B
BOLT
€ 3.50
9
1477127G00
ref: 9
COVER,MUFFLER FR
€ 18.00
10
1478127G00
ref: 10
COVER,MUF
€ 180.50
11
0913906087
ref: 11
09139-06126
SCREW(6X20)
€ 4.00
12
0932008070
ref: 12
CUSHION
€ 8.50
13
0911808152
ref: 13
09118-08152-A05
BOLT 8X45
€ 5.00
14
0918008152
ref: 14
SPACER(8.6X12X24.2)
€ 6.00
15
0932012048
ref: 15
CUSHION
€ 5.00
16-1
1430527G10H01
ref: 16-1
MUFFLER
€ 0.00
16-2
1430527G20H01
ref: 16-2
MUFFLER
€ 0.00
16-3
1430527G40H01
ref: 16-3
MUFFLER
€ 0.00
16-4
1430527G50H01
ref: 16-4
MUFFLER
€ 0.00
16-4
1430527G50H01
ref: 16-4
MUFFLER
€ 0.00
17
0155008453
ref: 17
01550-0845A
BOLT
€ 3.00
18
0910308358
ref: 18
BOLT(8X45)
€ 3.50
19
1441427G00
ref: 19
NUT,MUFFLER SUPPORT FR
€ 4.00
20
0918008156
ref: 20
SPACER(8.6X12X27.1)
€ 6.50
21
0932012049
ref: 21
CUSHION
€ 9.00
22
1441406G00
ref: 22
NUT,MUFFLER SUPPORT
€ 7.00
23
0916008146
ref: 23
WASHER(8.5X33X1.5)
€ 3.00
24
0932110018
ref: 24
CUSHION
€ 5.00
