2ND AIR

DL650 VSTROM 2009 (K9) USA (E03)

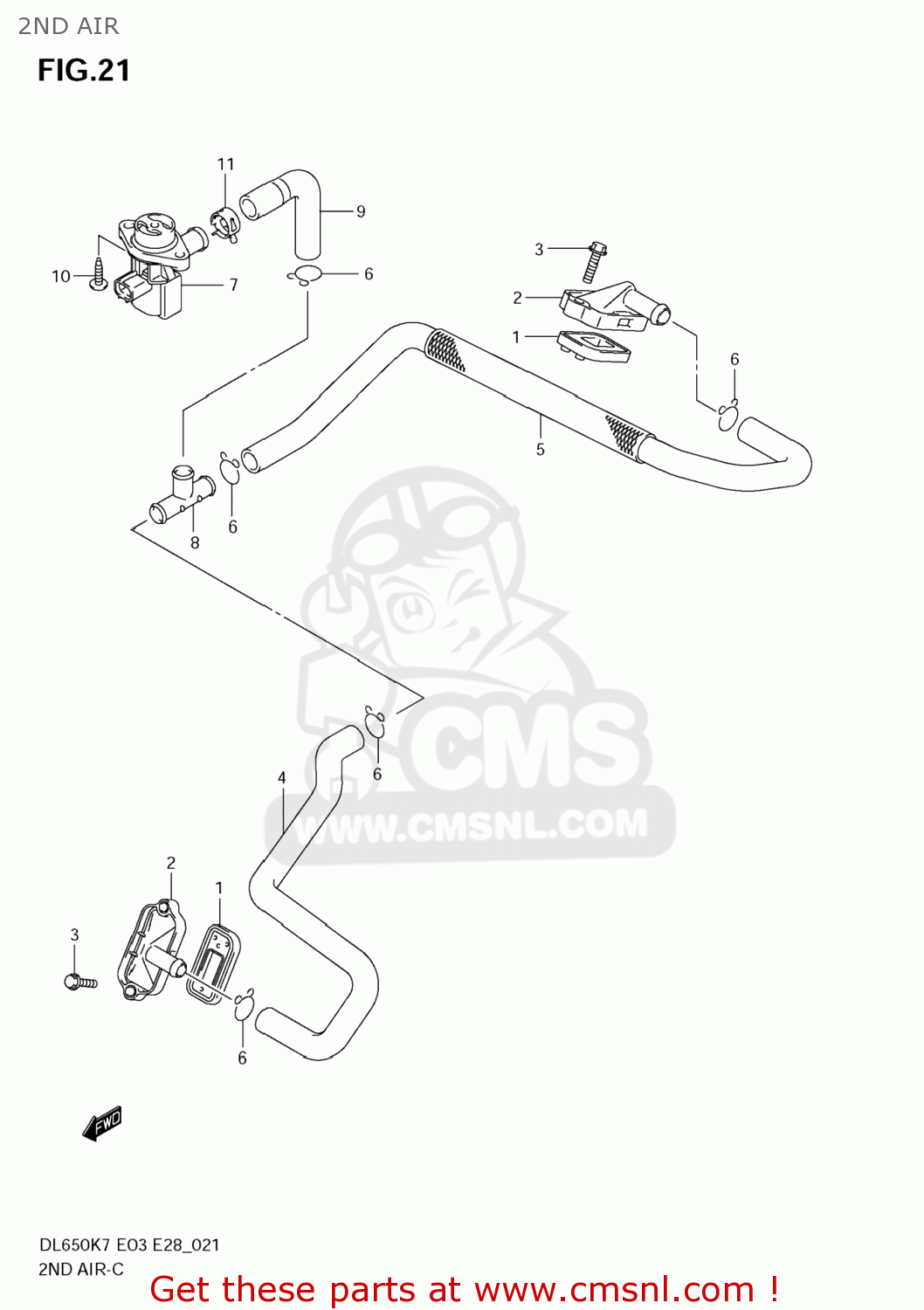

2nd air diagram DL650 VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1845006G00
ref: 1

VALVE ASSY,2ND AIR REED

€ 22.50

1853106G01
ref: 2

COVER,2ND AIR

€ 9.50

0910306201
ref: 3

BOLT(6X20)

€ 2.00

1846117G10
ref: 4

HOSE,2ND AIR VALVE FR

€ 19.00

1847117G00
ref: 5

HOSE,2ND AIR VALVE RR

€ 25.00

0940115101
ref: 6

CLIP

€ 2.00

1851027G00
ref: 7

VALVE ASSY,AIR CUT

€ 61.00

1385518A03
ref: 8

JOINT

€ 4.00

1871127G00
ref: 9

HOSE,2ND AIR VALVE

€ 10.00

035410520A
ref: 10

SCREW

€ 2.50

0940118304
ref: 11
09401-18304-A05

CLAMP

€ 2.00
