FRONT FENDER (MODEL K8)

DL650 VSTROM 2009 (K9) USA (E03)

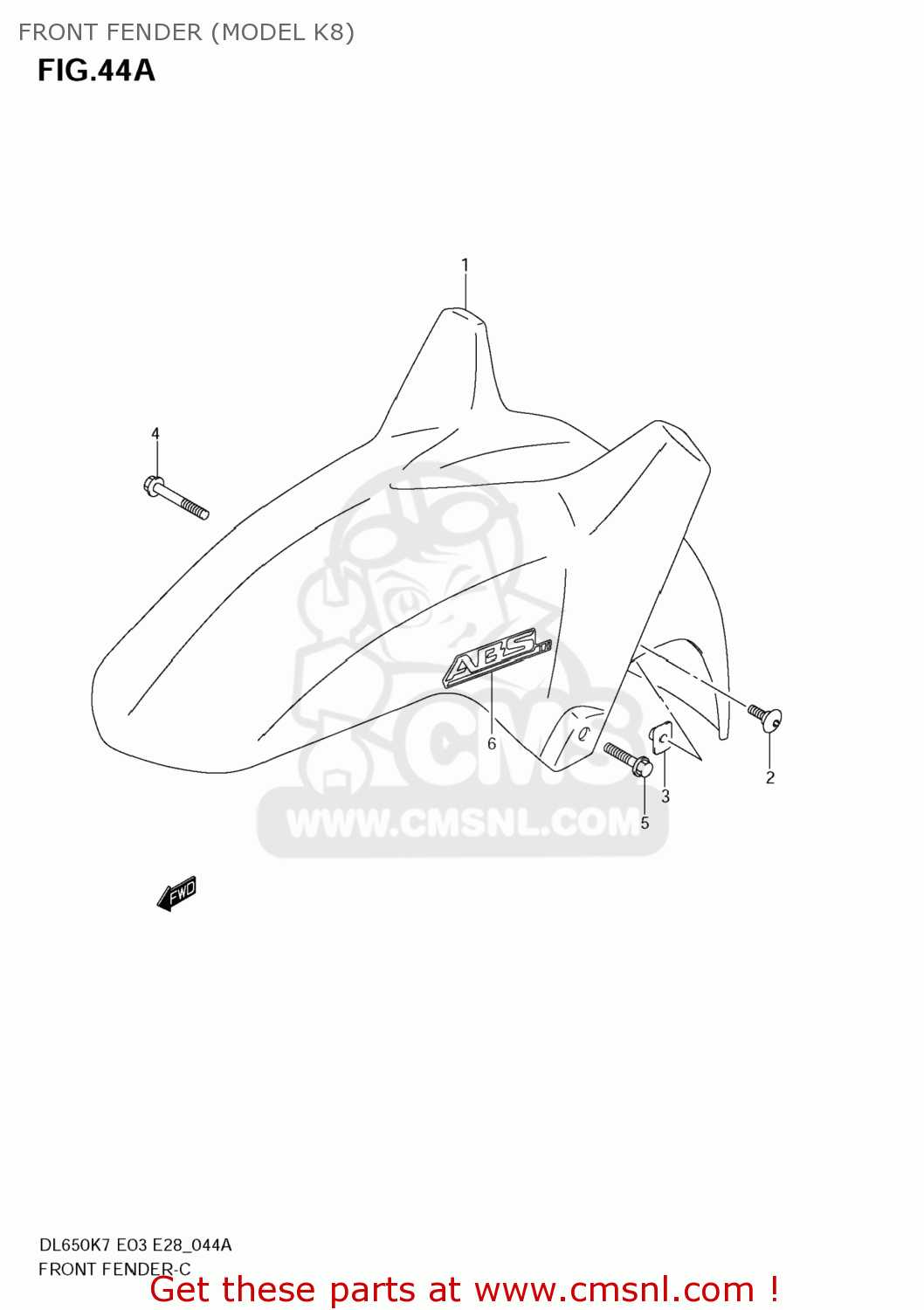

Front fender (model k8) diagram DL650 VSTROM 2009 (K9) USA (E03)

FRONT FENDER (MODEL K8) DL650 VSTROM 2009 (K9) USA (E03)

FRONT FENDER (MODEL K8) DL650 VSTROM 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311106G00YAY
ref: 1-1

FENDER,FR

€ 343.50

1-2

5311106G00YKV
ref: 1-2

FENDER,FR

€ 587.50

2

0913906121
ref: 2

SCREW(6X16)

€ 5.50

3

5312206G00
ref: 3

NUT,FR FENDER

€ 4.00

4

015470645A
ref: 4

BOLT

€ 2.50

5

015470630A
ref: 5

BOLT

€ 2.50

6-1

6815138G00Y4P
ref: 6-1

EMBLEM,ABS

€ 14.00

6-2

6815138G10DUJ
ref: 6-2

EMBLEM,ABS

€ 13.50
