Buy Suzuki DL Parts Online


FRONT DAMPER

DL650 VSTROM 2009 (K9) USA (E03)

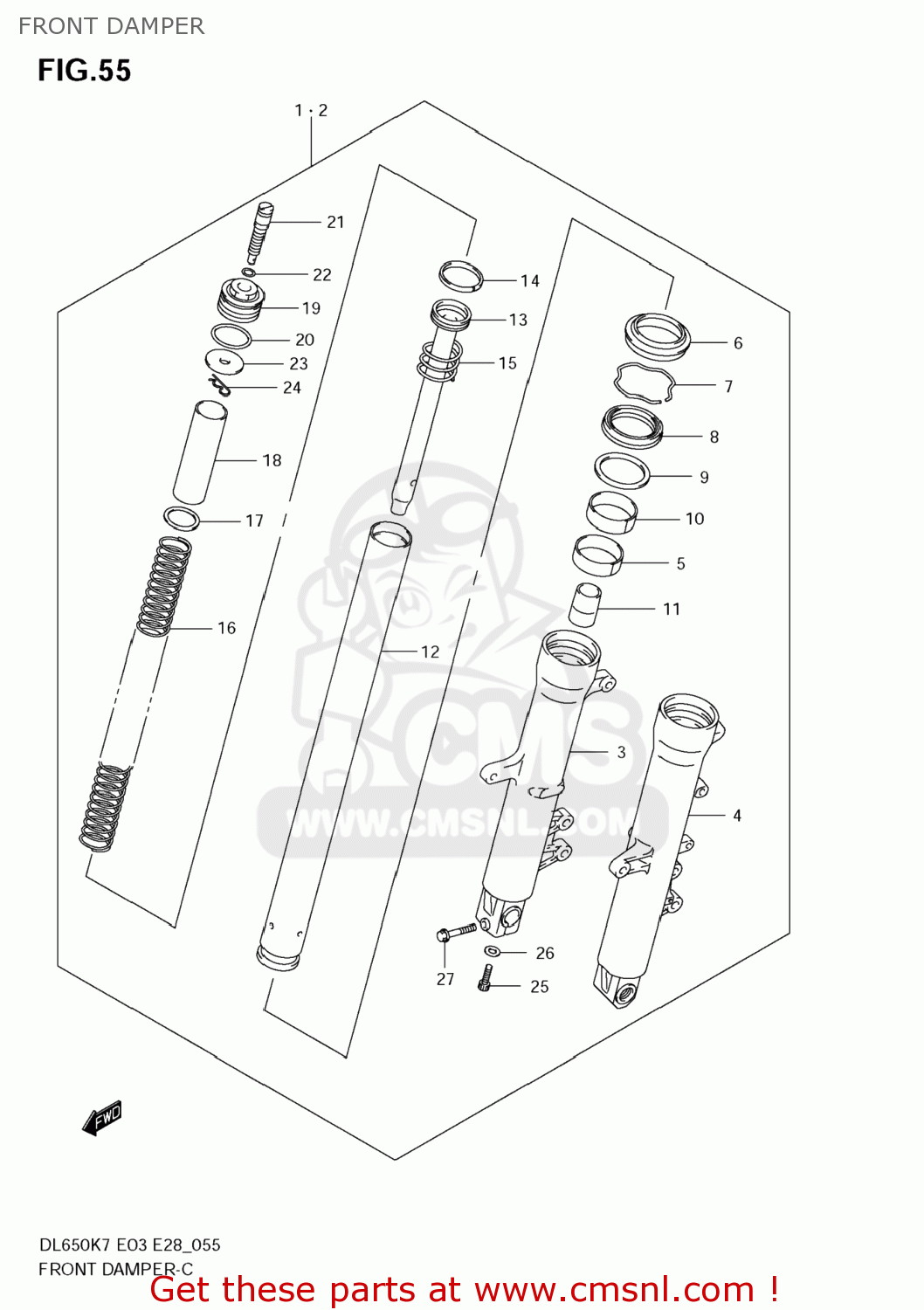

Front damper diagram DL650 VSTROM 2009 (K9) USA (E03)

FRONT DAMPER DL650 VSTROM 2009 (K9) USA (E03)
FRONT DAMPER DL650 VSTROM 2009 (K9) USA (E03)
FRONT DAMPER DL650 VSTROM 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110327G20
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,009.00
2
5110427G20
ref: 2
DAMPER ASSY,FR FORK,L
€ 1,009.00
3
5113127G20
ref: 3
TUBE,OUTER,R
€ 542.00
4
5114127G20
ref: 4
TUBE,OUTER,L
5114127G20
€ 542.00
5
5112103F00
ref: 5
BUSH,SLIDE
5112103F00
€ 14.00
6
5117327G00
ref: 6
SEAL,DUST
5117327G00
€ 22.00
7
5155638B00
ref: 7
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
8
5155327G00
ref: 8
SEAL,OIL
5155327G00
€ 15.00
9
5116817C00
ref: 9
SPACER,SEAL
5116817C00
€ 5.00
10
5115213E00
ref: 10
BUSH,GUIDE
5115213E00
€ 23.50
11
5119527G00
ref: 11
PIECE,OIL LOCK
5119527G00
€ 15.00
12
5111027G00
ref: 12
TUBE,INNER
5111027G00
€ 387.00
13
5114627G00
ref: 13
CYLINDER
5114627G00
€ 53.50
14
5119627G00
ref: 14
RING,PISTON
5119627G00
€ 6.00
15
5117714D00
ref: 15
SPRING,REBOUND
5117714D00
€ 8.00
16
5117127G00
ref: 16
SPRING,FR
€ 96.00
17
5118617C00
ref: 17
SEAT,SPRING LWR
5118617C00
€ 4.50
18
5117627G00
ref: 18
COLLAR,SPRING
€ 14.50
19
5118927G00
ref: 19
BOLT,FORK
€ 72.00
20
5111717C00
ref: 20
O RING
5111717C00
€ 3.50
21
5118527G00
ref: 21
ADJUSTER BOLT,SPRING
€ 44.50
22
5118714D00
ref: 22
09280-14011
O RING
5118714D00
€ 3.50
23
5118612C00
ref: 23
SEAT,SPRING
5118612C00
€ 3.50
24
5118832B00
ref: 24
PIN,SEAT SPRING
5118832B00
€ 3.50
25
5114748130
ref: 25
BOLT(8X27)
5114748130
€ 3.50
26
5114836011
ref: 26
GASKET (NAS)
5114836011
€ 4.00
27
5132803FK0
ref: 27
BOLT(8X40)
5132803FK0
€ 4.50
