CRANKCASE COVER
DL650 VSTROM 2009 (K9) USA (E03)

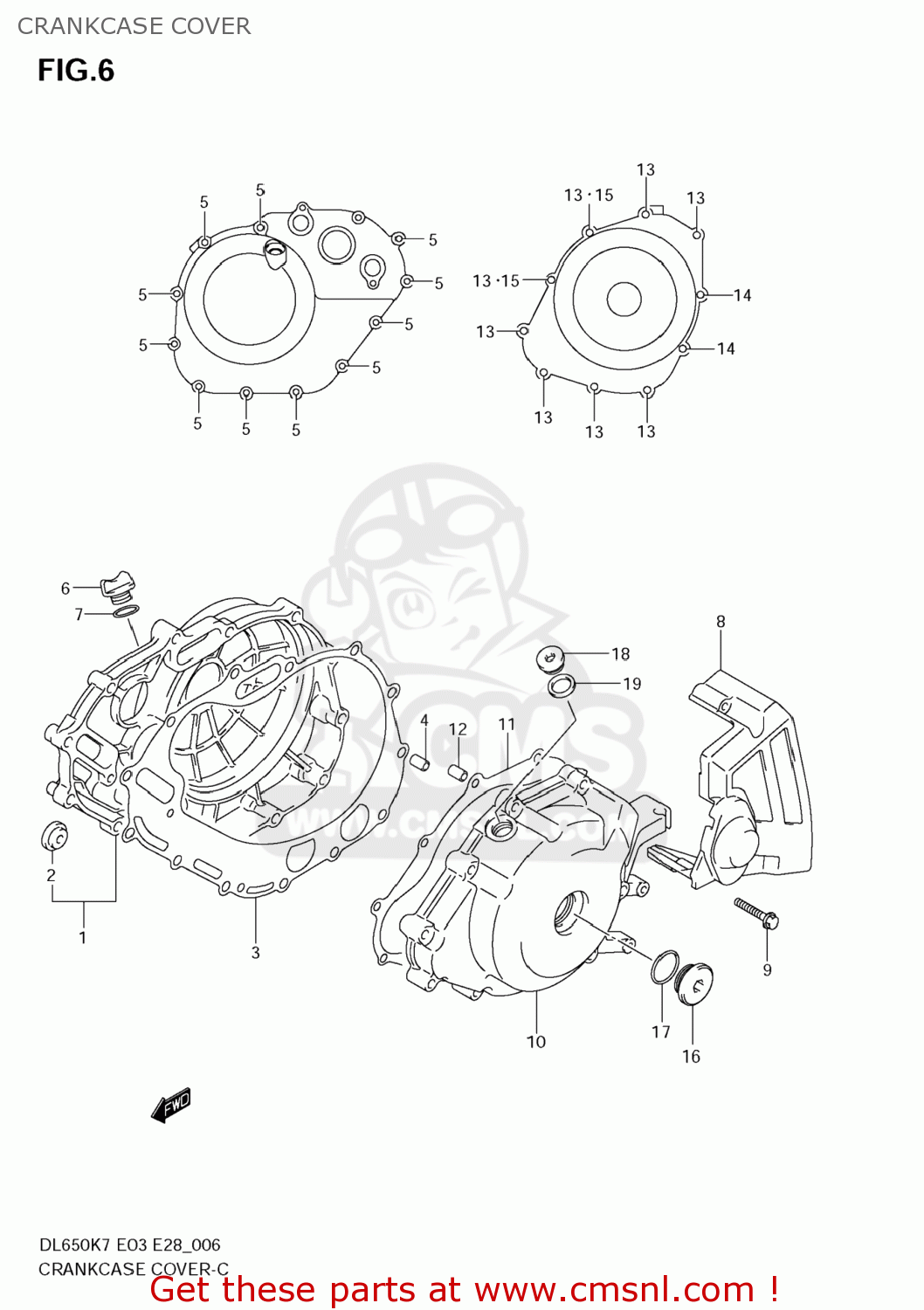

Crankcase cover diagram DL650 VSTROM 2009 (K9) USA (E03)
CRANKCASE COVER DL650 VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134017G00
ref: 1
COVER,CLUTCH
€ 279.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148217G00
ref: 3
11482-44H00
GASKET,CLUTCH (NAS)
€ 17.00
4
0421109149
ref: 4
PIN
€ 2.00
5
0910306214
ref: 5
BOLT(6X35)
€ 2.50
6
1197125D00
ref: 6
PLUG,ENGINE OIL FILLER
€ 5.50
7
0928017003
ref: 7
O RING(D:3.1,ID:16.8)
€ 2.00
8
1136127G00
ref: 8
COVER,ENGINE SPROCKET
€ 65.00
9
0910306224
ref: 9
BOLT(6X45)
€ 3.00
10
1135119F50
ref: 10
COVER,MAGNETO
€ 252.50
11
1148319F00
ref: 11
GASKET,MAGNETO COVER (NAS)
€ 11.50
12
0421109149
ref: 12
PIN
€ 2.00
13
0910306214
ref: 13
BOLT(6X35)
€ 2.50
14
0910306239
ref: 14
BOLT(6X65)
€ 3.50
15
0916806023
ref: 15
GASKET(5.8X13X1.2) (NAS)
€ 2.00
16
0925926011
ref: 16
PLUG(26X9)
€ 8.50
17
0928022008
ref: 17
O RING(D:3.1,ID:22.7)
€ 2.50
18
0924816012
ref: 18
PLUG,16X8
€ 4.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
€ 2.00
