FUEL PUMP
DL650 VSTROM 2009 (K9) USA (E03)

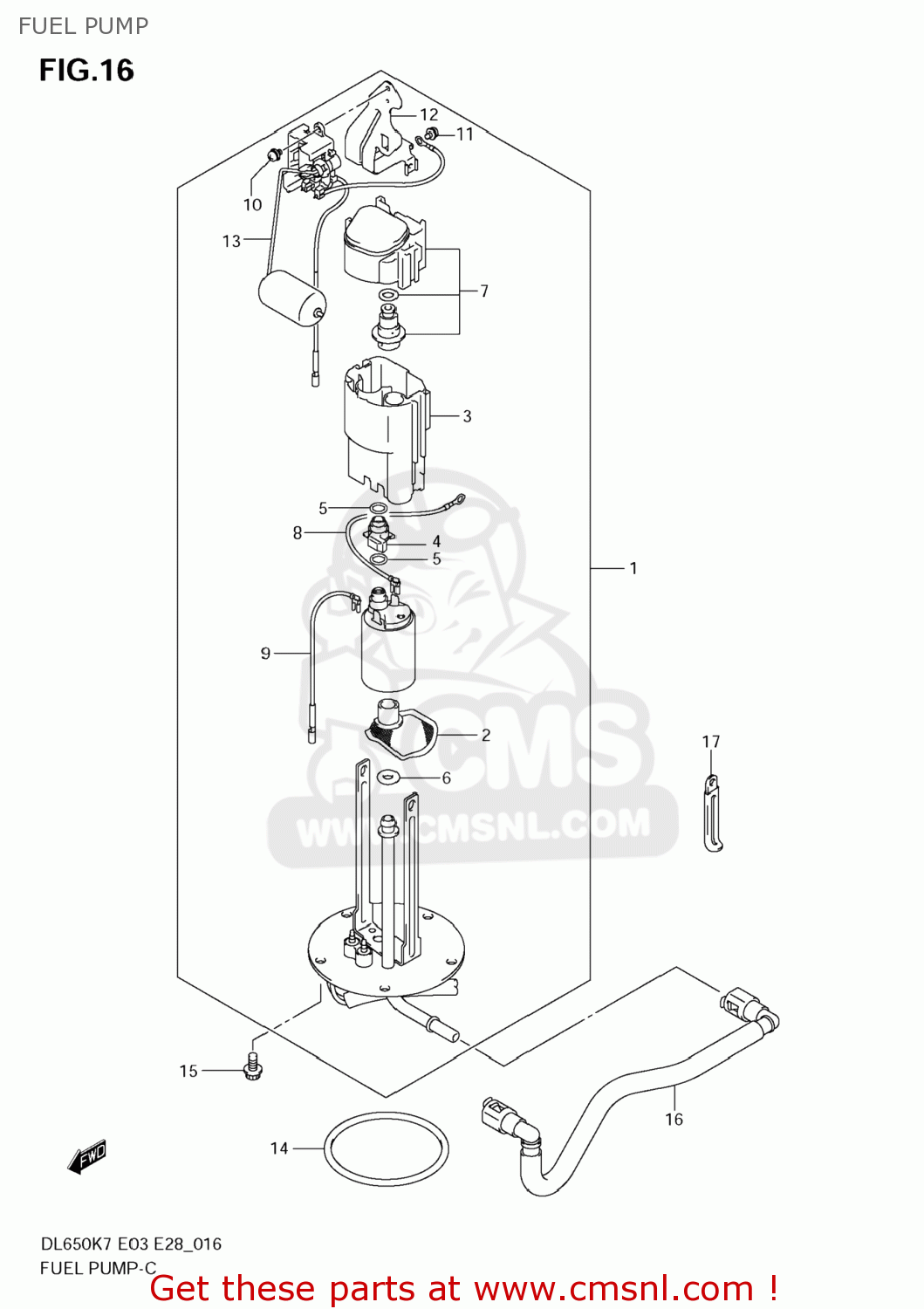

Fuel pump diagram DL650 VSTROM 2009 (K9) USA (E03)
FUEL PUMP DL650 VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510027G00
ref: 1
PUMP ASSY,FUEL
€ 857.00
2
1542005H00
ref: 2
STRAINER
€ 20.50
3
1511127G00
ref: 3
CUP
€ 25.00
4
1511205H00
ref: 4
JOINT
€ 17.00
5
1511305H00
ref: 5
O RING
€ 17.00
6
1511335F00
ref: 6
O RING
€ 7.50
7
1561027G00
ref: 7
REGULATOR
€ 165.50
8
1511427G00
ref: 8
WIRE,EARTH
€ 21.00
9
1511527G00
ref: 9
WIRE,LEAD
€ 23.00
10
1511606G10
ref: 10
SCREW
€ 6.50
11
1511610F00
ref: 11
SCREW
€ 3.50
12
1518127G00
ref: 12
BRACKET,GAUGE
€ 17.00
13
3481027G00
ref: 13
GAUGE ASSY,FUEL LEVEL SENDER
€ 205.00
14
1520135F00
ref: 14
O RING,FUEL PUMP
€ 26.00
15
071200612A
ref: 15
BOLT
€ 3.50
16
1581027G00
ref: 16
15810-27G01
HOSE COMP,FUEL
€ 75.50
17
0940406429
ref: 17
CLAMP(L:45)
€ 2.50
