REAR SWINGING ARM
DL650 VSTROM 2009 (K9) USA (E03)

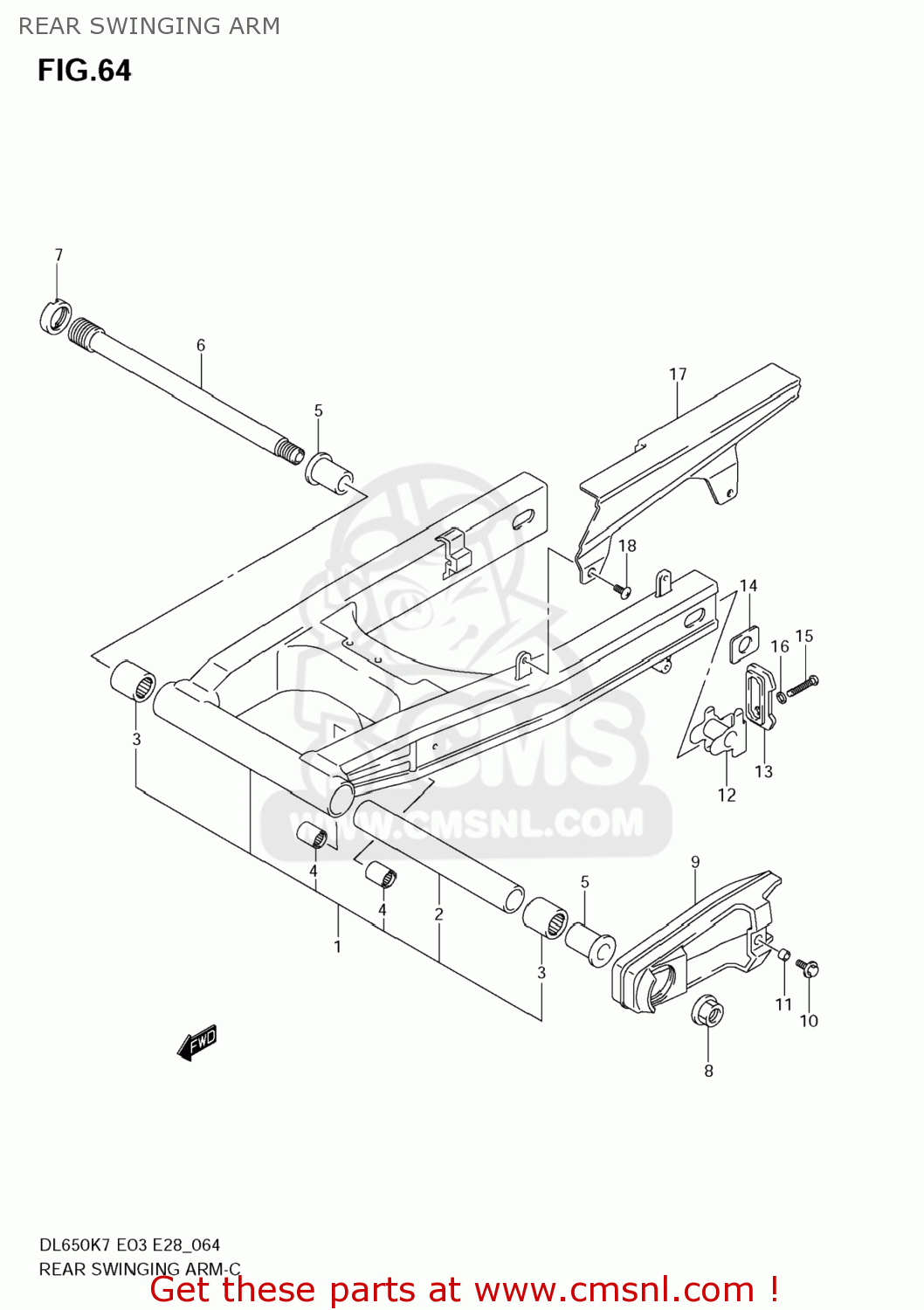

Rear swinging arm diagram DL650 VSTROM 2009 (K9) USA (E03)
REAR SWINGING ARM DL650 VSTROM 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100027G20
ref: 1
SWINGINGARM AS
€ 910.00
2
0918020118
ref: 2
SPACER(20.8X27.2X196.7)
€ 13.50
3
0926325059
ref: 3
BEARING(25X33X35)
€ 35.00
4
0926317037
ref: 4
BEARING(17X24X25)
€ 19.00
5
6125131E00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
€ 16.00
6
6121106G00
ref: 6
SHAFT,RR SWINGINGARM PIVOT
€ 62.50
7
6121419F00
ref: 7
61214-19F10
NUT,REAR SWING ARM PIVOT BOLT
€ 8.50
8
083193118A
ref: 8
NUT
€ 17.50
9
6127327G00
ref: 9
BUFFER,CHAIN TOUCH DEFENSE
€ 22.00
10
0911606152
ref: 10
BOLT(6X20)
€ 2.00
11
0918006283
ref: 11
SPACER(6.5X10X7)
€ 2.00
12
6141003F00
ref: 12
ADJUSTER,CHAIN
€ 12.50
13-1
6142133D01
ref: 13-1
PLATE,CHAIN ADJUSTER GUIDE,R
€ 17.00
13-2
6142233D01
ref: 13-2
PLATE,CHAIN ADJUSTER GUIDE,L
€ 17.00
14-1
6471203F00
ref: 14-1
WASHER,CHAIN ADJUSTER
€ 5.00
14-2
6471303F00
ref: 14-2
WASHER,CHAIN ADJUSTER
€ 4.00
15
0910608119
ref: 15
BOLT(8X50)
€ 4.50
16
0916408015
ref: 16
WASHER
€ 3.00
17
6131016G00
ref: 17
CASE,CHAIN
€ 44.00
18
0913906083
ref: 18
SCREW(6X16)
€ 2.50
