AIR CLEANER
DR100 1989 (K) USA (E03)

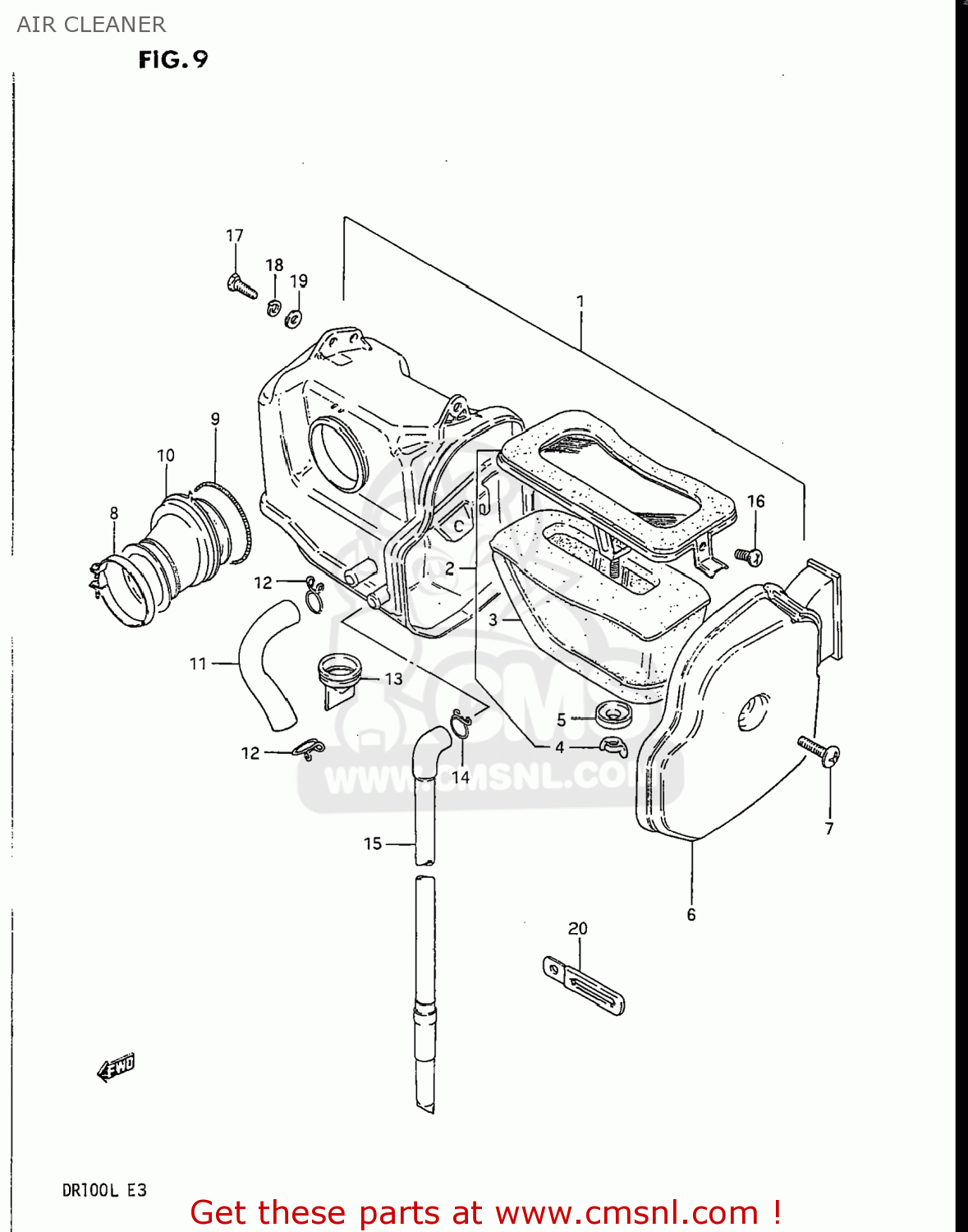

Air cleaner diagram DR100 1989 (K) USA (E03)
AIR CLEANER DR100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370005231
ref: 1
CLEANER ASSEMBLY,AIR
€ 114.00
2
1378038200
ref: 2
FILTER ASSY
€ 44.00
3
1378138200
ref: 3
13780-38200
ELEMENT,AIR CLEANER
€ 44.00
4
0831711056
ref: 4
08317-1205A
NUT
€ 2.00
5
1379620400
ref: 5
WASHER
€ 4.00
6
1374005230
ref: 6
CAP,AIR CLEANER
€ 18.50
7
0912506055
ref: 7
SCREW(6X25)
€ 3.00
8
0940246208
ref: 8
CLAMP
€ 4.50
9
1393102100
ref: 9
CLAMP,CLEANER SIDE
€ 4.00
10
1388105200
ref: 10
TUBE,OUTLET
€ 13.50
11
1385305200
ref: 11
TUBE,AIR CLEANER BREATER
€ 7.50
12
0940100020
ref: 12
CLAMP
€ 0.00
13
1387320400
ref: 13
HOSE,AIR CLEANER DRAIN
€ 13.50
14
1382400A00
ref: 14
09401-13409
CLIP
€ 2.50
15
1387021441
ref: 15
13870-21628
DRAIN TUBE
€ 23.50
16
0912505042
ref: 16
SCREW(5X10)
€ 2.50
17
0110706167
ref: 17
01500-06167
BOLT
€ 3.00
18
0832121067
ref: 18
08321-01067
WASHER,LOCK
€ 2.50
19
0916006007
ref: 19
09160-06084
WASHER
€ 2.00
20
0940406402
ref: 20
09404-06432
CLAMP
€ 2.50
