GEAR SHIFTING
DR100 1989 (K) USA (E03)

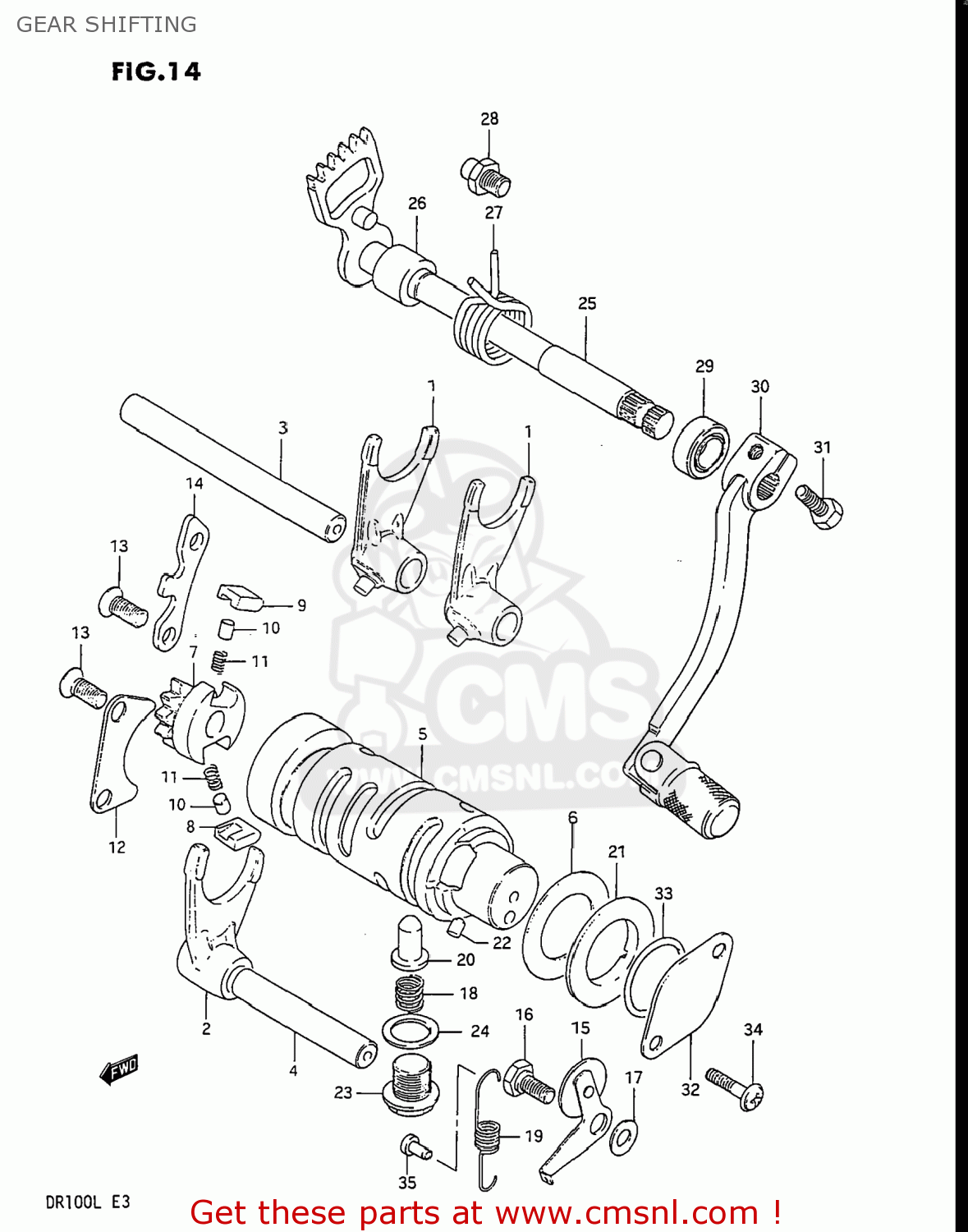

Gear shifting diagram DR100 1989 (K) USA (E03)
GEAR SHIFTING DR100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3
2541116701
ref: 3
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
4
2542135401
ref: 4
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531005200
ref: 5
CAM,GEAR SHIFT
€ 51.50
6
0821125401
ref: 6
09181-25251
WASHER,THRUST
€ 2.50
7
2532231301
ref: 7
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15-1
2535005200
ref: 15-1
STOPPER,GEAR SHIFTING
€ 8.00
15-2
2535044A00
ref: 15-2
STOPPER,GEAR SHIFT CAM
€ 8.00
16
0911106019
ref: 16
09111-06054
BOLT
€ 1.50
17
0821106141
ref: 17
WASHER
€ 2.50
18
0944011016
ref: 18
SPRING
€ 7.50
19-1
0944308012
ref: 19-1
SPRING
€ 3.00
19-2
0944308044
ref: 19-2
SPRING
€ 1.50
20
2535130010
ref: 20
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0621104063
ref: 22
04221-04069
PIN 4X6
€ 2.00
23
0924714012
ref: 23
09247-14026
PLUG (14X12)
€ 3.50
24
0916814004
ref: 24
GASKET(14X19.2X2) (NAS)
€ 2.50
25
2551005201
ref: 25
SHAFT,GEAR SHIFT
€ 42.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
0944426013
ref: 27
SPRING
€ 3.50
28
2567101000
ref: 28
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30
2560005221
ref: 30
LEVER ASSY,GEAR SHIFT
€ 143.50
31
0910006100
ref: 31
01500-0620A
BOLT
€ 2.00
32
1145146000
ref: 32
CAP,GEAR SHIFT CAM PIVOT
€ 2.50
33
0928026003
ref: 33
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
34
0211205087
ref: 34
SCREW
€ 2.00
35
0922304001
ref: 35
RIVET
€ 1.50
