FRAME COVER (MODEL F/G)

DR100 1989 (K) USA (E03)

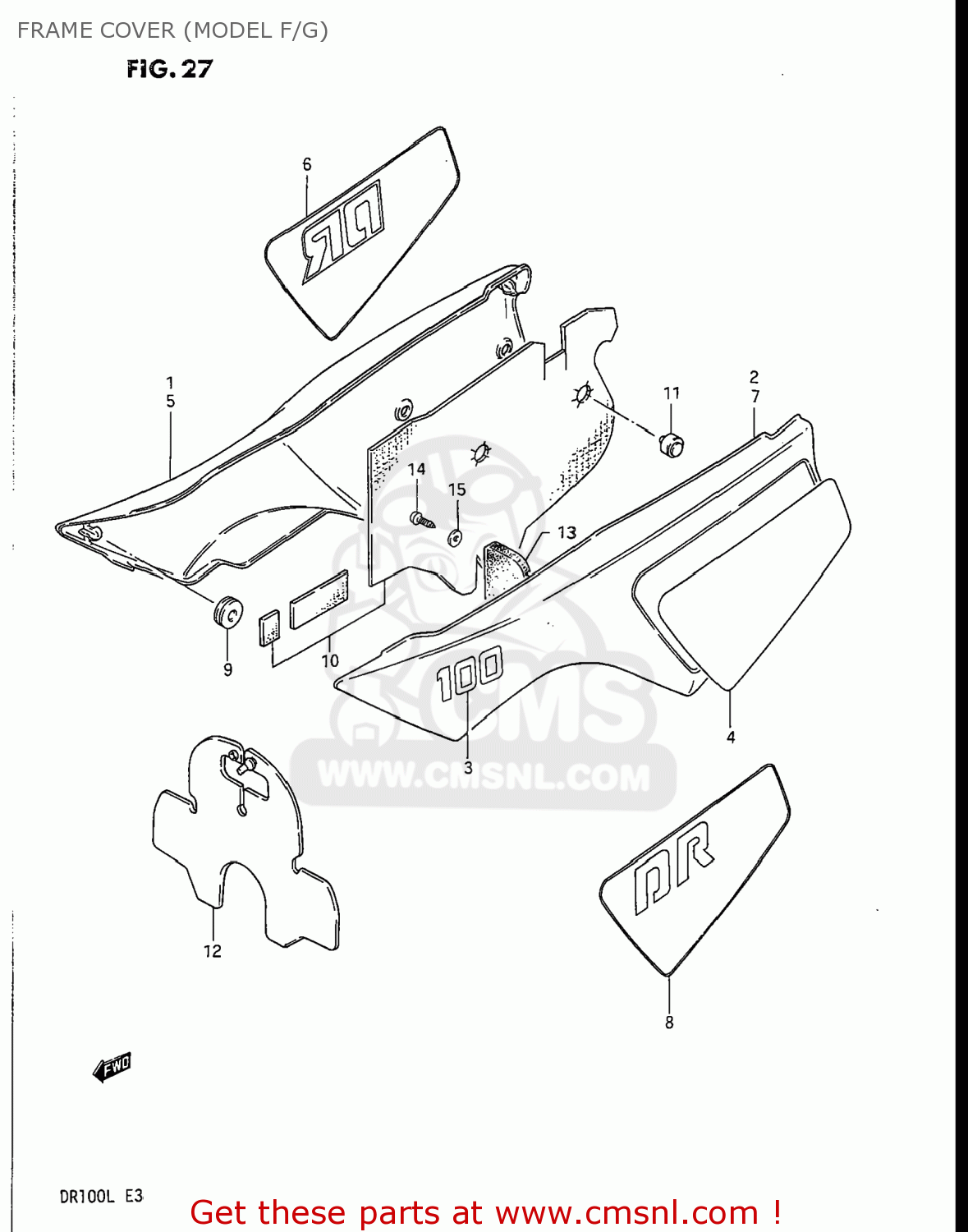

Frame cover (model f/g) diagram DR100 1989 (K) USA (E03)

FRAME COVER (MODEL F/G) DR100 1989 (K) USA (E03)
FRAME COVER (MODEL F/G) DR100 1989 (K) USA (E03)
FRAME COVER (MODEL F/G) DR100 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
471110525081W
ref: 1
47111-05250-13L
COVER,FRAME,RIGHT
€ 49.50
2
4721105251163
ref: 2
47211-05251-13L
COVER,FRAME,LEFT
€ 31.00
3
6823605200019
ref: 3
EMBLEM,FRAME COVER
€ 5.50
4
6814205250291
ref: 4
EMBLEM,FRAME COVER,LEFT
€ 3.50
5
4711105250163
ref: 5
47111-05250-13L
COVER,FRAME,RIGHT
€ 49.50
6
681300528073K
ref: 6
TAPE SET,FRAME COVER
€ 10.00
7
4721105251163
ref: 7
47211-05251-13L
COVER,FRAME,LEFT
€ 31.00
8
681400528073K
ref: 8
TAPE SET,FRAME COVER
€ 7.00
9
0932008018
ref: 9
CUSHION
0932008018
€ 4.00
10
4710005850
ref: 10
47100-05851
SHIELD SET,FRAME COVER H
€ 27.00
11
0932110007
ref: 11
CUSHION
0932110007
€ 4.50
12
4715705250
ref: 12
MUD FLAP,FRONT
€ 9.50
13
4721905260
ref: 13
MUD GUARD,AIR CLEANER
€ 0.00
14
0351104086
ref: 14
03511-04083
SCREW
€ 2.00
15
0832221047
ref: 15
08322-01047
WASHER 4MM
0832221047
€ 2.00
15
0832221047
ref: 15
08322-01047
WASHER 4MM
0832221047
€ 2.00
15
0832221047
ref: 15
08322-01047
WASHER 4MM
0832221047
€ 2.00
