FRAME COVER (MODEL H/J/K)
DR100 1989 (K) USA (E03)

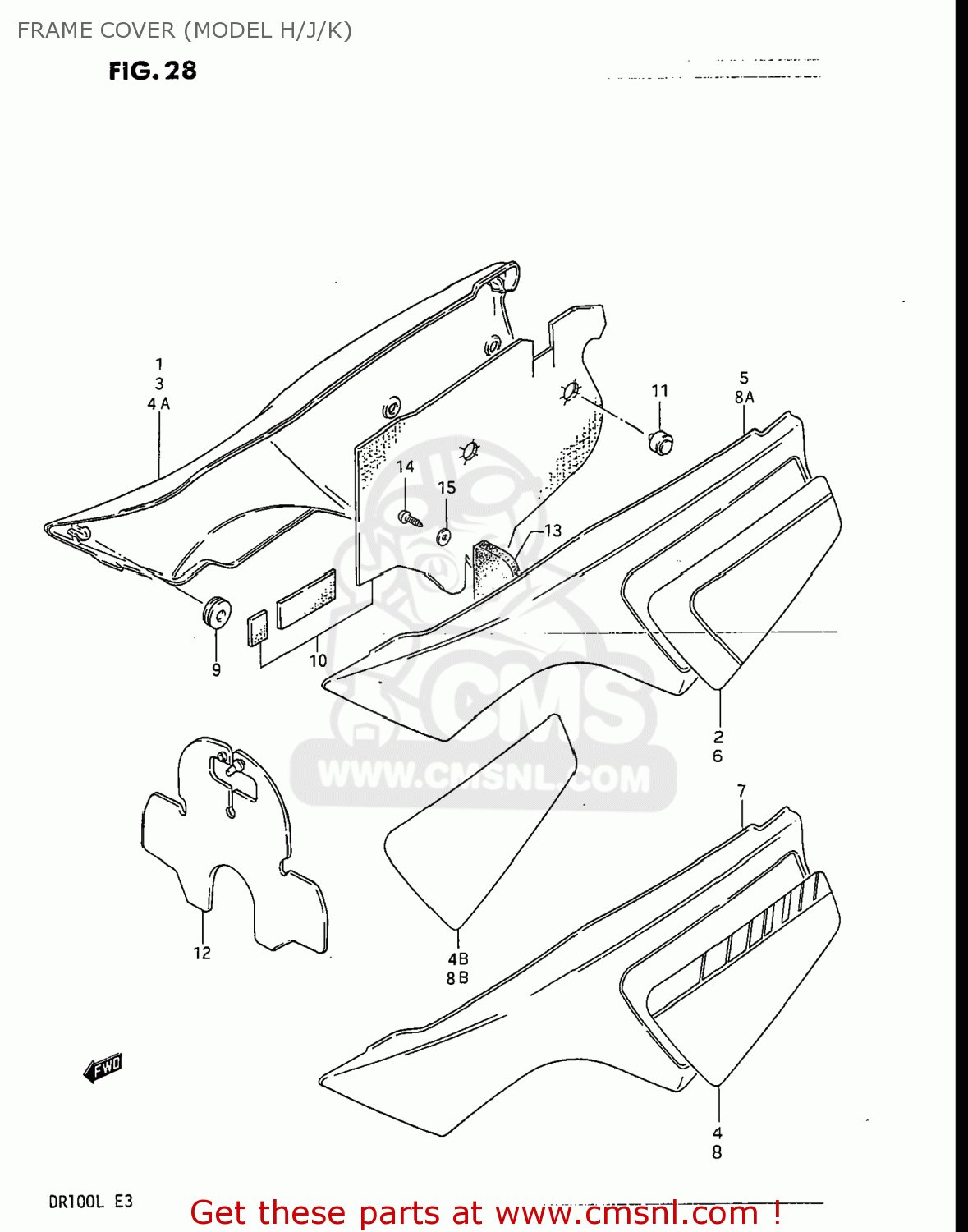

Frame cover (model h/j/k) diagram DR100 1989 (K) USA (E03)
FRAME COVER (MODEL H/J/K) DR100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
471100525025Y
ref: 1
47111-05250-13L
COVER,FRAME,RIGHT
€ 49.50
2
68130052909BZ
ref: 2
TAPE SET,FRAME COVER,RIGHT
€ 0.00
3
471100526025Y
ref: 3
47111-05250-13L
COVER,FRAME,RIGHT
€ 49.50
4
68135052009UP
ref: 4
TAPE,FRAME COVER,RIGHT
€ 11.50
4A
471100527030H
ref: 4A
47111-05250-13L
COVER,FRAME,RIGHT
€ 49.50
4B
681350521008K
ref: 4B
TAPE,FRAME COVER,RIGHT (BLUE)
€ 13.50
5
472100525025Y
ref: 5
47211-05251-13L
COVER,FRAME,LEFT
€ 31.00
6
68140052909BZ
ref: 6
TAPE SET,FRAME COVER,LEFT
€ 14.00
7
472100526025Y
ref: 7
47211-05251-13L
COVER,FRAME,LEFT
€ 31.00
8
68145052009UP
ref: 8
TAPE,FRAME COVER,LEFT
€ 0.00
8A
472100527030H
ref: 8A
47211-05251-13L
COVER,FRAME,LEFT
€ 31.00
8B
681450521008K
ref: 8B
TAPE,FRAME COVER,LEFT (BLUE)
€ 14.00
9
0932008018
ref: 9
CUSHION
€ 4.00
10
4710005851
ref: 10
HEAT SHIELD SET,FRAME
€ 27.00
11
0932110007
ref: 11
CUSHION
€ 4.50
12
4715705250
ref: 12
MUD FLAP,FRONT
€ 9.50
13
4721905260
ref: 13
MUD GUARD,AIR CLEANER
€ 0.00
14
0351104086
ref: 14
03511-04083
SCREW
€ 2.00
15
0832221047
ref: 15
08322-01047
WASHER 4MM
€ 2.00
15
0832221047
ref: 15
08322-01047
WASHER 4MM
€ 2.00
