FRAME COVER (MODEL L)
DR100 1989 (K) USA (E03)

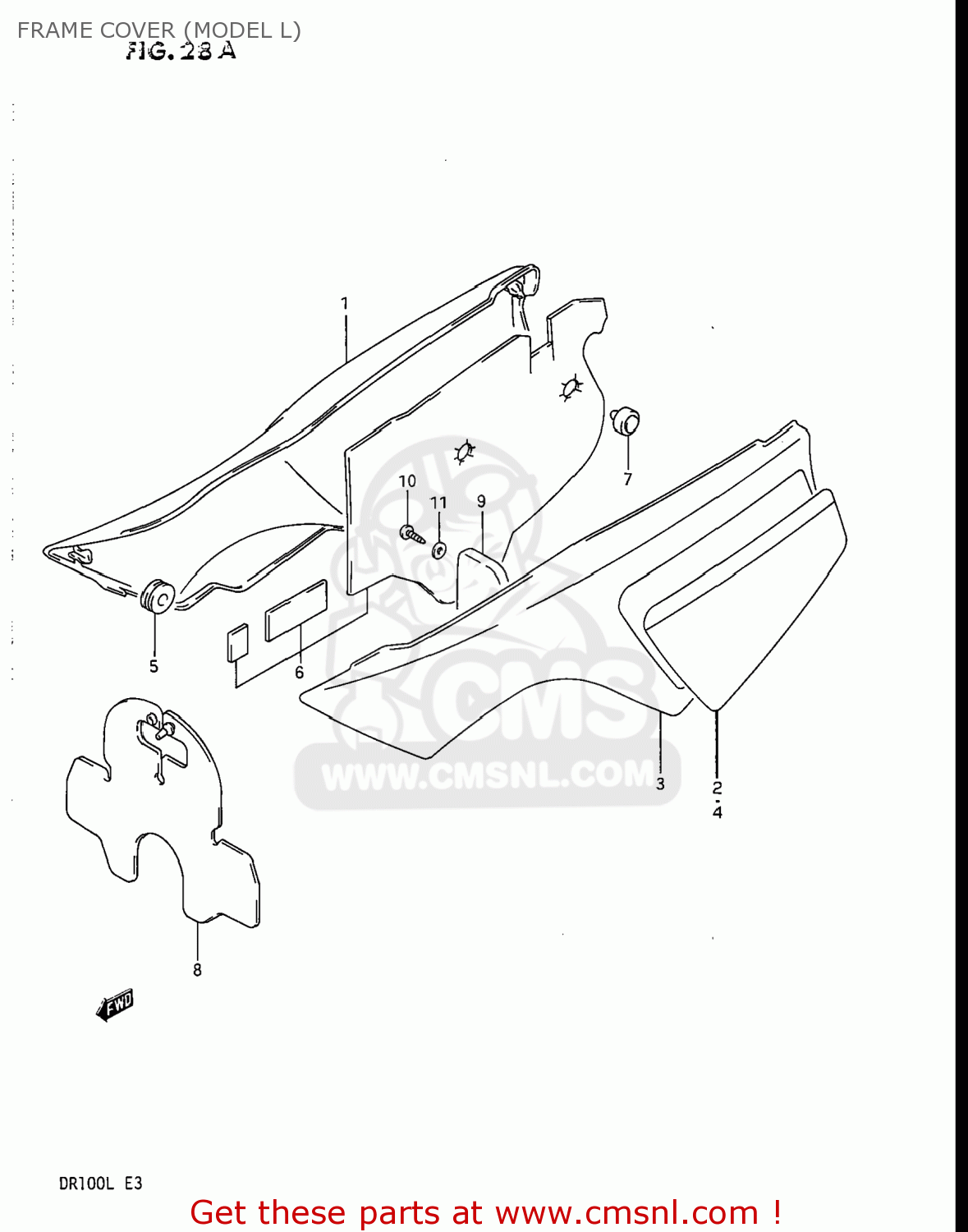

Frame cover (model l) diagram DR100 1989 (K) USA (E03)
FRAME COVER (MODEL L) DR100 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
471100528030H
ref: 1
47111-05250-13L
COVER,FRAME,RIGHT
€ 49.50
2
68135052203SE
ref: 2
TAPE,FRAME COVER,RIGHT
€ 13.00
3
472100528030H
ref: 3
47211-05251-13L
COVER,FRAME,LEFT
€ 31.00
4
68145052203SE
ref: 4
TAPE,FRAME COVER,LEFT
€ 12.00
5
0932008018
ref: 5
CUSHION
€ 4.00
6
4710005851
ref: 6
HEAT SHIELD SET,FRAME
€ 27.00
7
0932110007
ref: 7
CUSHION
€ 4.50
8
4715705250
ref: 8
MUD FLAP,FRONT
€ 9.50
9
4721905260
ref: 9
MUD GUARD,AIR CLEANER
€ 0.00
10
0351104086
ref: 10
03511-04083
SCREW
€ 2.00
11
0832221047
ref: 11
08322-01047
WASHER 4MM
€ 2.00
