DR125S 1983 (D)

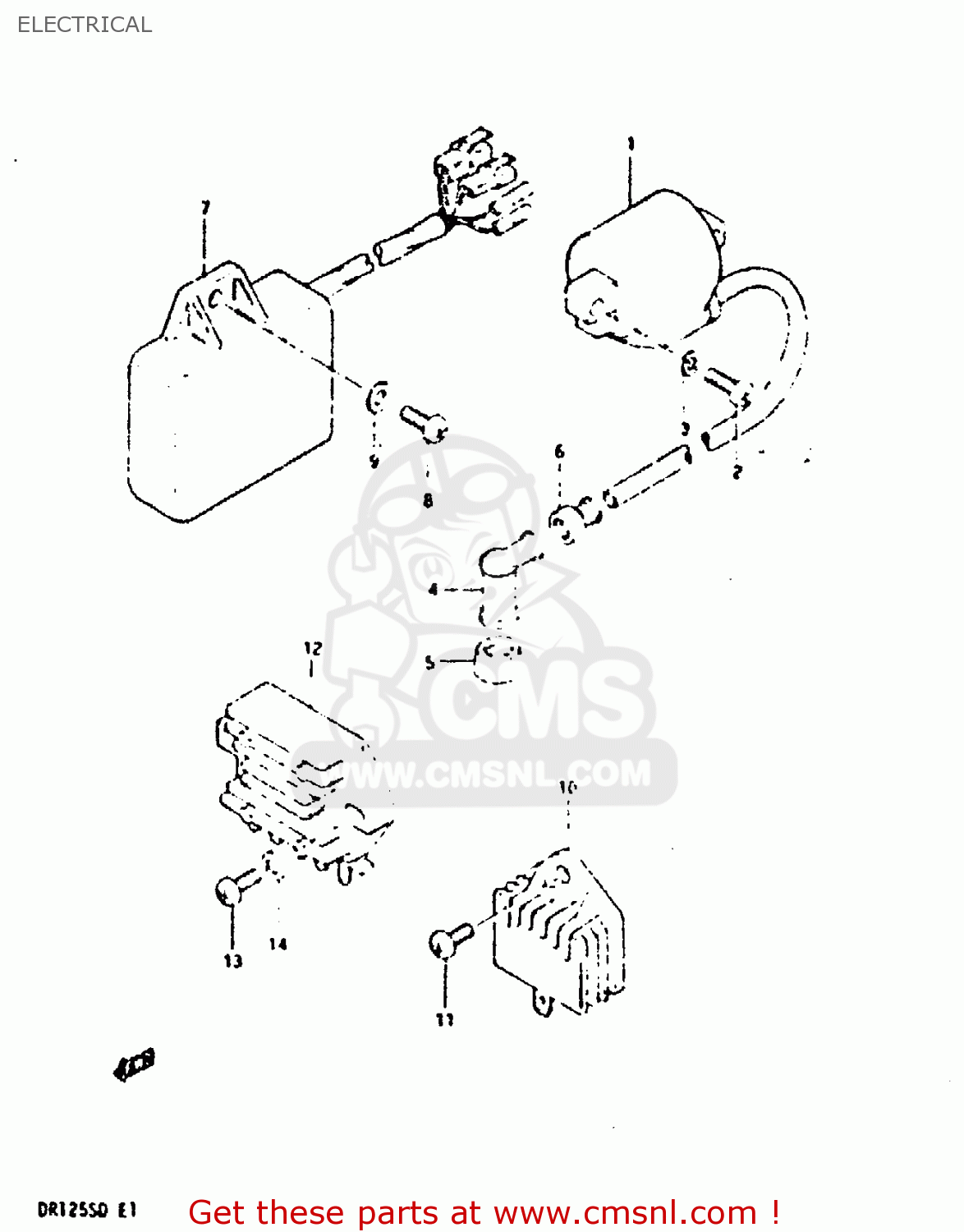

Electrical diagram DR125S 1983 (D)
ELECTRICAL DR125S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
3341005210
ref: 1
COIL ASSEMBLY,IGNITION
€ 90.00
2
0211206208
ref: 2
SCREW
€ 2.00
3
0832121068
ref: 3
LOCK WASHER
€ 2.50
4
3351022010
ref: 4
CAP ASSY,SPARK PLUG
€ 16.50
5
3354138210
ref: 5
SEAL,SPARK PLUG
€ 7.00
6
3354298000
ref: 6
SEAL,SPARK PLU
€ 4.50
7-1
NOTUSED
ref: 7-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-2
3290005220
ref: 7-2
E2, E4, E15, E17, E1
CDI UNIT
€ 224.00
8
0211206168
ref: 8
SCREW
€ 2.50
9
0832221068
ref: 9
WASHER
€ 2.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
NOTUSED
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
3280044130
ref: 12
E2, E4, E15, E17, E1
RECTIFIER ASSEMBLY
€ 235.00
13
0211206208
ref: 13
SCREW
€ 2.00
14
0832221068
ref: 14
WASHER
€ 2.00
