FRONT FORK
DR125S 1983 (D)

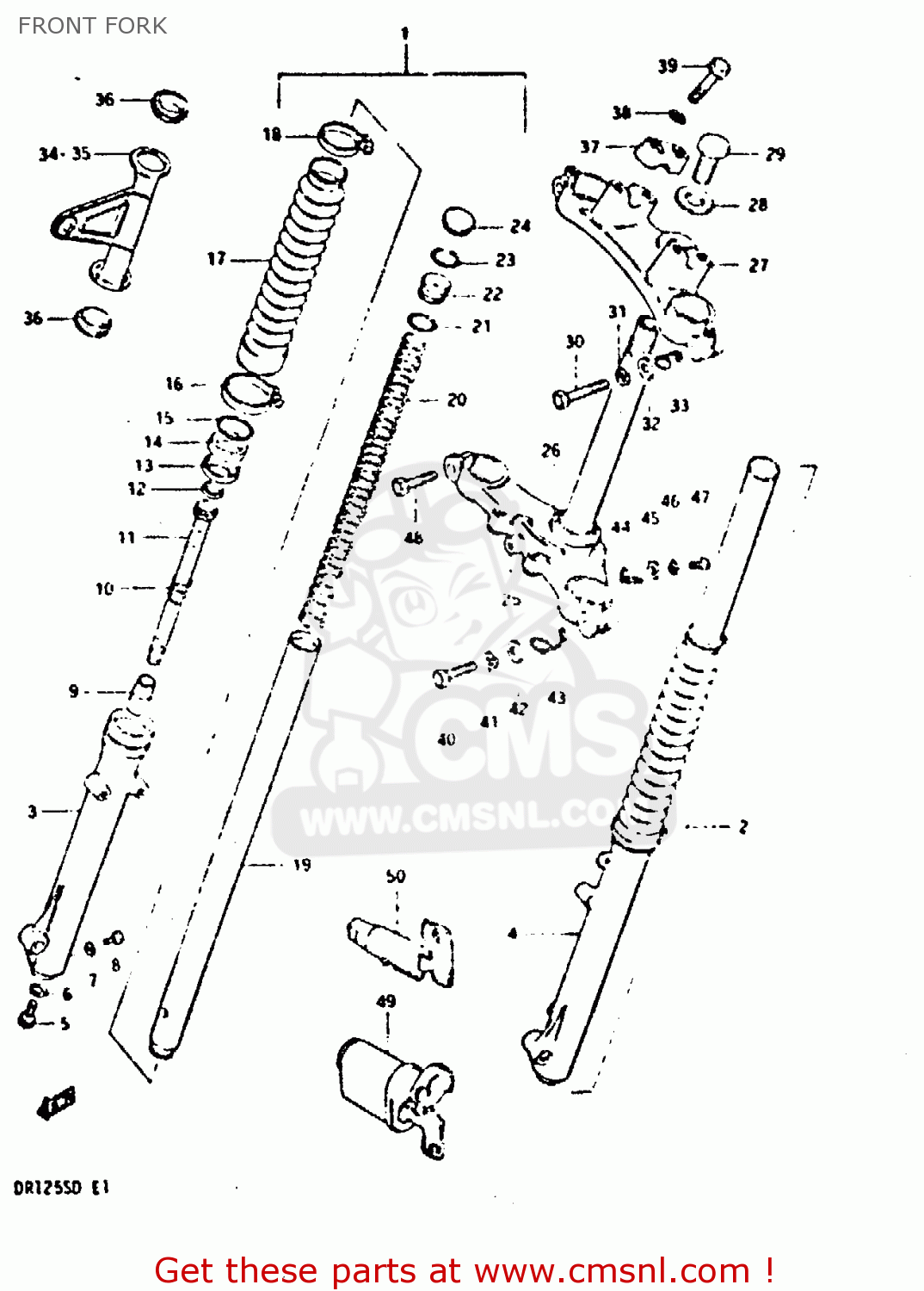

Front fork diagram DR125S 1983 (D)
FRONT FORK DR125S 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
5110305210
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 332.50
2
5110405210
ref: 2
DAMPER ASSEMBLY,LEFT
€ 369.00
3
5113048500
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 163.00
4
5114048500
ref: 4
TUBE,FORK,LEFT,OUTER
€ 163.00
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
GASKET (NAS)
€ 4.00
7
5118331030
ref: 7
GASKET,DRAIN,PLUG (NAS)
€ 4.00
8
0110706088
ref: 8
BOLT
€ 2.50
9
5119548000
ref: 9
PIECE,OIL LOCK
€ 8.50
10
5117736030
ref: 10
SPRING,REBOUND
€ 4.50
11
5114605210
ref: 11
CYLINDER,FRONT FORK
€ 0.00
12
5118633130
ref: 12
RING, PISTON
€ 0.00
13
5116805210
ref: 13
SPACER
€ 3.00
14
5115348500
ref: 14
OIL SEAL,FRONT FORK
€ 8.00
15
5115648500
ref: 15
CIRCLIP,FORK OIL SEAL
€ 2.50
16
0940258306
ref: 16
CLAMP
€ 5.00
17
5157105210
ref: 17
BOOT
€ 50.50
18
5157548500
ref: 18
BAND
€ 9.00
19
5111048500
ref: 19
TUBE,FORK,INNER
€ 176.00
20
5117105210
ref: 20
SPRING,FRONT FORK
€ 18.50
21
5118133131
ref: 21
O RING
€ 5.00
22
5117548500
ref: 22
SEAT,SPRING
€ 9.00
23
5116948500
ref: 23
RING,STOPPER
€ 2.00
24
5118948500
ref: 24
CAP,FRONT FORK
€ 6.00
25
514100523008C
ref: 25
STEM, STEERING
€ 162.50
26
5162133001
ref: 26
RACE,STEERING OUTER LWR
€ 10.00
27
513110521008C
ref: 27
HEAD,STEERING STEM
€ 102.00
28
5135622012
ref: 28
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
29
5135120010
ref: 29
BOLT,FORK INNER TUBE
€ 25.00
30
5145127431
ref: 30
BOLT
€ 4.50
31
0832121108
ref: 31
LOCK WASHER
€ 2.00
32
0832221108
ref: 32
WASHER
€ 2.50
33
5145505210
ref: 33
GUIDE,CABLE
€ 0.00
34
5153005210
ref: 34
BRACKET,HEADLAMP,RIGHT
€ 23.00
35
5154005210
ref: 35
BRACKET,HEADLAMP,LEFT
€ 23.00
36
5155305210
ref: 36
CUSHION,HEADLAMP BRACKET
€ 3.50
37
562114668008C
ref: 37
HOLDER,HANDLEBAR
€ 9.50
38
0832121088
ref: 38
LOCK WASHER
€ 2.00
39
5132105200
ref: 39
BOLT,HANDLE HOLDER
€ 0.00
40
0110712458
ref: 40
BOLT 12X45
€ 5.50
41
0832121128
ref: 41
WASHER,LOCK 12
€ 2.50
42
0832211128
ref: 42
WASHER
€ 2.00
43
5145205210
ref: 43
CLIP,CABLE
€ 0.00
44
5145248500
ref: 44
CLIP
€ 6.00
45
0832221068
ref: 45
WASHER
€ 2.00
46
0832121068
ref: 46
LOCK WASHER
€ 2.50
47
0211206128
ref: 47
SCREW 6X12
€ 2.00
48
0110412408
ref: 48
BOLT
€ 3.00
49
NOTUSED
ref: 49
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
50
NOTUSED
ref: 50
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
