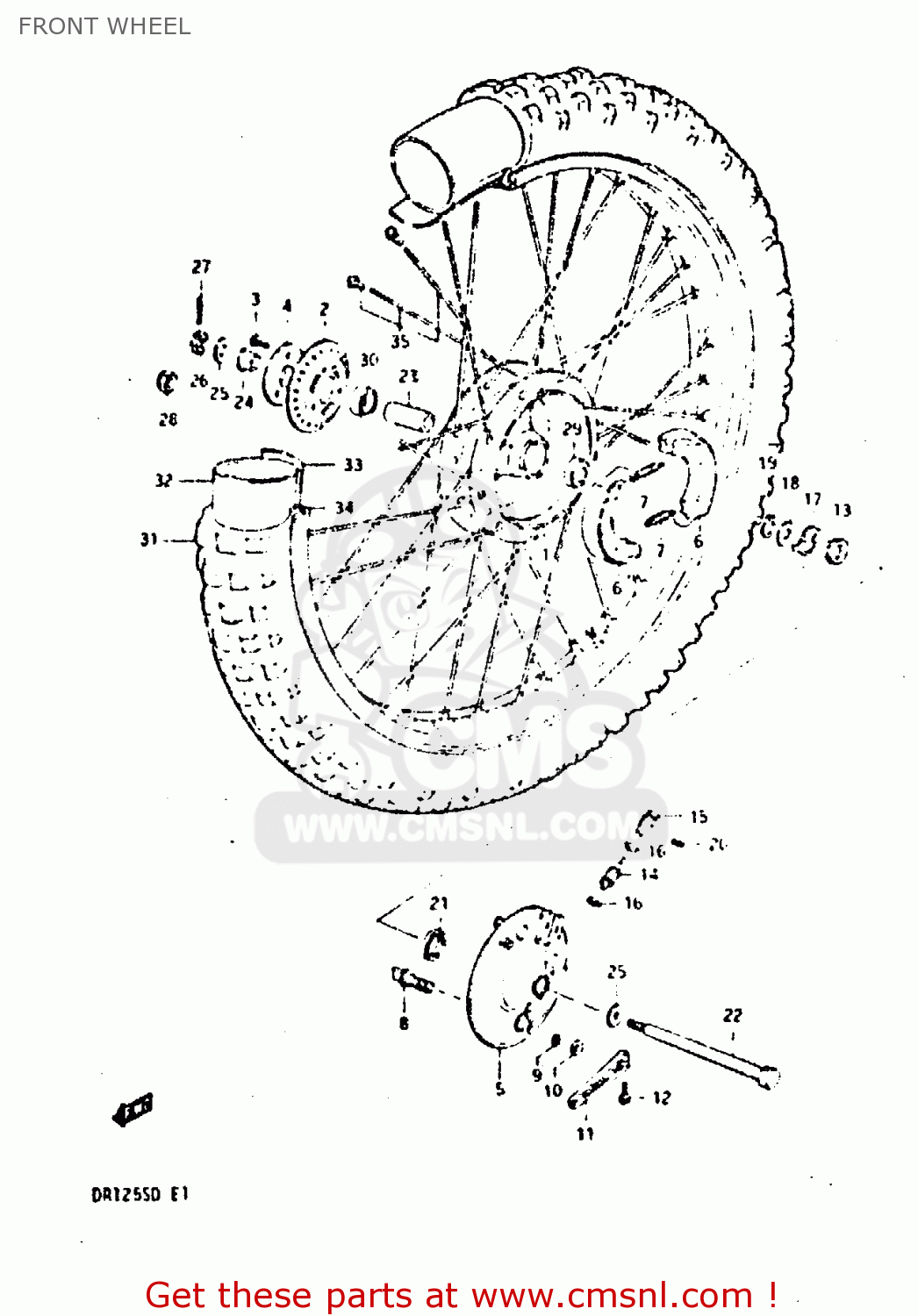

FRONT WHEEL

ref

part #

description

quantity

1

5411029300
ref: 1

HUB,FR WHEEL

€ 156.50

2

5411238200
ref: 2

FLANGE,FR HUB,R

€ 15.50

3

0151706168
ref: 3

BOLT

€ 1.50

4

5415138200
ref: 4

PLATE,FRONT HUB BEARING

€ 5.00

5

5421048501
ref: 5

PANEL,FRONT HUB

€ 150.50

6

5441007002
ref: 6

SHOE,BRAKE

€ 35.00

7

0944307001
ref: 7

SPRING(L:34)

€ 2.50

8

5444148501
ref: 8

CAM,FRONT BRAKE

€ 10.00

9

0928014003
ref: 9

O-RING (D:2.4 ID:13.8)

€ 3.50

10

0916014001
ref: 10

WASHER (14.5X22X1.6)

€ 2.50

11

5445132400
ref: 11

LEVER,FRONT BRAKE CAM

€ 48.00

12

0151706258
ref: 12

BOLT

€ 2.50

13

5461128402
ref: 13

GEAR,SPEEDOMETER

€ 26.00

14

5462128401
ref: 14

PINION,SPEEDOMETER

€ 15.50

15

5463201001
ref: 15

BUSH,METER GEAR OUTER

€ 9.00

16

0916005001
ref: 16

WASHER (5.1X9X0.4)

€ 2.00

17

5466129300
ref: 17

DRIVER,SPEEDOMETER GEAR

€ 4.00

18

0916018002
ref: 18

WASHER(18.5X24X1)

€ 2.00

19

0833111189
ref: 19

CIRCLIP

€ 2.00

20

0913403101
ref: 20

SCREW

€ 1.50

21

0928543001
ref: 21

OIL SEAL (43X58X7)

€ 10.00

22

5471116503
ref: 22

AXLE,FRONT

€ 29.50

23

0918012041
ref: 23

SPACER (12.6X19X52)

€ 4.50

24

5474141100
ref: 24

SPACER,FR AXLE,R

€ 10.00

25

0832211128
ref: 25

WASHER

€ 2.00

26

0831431128
ref: 26

NUT 12MM

€ 2.00

27

0411130308
ref: 27

COTTER PIN

€ 1.50

28

NOTUSED
ref: 28

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

29

0814362017
ref: 29

BEARING

€ 11.50

30

0812362017
ref: 30

BEARING, RH

€ 15.00

31

5510005210
ref: 31
IRC

TIRE,FRONT

€ 0.00

32

5520016510
ref: 32

TUBE

€ 32.50

33

5526116510
ref: 33

PROTECTOR,WHEEL,INNER

€ 5.00

34-1

5531148020
ref: 34-1
MODEL Z

RIM,FR WHEEL(1.60X21)

€ 136.00

34-2

5531105820
ref: 34-2
MODEL D

RIM, WHEEL (1.60*21)

€ 0.00

35

5532005200
ref: 35

SPOKE ASSY,FR WHEEL

€ 35.00

all assemblies
